Timing Belt — Camshaft Timing Belt (CD17) (Cont'd)

EM-204prose procedure

Applies to CD17 (diesel) engine camshaft timing belt. Inspection refers to EM-208 (CD20 engine).

Continued from EM-203

Camshaft Timing Belt — CD17 (Cont'd)

Removal (Cont'd)

  1. 2

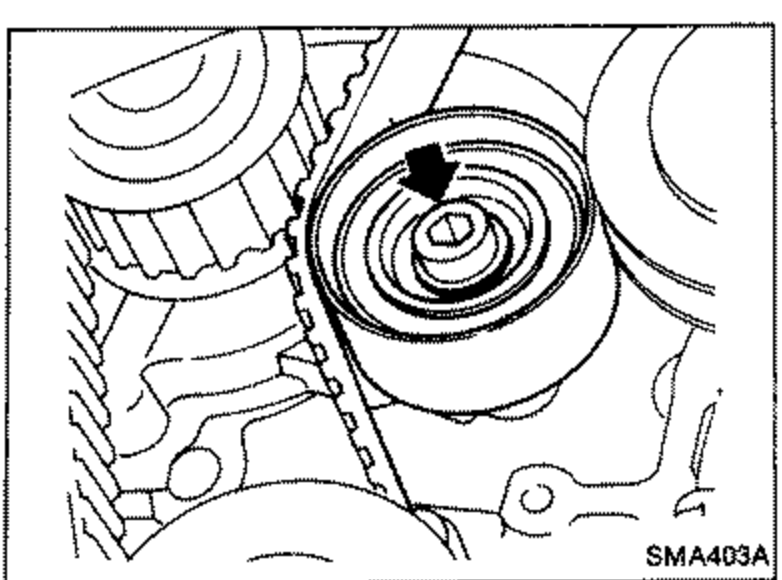

    Remove idler pulley.
    Photo showing the idler pulley being removed from the timing belt assembly. A curved arrow indicates the loosening/rotation direction at the idler pulley.
    SMA403A
  2. 3

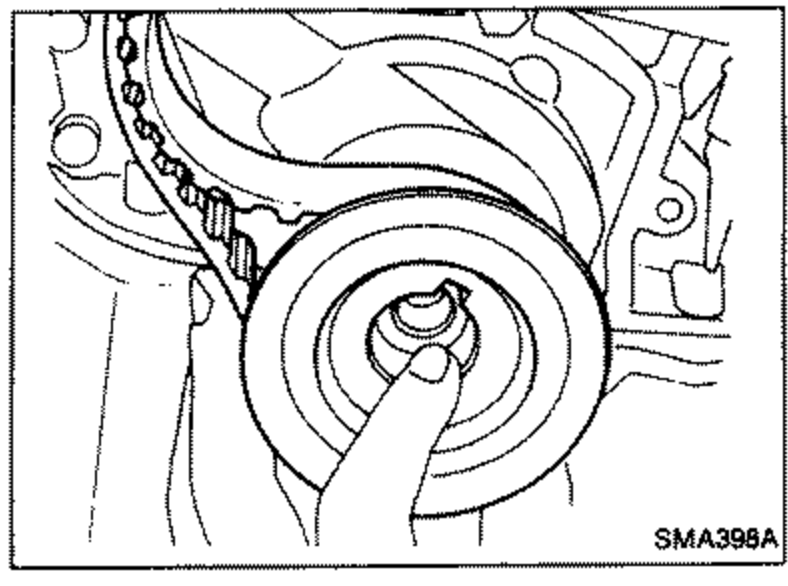

    Remove timing belt with crankshaft sprocket.
    Photo showing the timing belt being removed together with the crankshaft sprocket.
    SMA398A

INSPECTION

Refer to page EM-208. (CD20 engine)

Installation

  1. 1

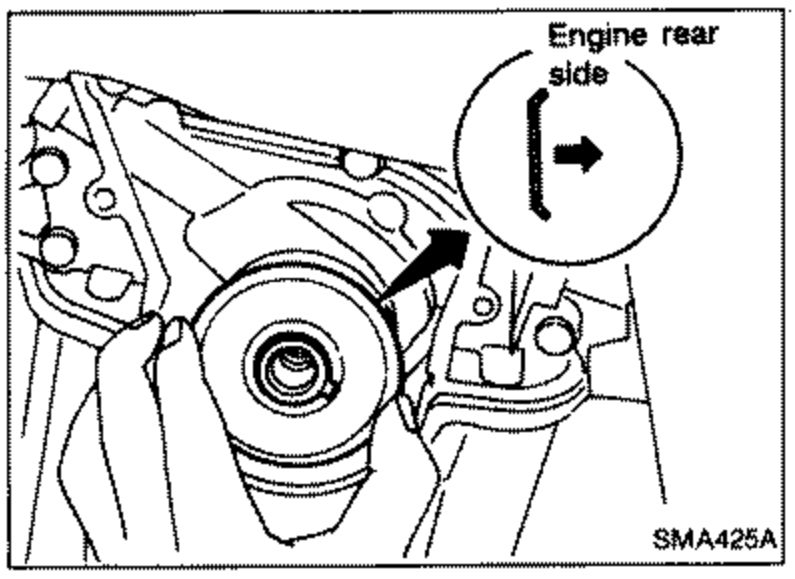

    Install sprocket plate in correct direction.
    Photo showing the sprocket plate being installed in the correct direction. An arrow labeled 'Engine rear side' indicates orientation toward the rear of the engine.
    SMA425A
  2. 2

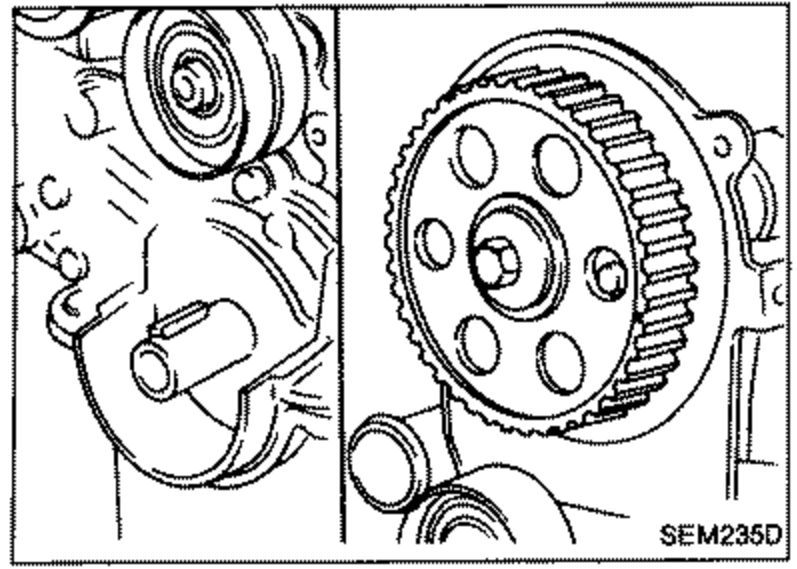

    Confirm that No. 1 piston is set at T.D.C. on its compression stroke.
    Two photos: left shows the timing belt/sprocket area; right is a close-up of the camshaft sprocket. Used to confirm No. 1 piston is set at T.D.C. on its compression stroke.
    SEM235D
