Nissan 100NX N14 silhouetteN14

Camshaft Timing Belt — CD20 (Cont'd)

EM-207prose procedure

Applies to CD20 engine.

Continued from EM-206

TIMING BELT

Camshaft Timing Belt — CD20 (Cont'd)

Removal

  1. 1
    Set No. 1 cylinder at T.D.C. on its compression stroke.

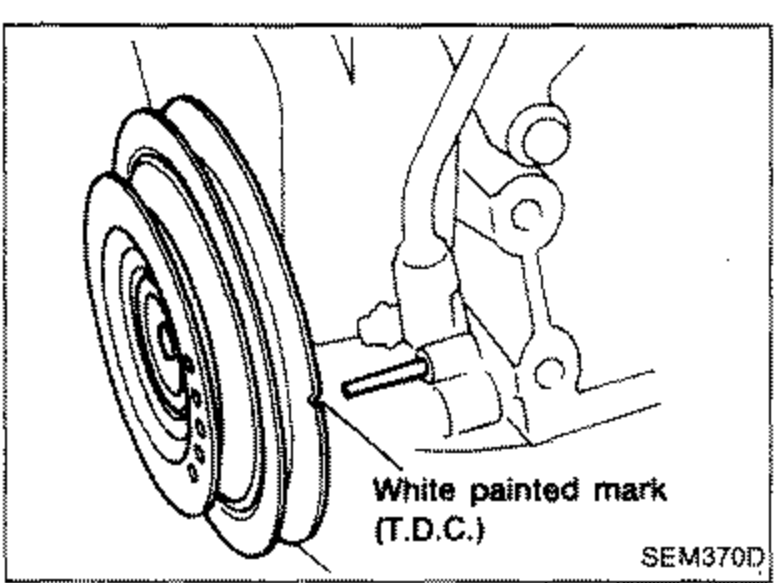

    Crankshaft pulley/sprocket with a leader line pointing to the 'White painted mark (T.D.C.)' alignment mark used to set No. 1 cylinder at top dead center on its compression stroke.
    SEM370D
  2. 2
    Remove timing belt.

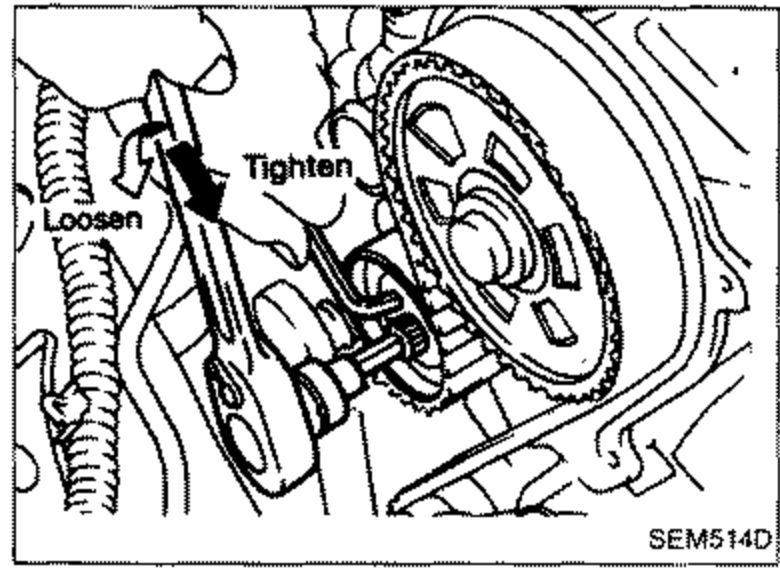

    Timing belt tensioner area with arrows labeled 'Tighten' and 'Loosen' indicating the direction to turn the tensioner pulley counter-clockwise to loosen, then tighten the bolt; camshaft sprocket visible at right.
    SEM514D
  3. 2-(1)
    Loosen tensioner pulley bolt, turn tensioner pulley counter-clockwise then tighten bolt.
  4. 2-(2)
    Remove camshaft sprocket plate.
  5. 3
    Remove idler pulley.

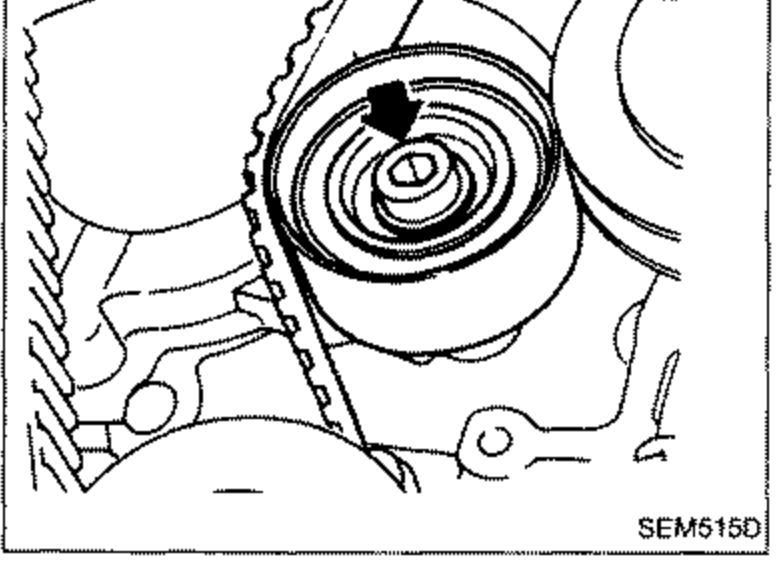

    Idler pulley shown with a curved arrow indicating its removal direction.
    SEM515D
  6. 4
    Remove timing belt with crankshaft sprocket.

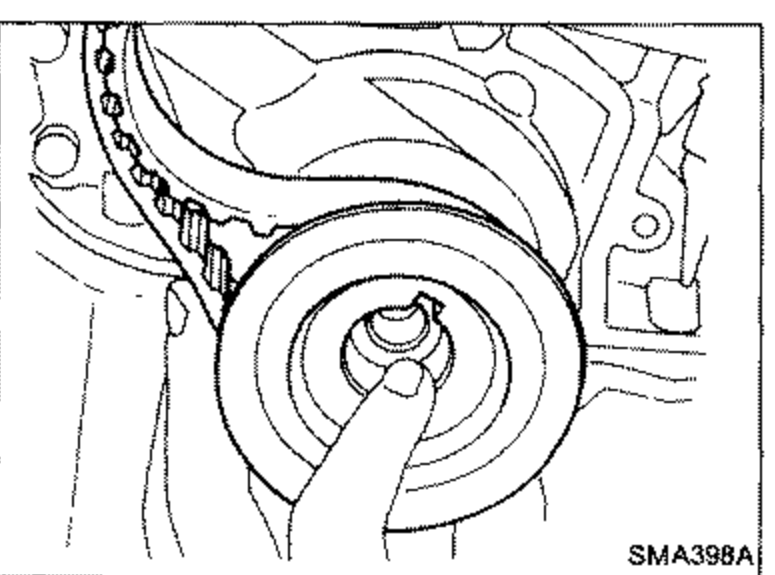

    Crankshaft sprocket and timing belt at the front of the engine, illustrating removal of the timing belt with the crankshaft sprocket.
    SMA398A
