Intake Manifold - Removal (Cont'd) / Disassembly and Assembly

EM-102prose procedure

SR20DET-specific steps 10 and 11 (air regulator/water hoses, rear adjusting rod). Intake manifold removal order figures differ between SR20DE (SEM080D) and SR20DET (SEM837D). Disassembly section split into SR20DE and SR20DET subsections.

Continued from EM-101

Removal (Cont'd)

  1. 10
    Remove the following hoses. (SR20DET only): Air regulator hoses; Water hoses.

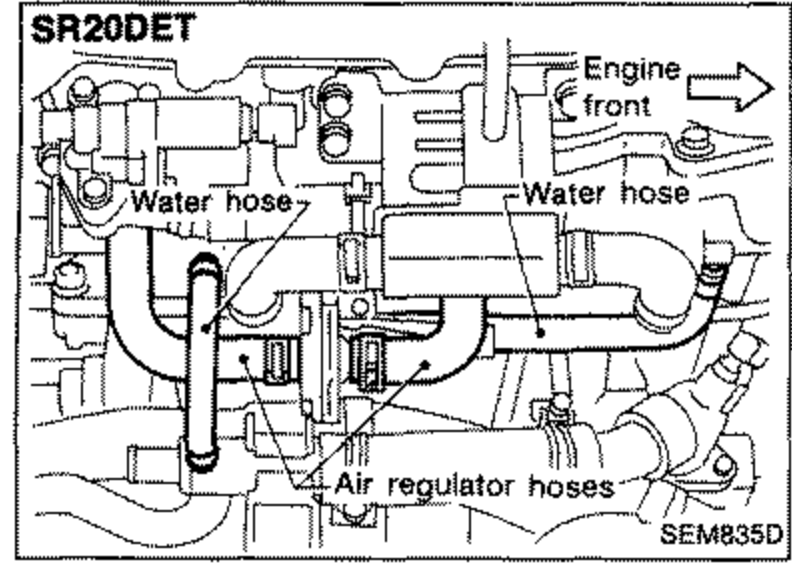

    SR20DET engine showing the air regulator hoses and water hoses to be removed. Labels 'Water hose', 'Air regulator hoses', and 'Engine front' with arrow.
    SEM835D
  2. 11
    Remove rear adjusting rod. (SR20DET only)

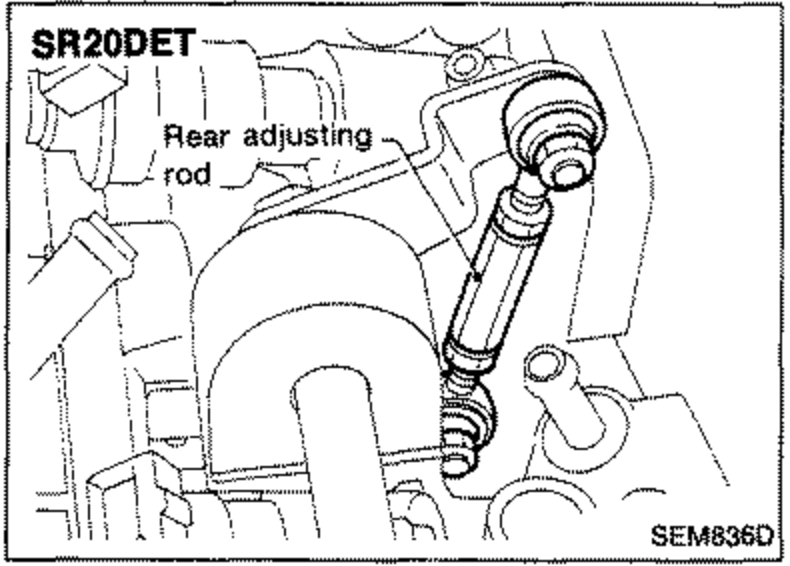

    SR20DET engine showing the rear adjusting rod to be removed. Label 'Rear adjusting rod'.
    SEM836D
  3. 12
    Remove intake manifold.

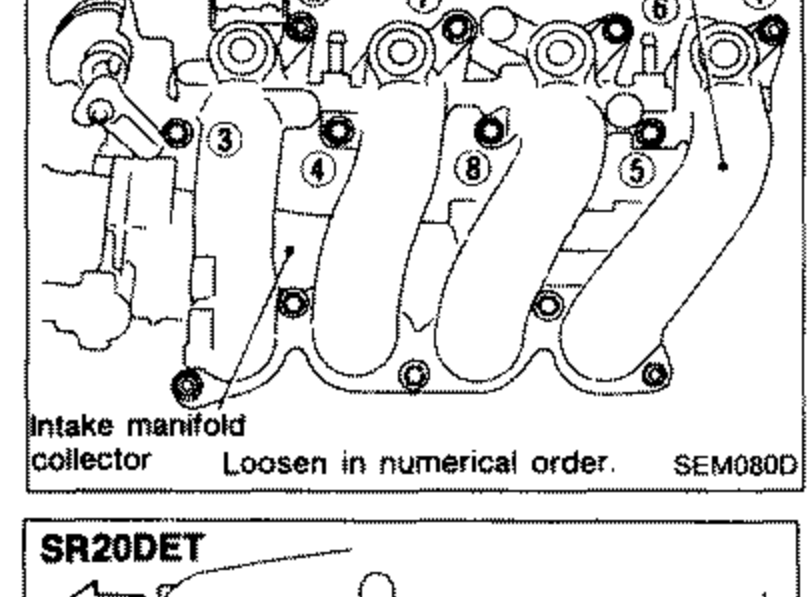

    SR20DE intake manifold with circled numbers 1 through 8 indicating the bolt loosening order. Labels 'Intake manifold', 'Intake manifold collector', and 'Loosen in numerical order.'
    SEM080D

Disassembly and Assembly

SR20DE

Disassembly and Assembly - SR20DE

  1. 1
    Remove intake manifold collector.

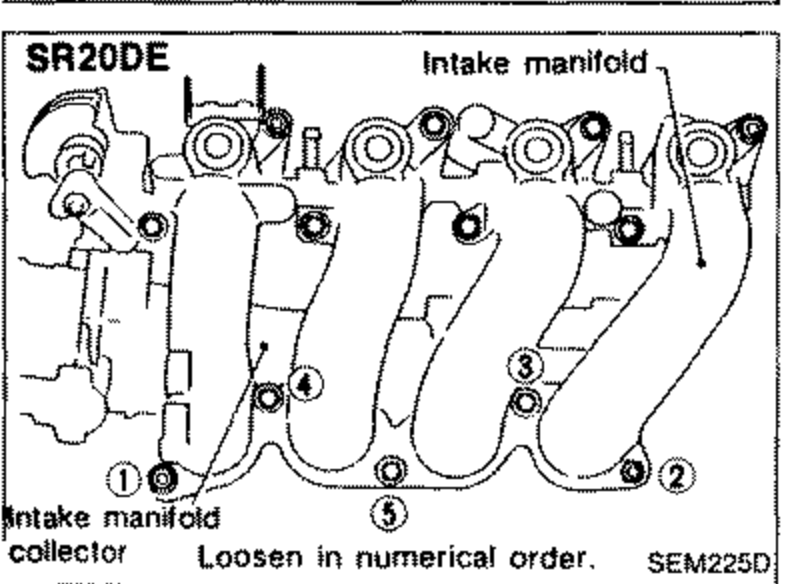

    SR20DE intake manifold collector with circled numbers 1 through 5 indicating bolt loosening order. Labels 'Intake manifold', 'Intake manifold collector', and 'Loosen in numerical order.'
    SEM225D
