CYLINDER HEAD

EM-112prose procedure

Steps 2 and 3 (exhaust manifold cover and exhaust manifold) are SR20DE only. Separate manifold figures for SR20DE and SR20DET.

Continued from EM-111

Disassembly (Cont'd)

Cylinder Head Disassembly (continued)

  1. 2
    Remove exhaust manifold cover. (SR20DE only)

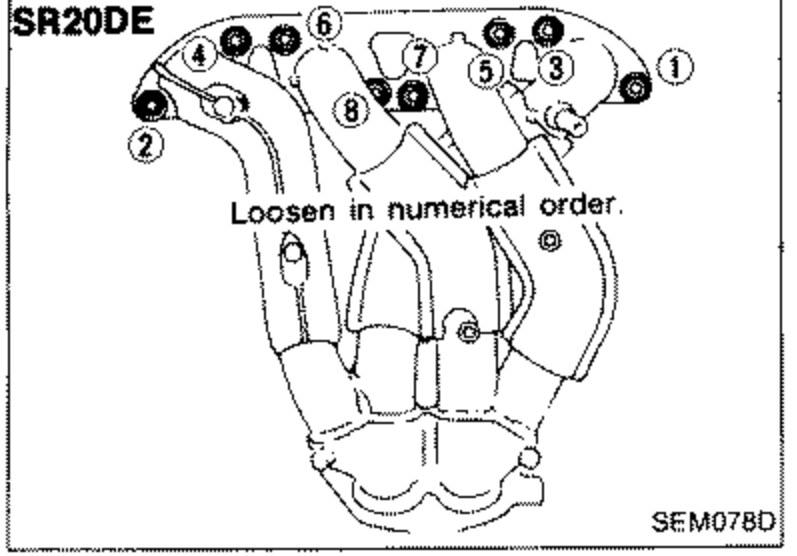

    SR20DE exhaust manifold with bolt loosening sequence numbered 1 through 6. Note: 'Loosen in numerical order.'
    SEM078D
  2. 3
    Remove exhaust manifold. (SR20DE only)
    Loosen in numerical order.
  3. 4
    Remove intake manifold.
    Loosen in numerical order.

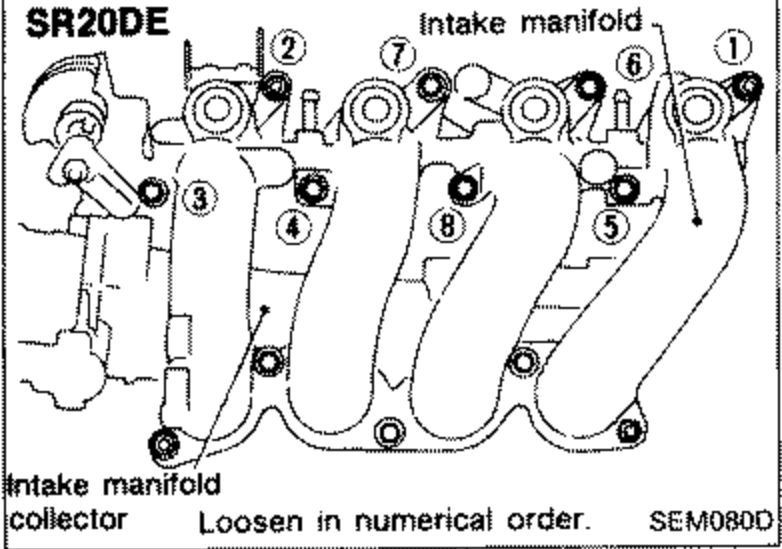

    SR20DE intake manifold and intake manifold collector with bolt loosening sequence numbered 1 through 8. Callouts label intake manifold and intake manifold collector. Note: 'Loosen in numerical order.'
    SEM080D
