Compression Pressure

EM-200prose procedure

Applies to CD20 (diesel) engine.

Continued from EM-199

Compression Pressure (reassembly)

  1. 9
    Replace nozzle gaskets and re-install injection nozzles.
    New nozzle gaskets must be installed in the direction shown.

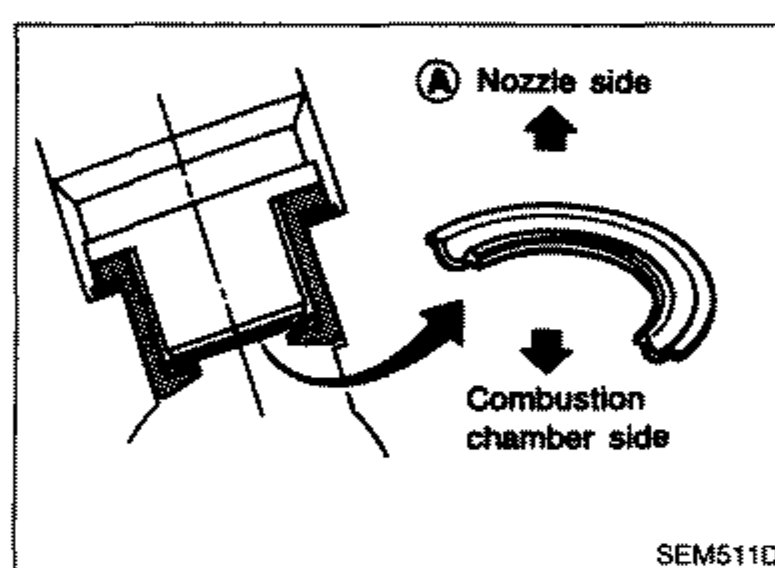

    Diagram of an injection nozzle gasket showing correct installation direction. A 'Nozzle side' (labeled A) faces up and the 'Combustion chamber side' faces down, with a curved arrow indicating the orientation in which the new gasket must be installed.
    SEM511D
  2. 10
    Install spill tube by holding nozzle holder.

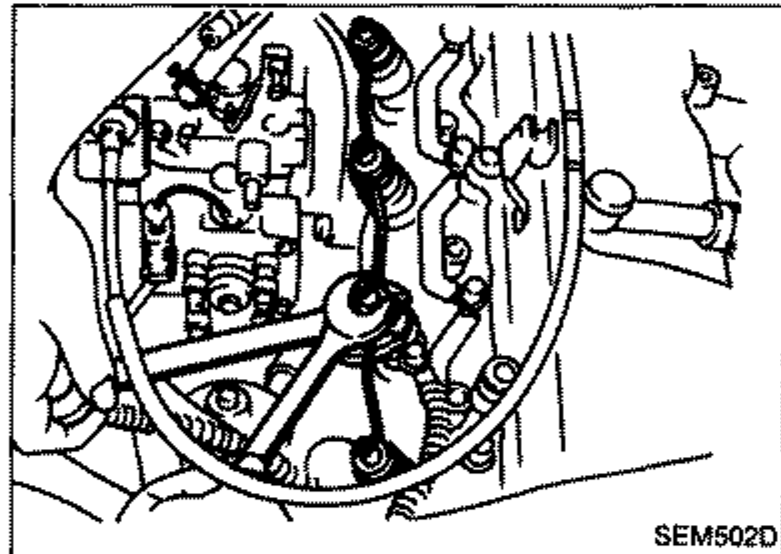

    Photo of the engine showing the spill tube being installed while holding the nozzle holder.
    SEM502D
  3. 11
    Install injection tubes using two wrenches as shown.

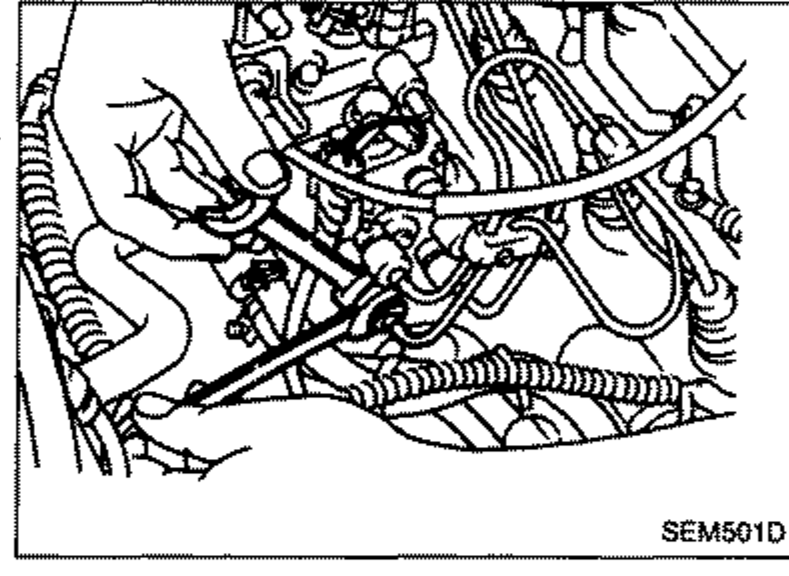

    Photo of the engine showing injection tubes being installed using two wrenches.
    SEM501D
Nozzle to cylinder headStep 9
59 - 69N·m
Spill tube nutStep 10
39 - 49N·m
Injection tubesStep 11
22 - 25N·m
