ACCEL-DRUM UNIT (SR20DE)

EM-106prose procedure

Applies to SR20DE.

Continued from EM-105

Accel-Drum Unit Adjustment (continued)

  1. 7
    Turn adjusting screw until it touches stopper lever.
    Adjusting screw and stopper lever detail. Callouts label the adjusting screw (top) and stopper lever (bottom). A curved arrow indicates turning the adjusting screw.
    SEM208D
  2. 8
    Back off accel-drum.
  3. 9
    Turn adjusting screw 3 rotations clockwise.

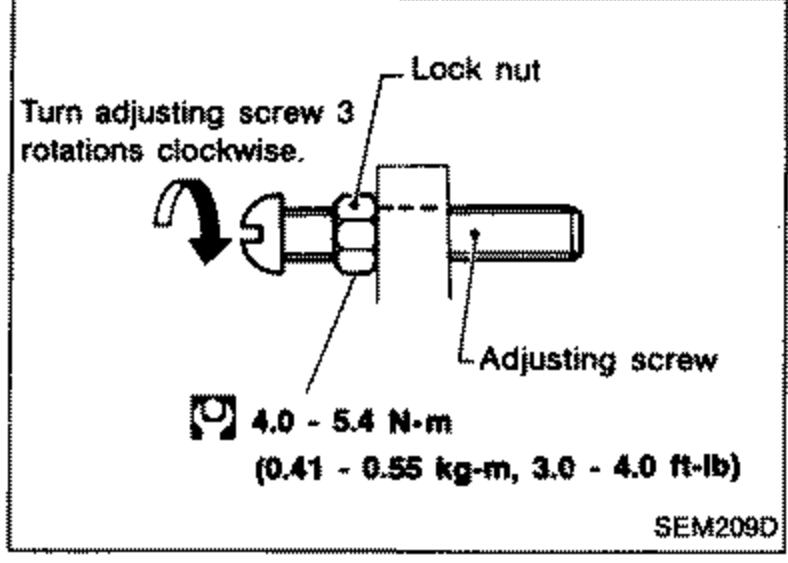

    Lock nut and adjusting screw detail with note 'Turn adjusting screw 3 rotations clockwise.' A curved arrow indicates turning. Tightening torque shown: 4.0 - 5.4 N·m (0.41 - 0.55 kg-m, 3.0 - 4.0 ft-lb).
    SEM209D
  4. 10
    Tighten lock nut.
Lock nut0.41 - 0.55 kg-m, 3.0 - 4.0 ft-lb
4.0 - 5.4N·m
