CYLINDER HEAD

EM-113prose procedure
Continued from EM-112

Disassembly (Cont'd)

Cylinder Head Disassembly (continued)

  1. 5

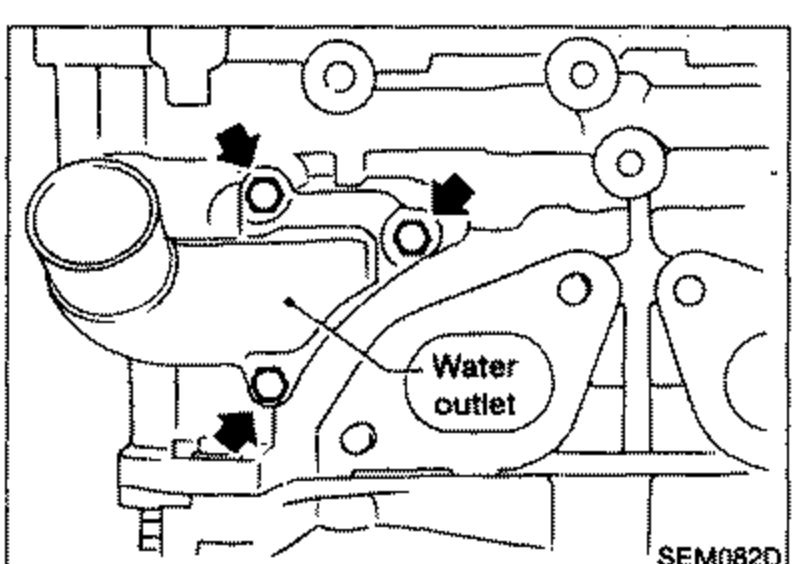

    Remove water outlet.
    Water outlet removal view. Arrows point to bolt locations around the water outlet, which is labeled.
    SEM082D
  2. 6

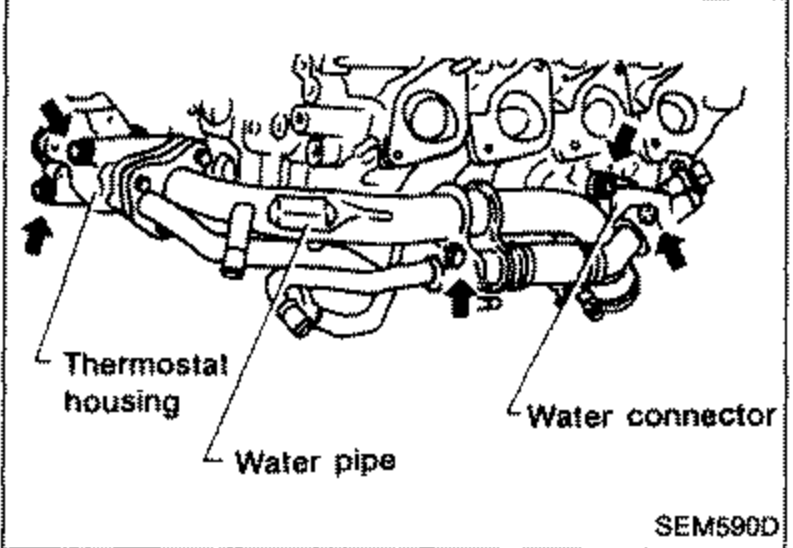

    Remove water connector.
    Thermostat housing and water pipe removal view. Arrows point to fasteners. Callouts label thermostat housing, water pipe, and water connector.
    SEM590D
  3. 7
    Remove thermostat housing with water pipe.
  4. 8

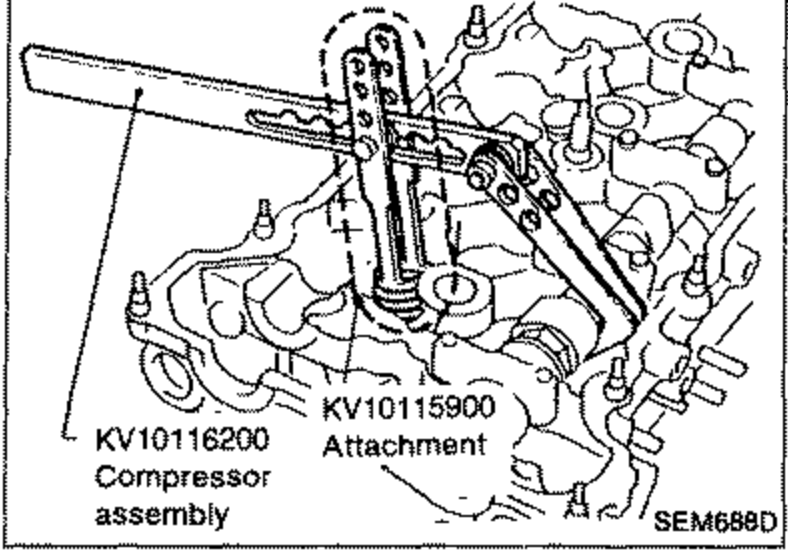

    Remove valve components with Tool.
    Valve component removal using special tool. Callouts label KV10116200 Compressor assembly and KV10115900 Attachment installed on the cylinder head.
    SEM698D
  5. 9

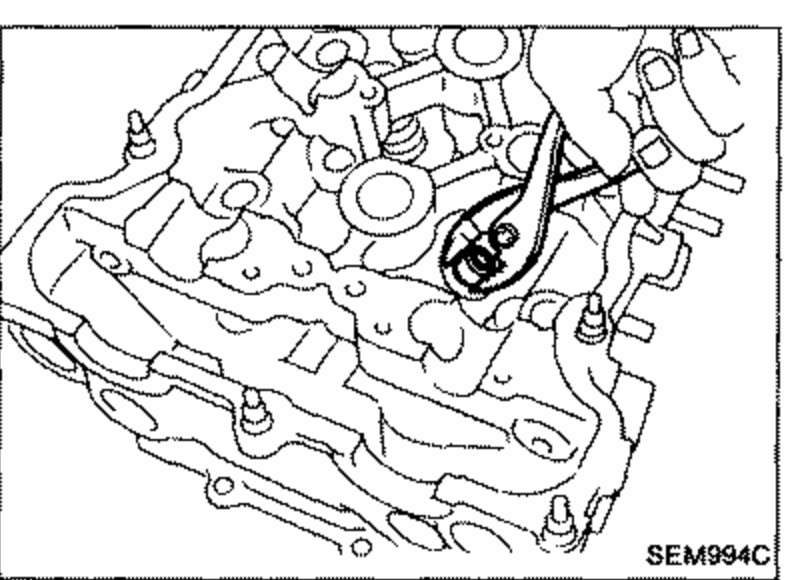

    Remove valve oil seal with a suitable tool.
    Valve oil seal removal using a suitable tool gripping the seal on the cylinder head.
    SEM994C
