Timing Chain - Installation (Cont'd)

EM-32prose procedure

Step 26 differs between GA16DE (install cam sprocket cover gusset and cam sprocket cover, SEM408D/SEM409D) and other engines (install cam sprocket cover only). Step 27 rubber plugs is for engines except GA16DE.

Continued from EM-31

Installation (Cont'd)

  1. 22

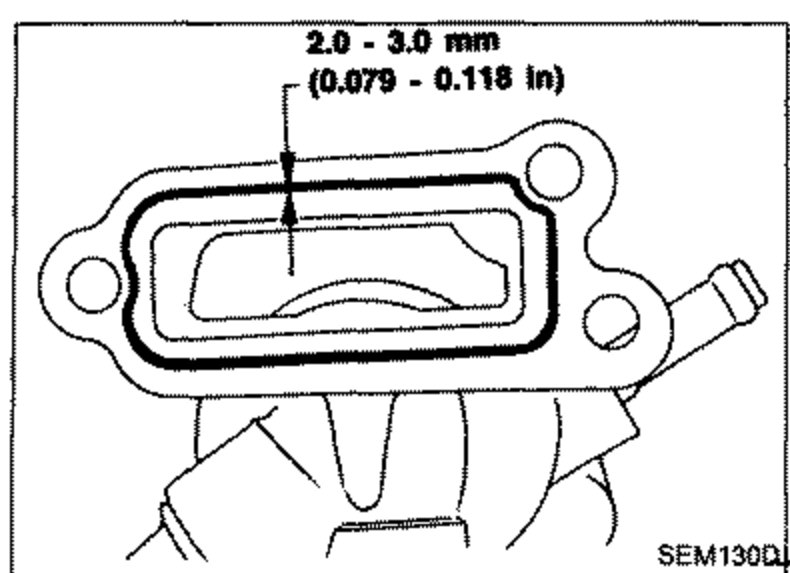

    Apply liquid gasket to thermostat housing.
    Diagram of the thermostat housing mating surface showing the liquid gasket bead applied at 2.0 - 3.0 mm (0.079 - 0.118 in) thickness.
    SEM130D
  2. 23
    Install thermostat housing.
  3. 24
    Install water pump pulley.
  4. 25

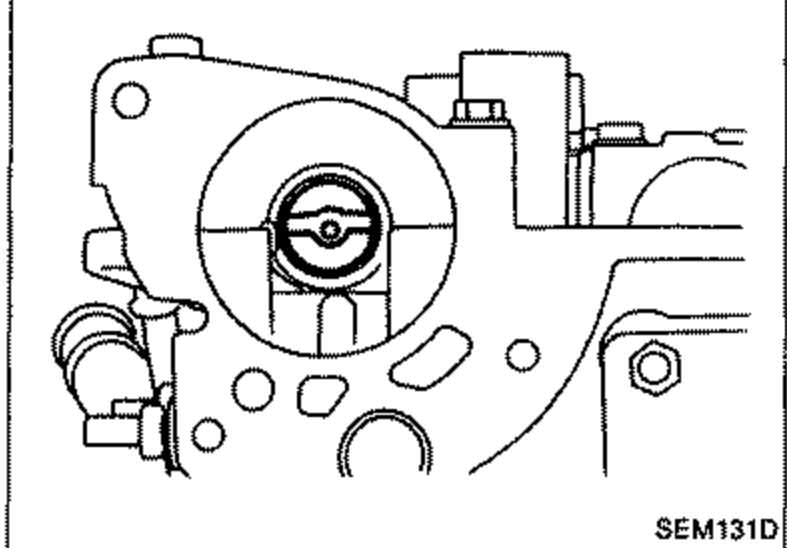

    Install distributor.
    Make sure that position of camshaft is as shown in figure.
    Photo of the distributor mounting area showing the correct camshaft position for distributor installation.
    SEM131D
  5. 26

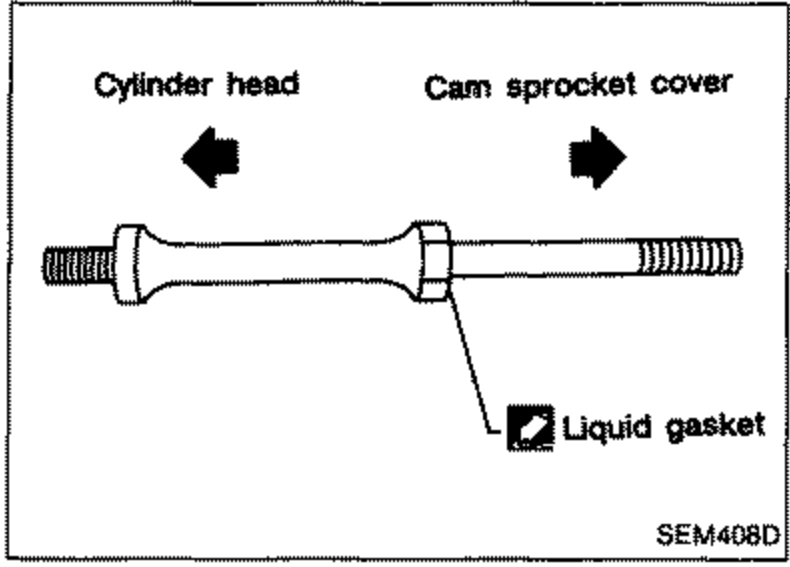

    Install cam sprocket cover (Except for GA16DE) / Install cam sprocket cover gusset and cam sprocket cover (GA16DE).
    Apply liquid gasket to cam sprocket cover gusset.
    Apply liquid gasket to cam sprocket cover.
    Diagram showing the cam sprocket cover gusset between the cylinder head and cam sprocket cover, with arrows and the liquid gasket application point labelled.
    SEM408D
  6. 27

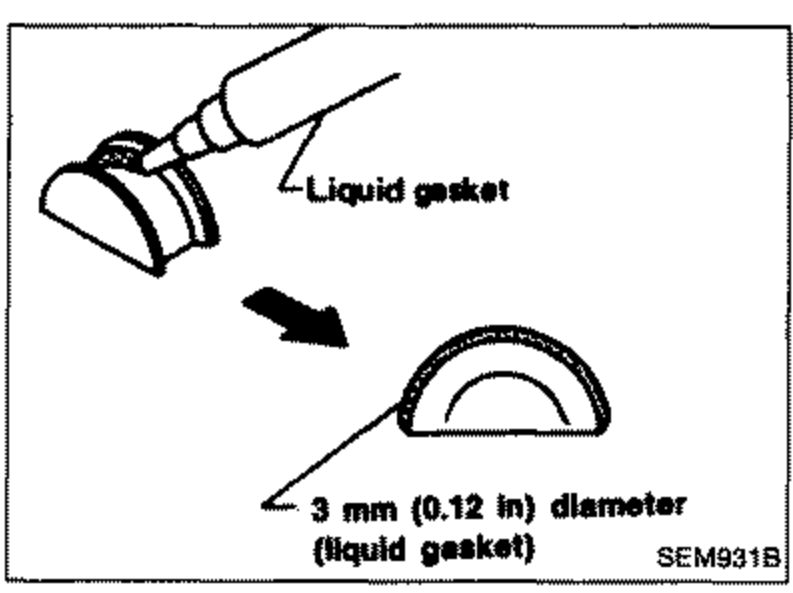

    Install rubber plugs as follows (Except for GA16DE): (1) Apply liquid gasket to rubber plugs.
    Rubber plugs should be installed within 5 minutes of applying liquid gasket.
    Diagram showing a rubber plug with liquid gasket applied; the gasket bead is 3 mm (0.12 in) diameter.
    SEM931B
