Nissan 100NX N14 silhouetteN14

TIMING CHAIN

EM-84prose procedure

SR20DET oil filter / power steering bracket layout shown (SR20DE equivalent on EM-83).

Continued from EM-83

Removal (Cont'd)

  1. 19
    Set No. 1 piston at T.D.C. on the compression stroke by rotating crankshaft.
    Rotate crankshaft until mating mark on camshaft sprocket is set at position indicated in figure at left.

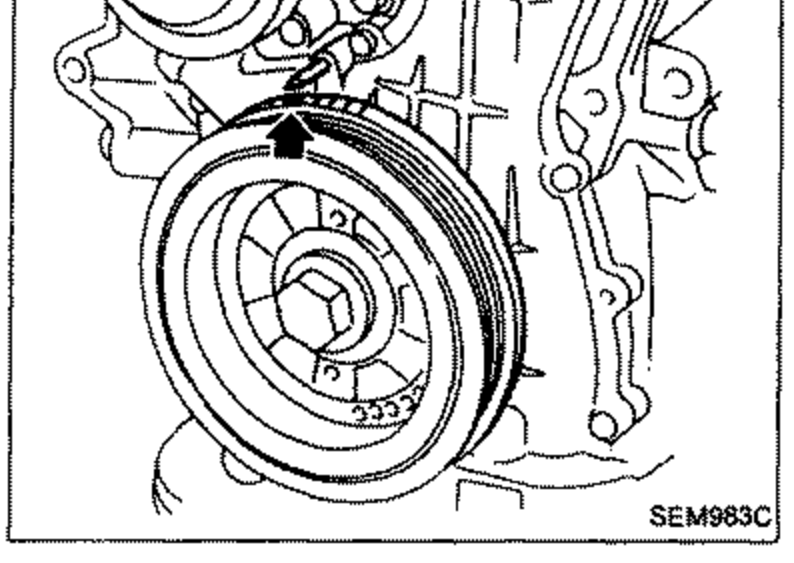

    Crankshaft pulley being rotated to set No. 1 piston at T.D.C. on the compression stroke; arrow indicates rotation direction.
    SEM963C
  2. 20
    Remove chain tensioner.

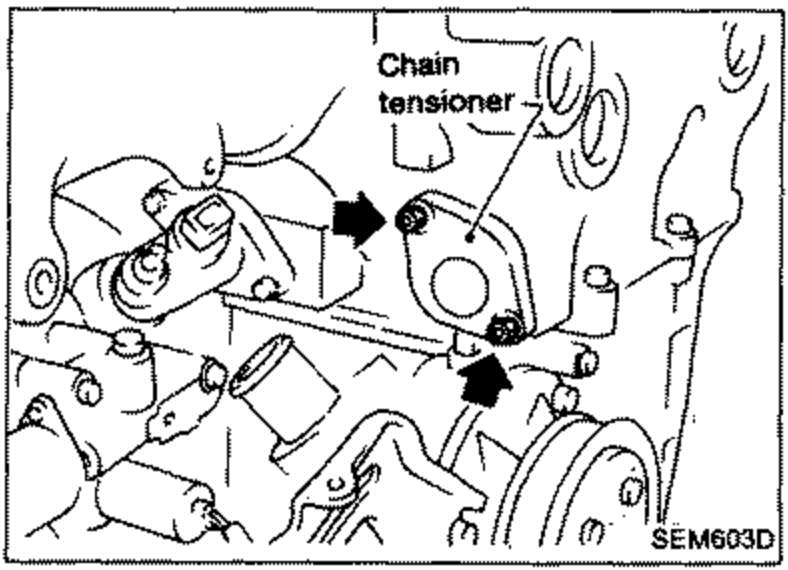

    Chain tensioner being removed; arrows point to its retaining bolts. Labeled 'Chain tensioner'.
    SEM603D
  3. 21
    Remove distributor.
    Do not turn rotor with distributor removed.

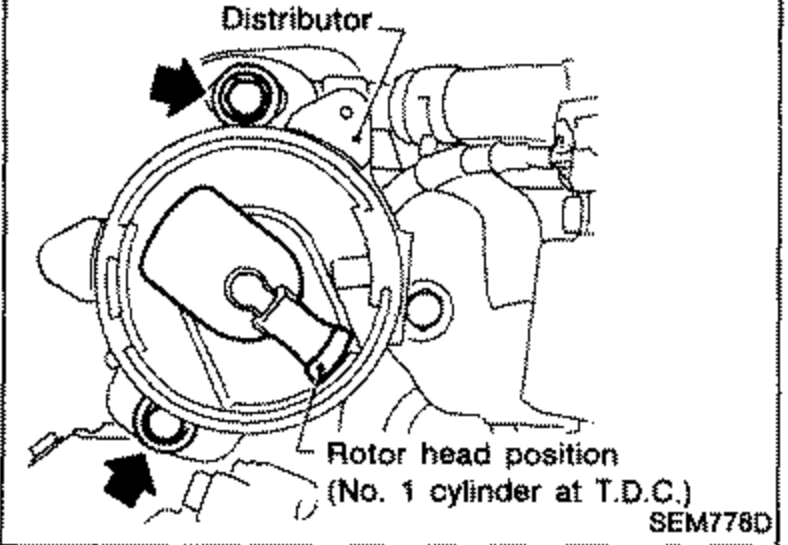

    Distributor removal showing rotor head position with No. 1 cylinder at T.D.C.; arrows point to mounting bolts. Labeled 'Distributor' and 'Rotor head position (No. 1 cylinder at T.D.C.)'.
    SEM778D
