Turbocharger - Disassembly (Cont'd) / Inspection

EM-132prose procedure

SR20DET (turbocharged) engine only.

Continued from EM-131

Disassembly (Cont'd)

  1. 2
    Remove exhaust manifold.

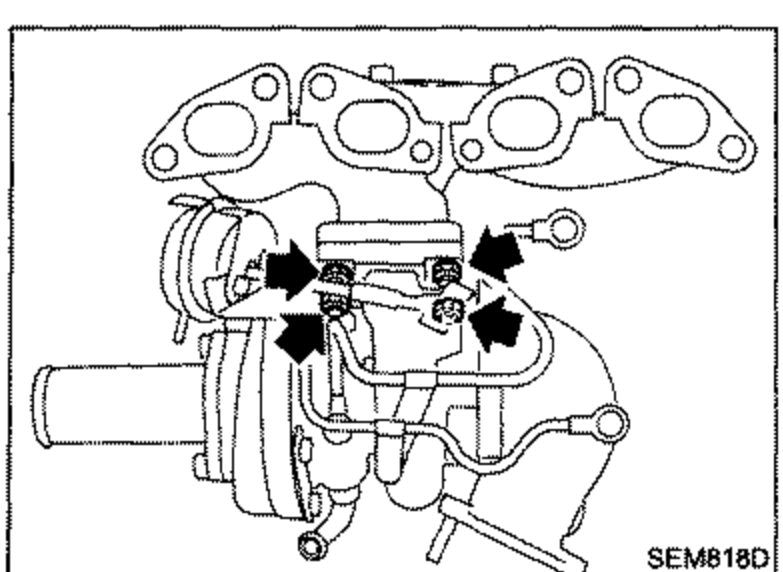

    Exhaust manifold with turbocharger unit, bold arrows indicating the fasteners to remove the exhaust manifold from the turbocharger.
    SEM818D
  2. 3
    Remove exhaust outlet and heat insulator brackets.

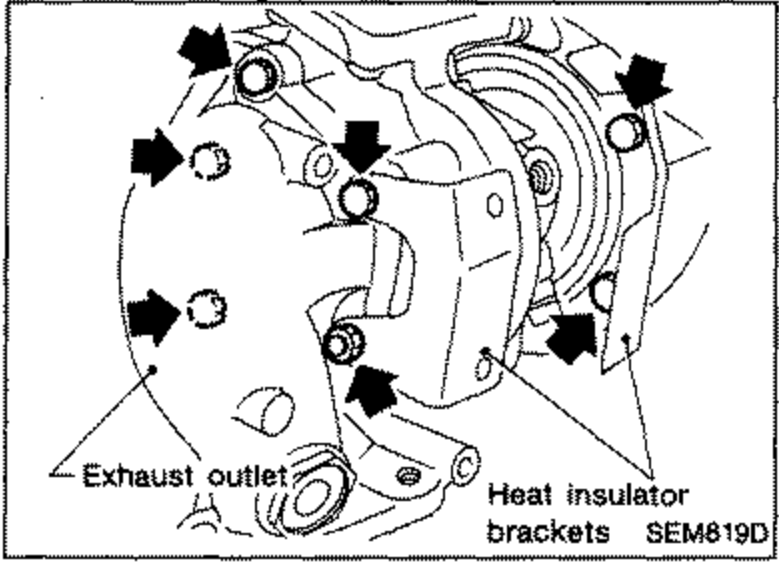

    Turbocharger with the exhaust outlet and heat insulator brackets, bold arrows pointing to bolts to remove. Labeled 'Exhaust outlet', 'Heat insulator brackets'.
    SEM819D
  3. 4
    Remove oil return tube.

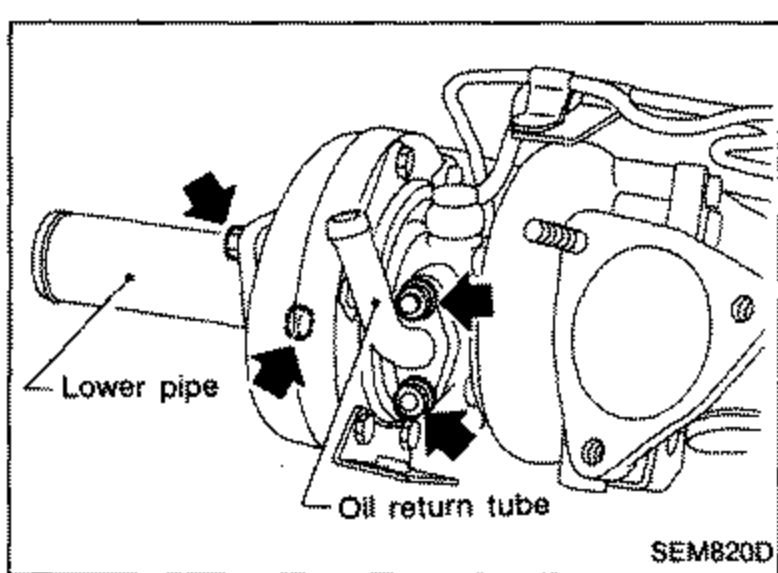

    Turbocharger with the lower pipe and oil return tube, bold arrows pointing to fasteners. Labeled 'Lower pipe', 'Oil return tube'.
    SEM820D
  4. 5
    Remove lower pipe.
  5. 6
    Remove oil inlet tube and water inlet tube.

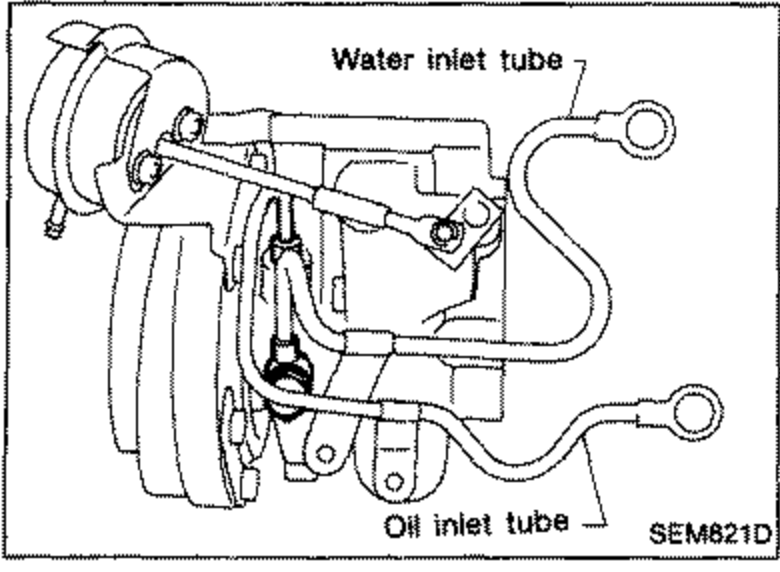

    Turbocharger showing the oil inlet tube and water inlet tube to be removed. Labeled 'Water inlet tube', 'Oil inlet tube'.
    SEM821D

Inspection

Perform the following checks. If N.G., replace turbocharger unit.
