Cylinder Block - Inspection (Cont'd): Bearing Replacement / Connecting Rod Bend and Torsion / Crankshaft
EM-243prose procedureReam bore dimensions and connecting rod bend/torsion limits differ between CD17 and CD20.
Inspection (Cont'd)
Bearing Replacement

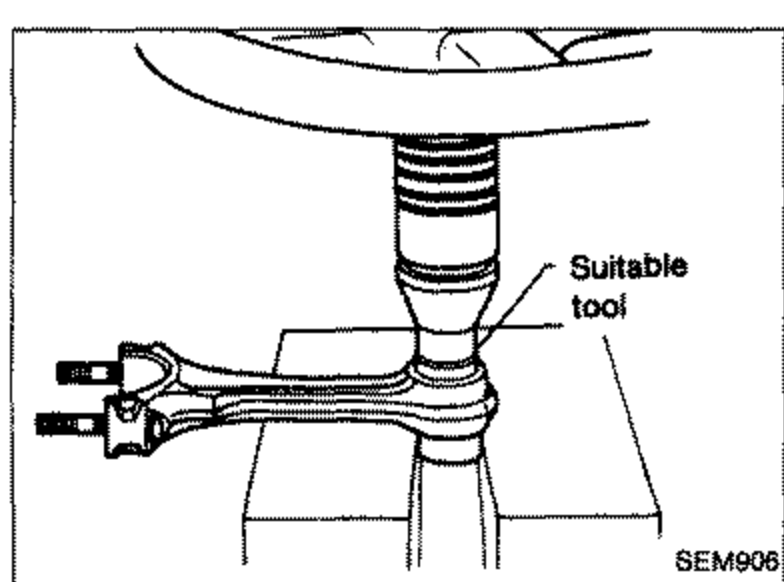

- 1Remove bearing with a suitable tool.Do not scratch inner surface of connecting rod.

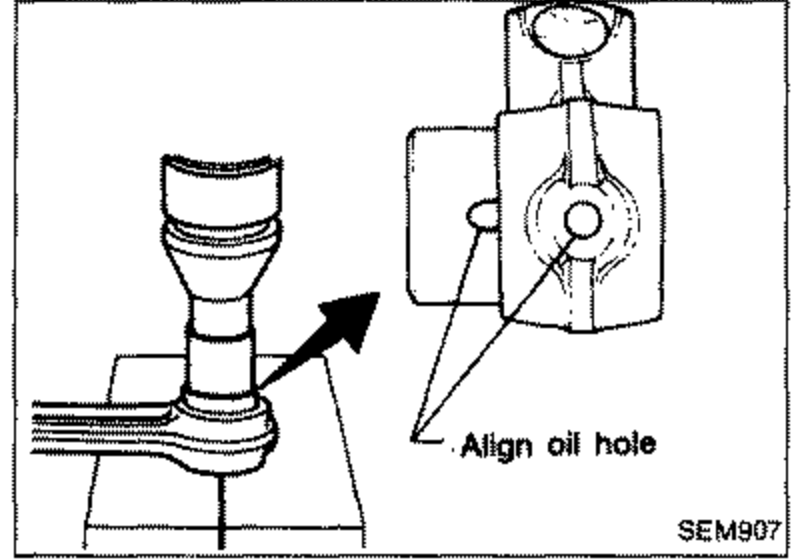

SEM906 - 2Install new bearing with oil holes aligned correctly.
SEM907 - 3Ream bore using a suitable tool. Ream bore: CD17 24.025 - 24.038 mm (0.9459 - 0.9464 in); CD20 25.025 - 25.038 mm (0.9852 - 0.9857 in).
| Specification | Value |
|---|---|
| Ream bore (CD17)0.9459 - 0.9464 in | 24.025 - 24.038mm |
| Ream bore (CD20)0.9852 - 0.9857 in | 25.025 - 25.038mm |
Ream bore (CD17)0.9459 - 0.9464 in
24.025 - 24.038mm
Ream bore (CD20)0.9852 - 0.9857 in
25.025 - 25.038mm
CONNECTING ROD BEND AND TORSION
| Specification | Value |
|---|---|
| Bend (CD17, per 100 mm / 3.94 in length)0.0059 in | Less than 0.15mm |
| Torsion (CD17, per 100 mm / 3.94 in length)0.0118 in | Less than 0.30mm |
| Bend (CD20, per 100 mm / 3.94 in length)0.0010 in | Less than 0.025mm |
| Torsion (CD20, per 100 mm / 3.94 in length)0.0010 in | Less than 0.025mm |
Bend (CD17, per 100 mm / 3.94 in length)0.0059 in
Less than 0.15mm
Torsion (CD17, per 100 mm / 3.94 in length)0.0118 in
Less than 0.30mm
Bend (CD20, per 100 mm / 3.94 in length)0.0010 in
Less than 0.025mm
Torsion (CD20, per 100 mm / 3.94 in length)0.0010 in
Less than 0.025mm
CRANKSHAFT
Crankshaft Inspection
- 1Check crankshaft journals and pins for score, bias, wear or cracks. If faults are minor, correct with fine crocus cloth.

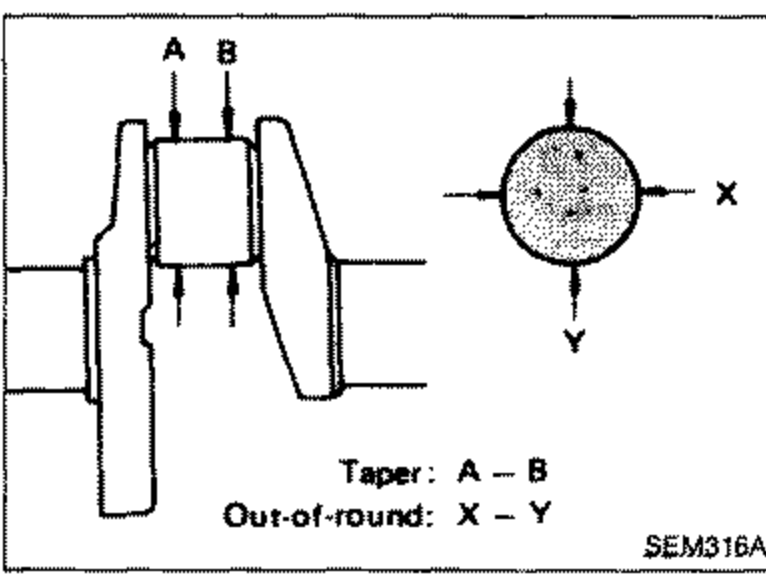

- 2Check journals and pins with a micrometer for taper and out-of-round. Out-of-round (X - Y): Less than 0.005 mm (0.0002 in). Taper (A - B): Less than 0.005 mm (0.0002 in).

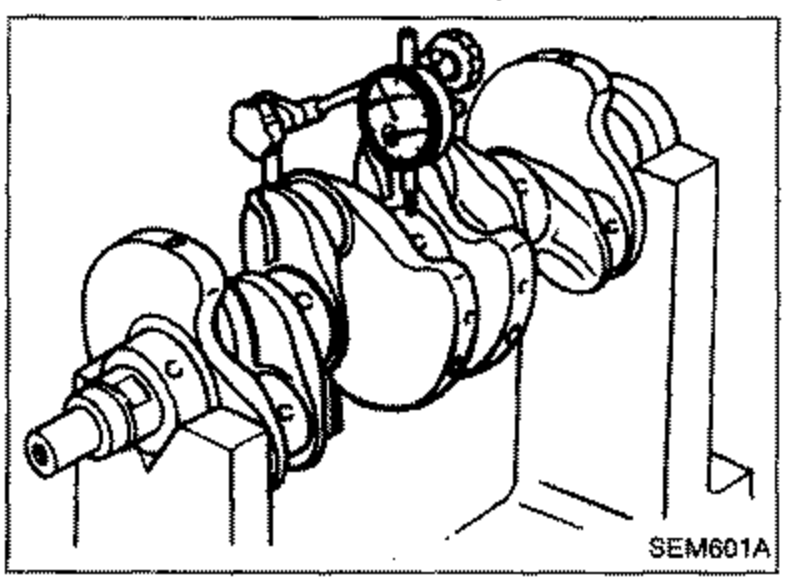

SEM316A - 3Check crankshaft runout. Runout (Total indicator reading): Less than 0.05 mm (0.0020 in).
SEM601A
| Specification | Value |
|---|---|
| Crankshaft out-of-round (X - Y)0.0002 in | Less than 0.005mm |
| Crankshaft taper (A - B)0.0002 in | Less than 0.005mm |
| Crankshaft runout (Total indicator reading)0.0020 in | Less than 0.05mm |
Crankshaft out-of-round (X - Y)0.0002 in
Less than 0.005mm
Crankshaft taper (A - B)0.0002 in
Less than 0.005mm
Crankshaft runout (Total indicator reading)0.0020 in
Less than 0.05mm
