Timing Chain - Inspection / Installation

EM-88prose procedure

Timing chain mating mark colors: mark 1 = Gold; marks 2 and 3 = Silver. Link counts between marks: 20, 56, 48 rollers.

Continued from EM-87

Inspection

Check for cracks and excessive wear at roller links. Replace chain if necessary.

Installation

  1. 1
    Install crankshaft sprocket on crankshaft.

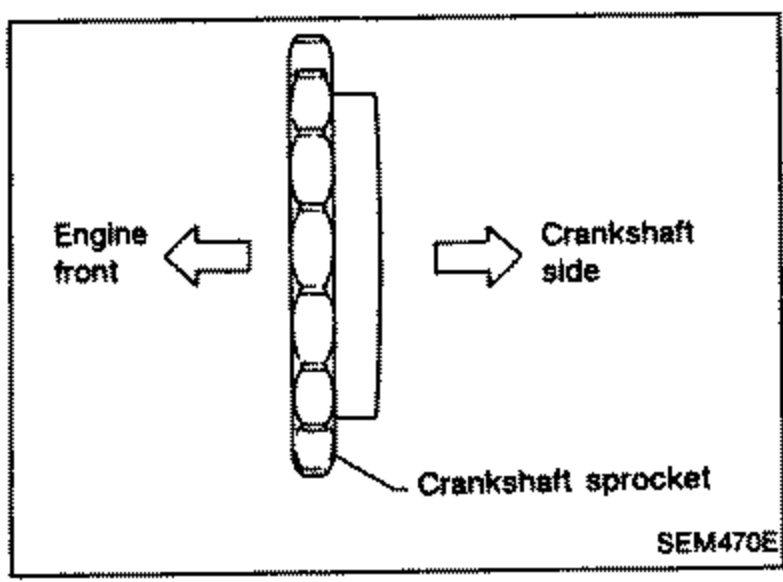

    Crankshaft sprocket installation orientation diagram. Arrows labelled 'Engine front' and 'Crankshaft side' indicate sprocket facing direction. Labelled callout 'Crankshaft sprocket'.
    SEM470E
  2. 2
    Position crankshaft so that No. 1 piston is set at T.D.C. (Keyway at 12 o'clock-mating mark at 4 o'clock approx.) fit timing chain to crankshaft sprocket so that mating mark is in line with mating mark on crankshaft sprocket.
    Mating mark color on timing chain. 1: Gold. 2, 3: Silver.

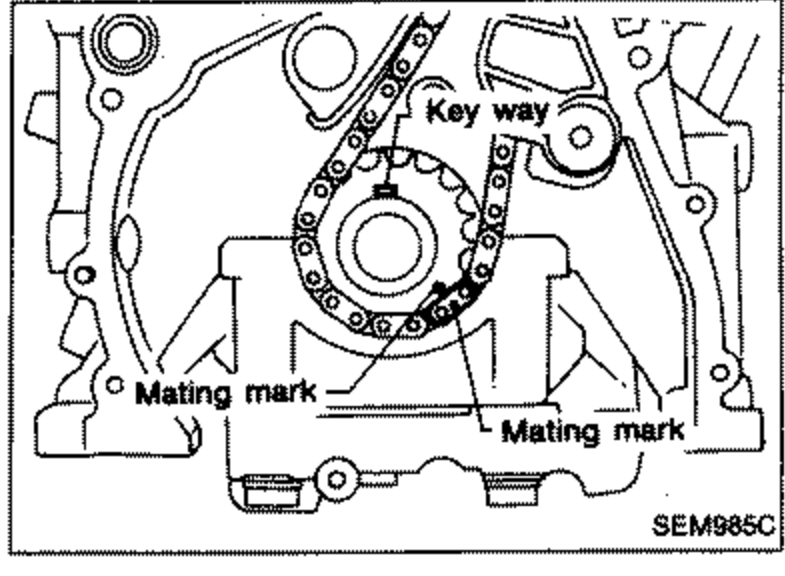

    Timing chain to crankshaft sprocket alignment showing keyway and mating marks. Labels: 'Key way', 'Mating mark' (multiple).
    SEM985C
  3. 3
    Install timing chain and timing chain guides.

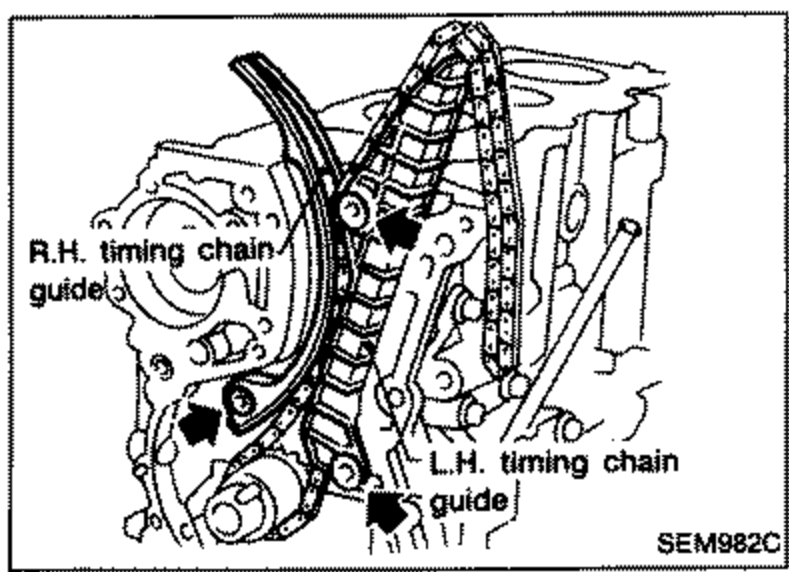

    Timing chain and timing chain guides installation. Labels: 'R.H. timing chain guide' and 'L.H. timing chain guide'.
    SEM982C
