ENGINE AND EMISSION CONTROL PARTS LOCATION — GA14DS With Catalyzer Without E.G.R. (Cont'd)
EF & EC-9component photoGA14DS engine with catalyzer, without E.G.R.
GA14DS With Catalyzer Without E.G.R. (Cont'd)
Component LocationFig. fig1
Detail views of component locations for GA14DS with catalyzer without E.G.R.: idle-up control solenoid (SEF292K), fuel cut solenoid / accelerator pump control solenoid (SEF476K), throttle valve switch (SEF340L), T.V.V. and engine temperature sensor (SEF338L), E.C.C. control unit (SEF339L).
SEF292K

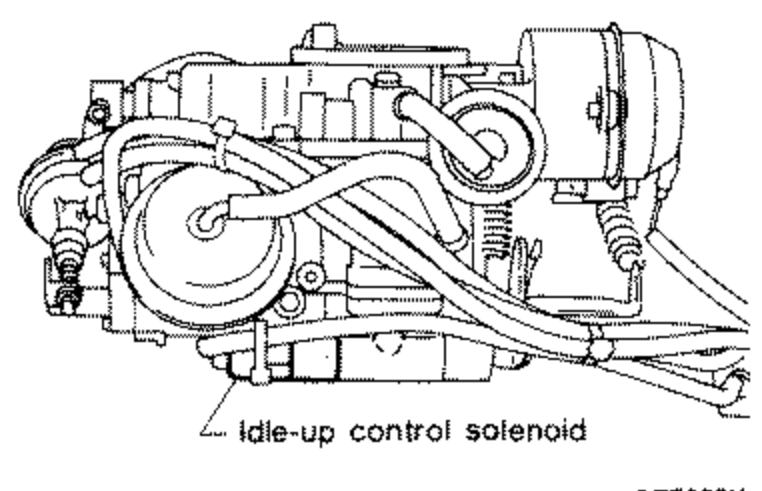

1Idle-up control solenoid(SEF292K)
2Fuel cut solenoid(SEF476K)
3Accelerator pump control solenoid(SEF476K)
4Throttle valve switch(SEF340L)
5T.V.V.(SEF338L)
6Engine temperature sensor(SEF338L)
7E.C.C. control unit(SEF339L)
