E.G.R. System - Parts Location

EF & EC-718component photo

Two diagrams: CD17 engine (upper) and CD20 engine (lower). On CD20 the solenoid valves are color-coded: Black = throttle valve controller, Brown = E.G.R. control valve. Control unit location is documented under the QUICK-GLOW SYSTEM heading.

Parts Location

Component LocationFig. fig1

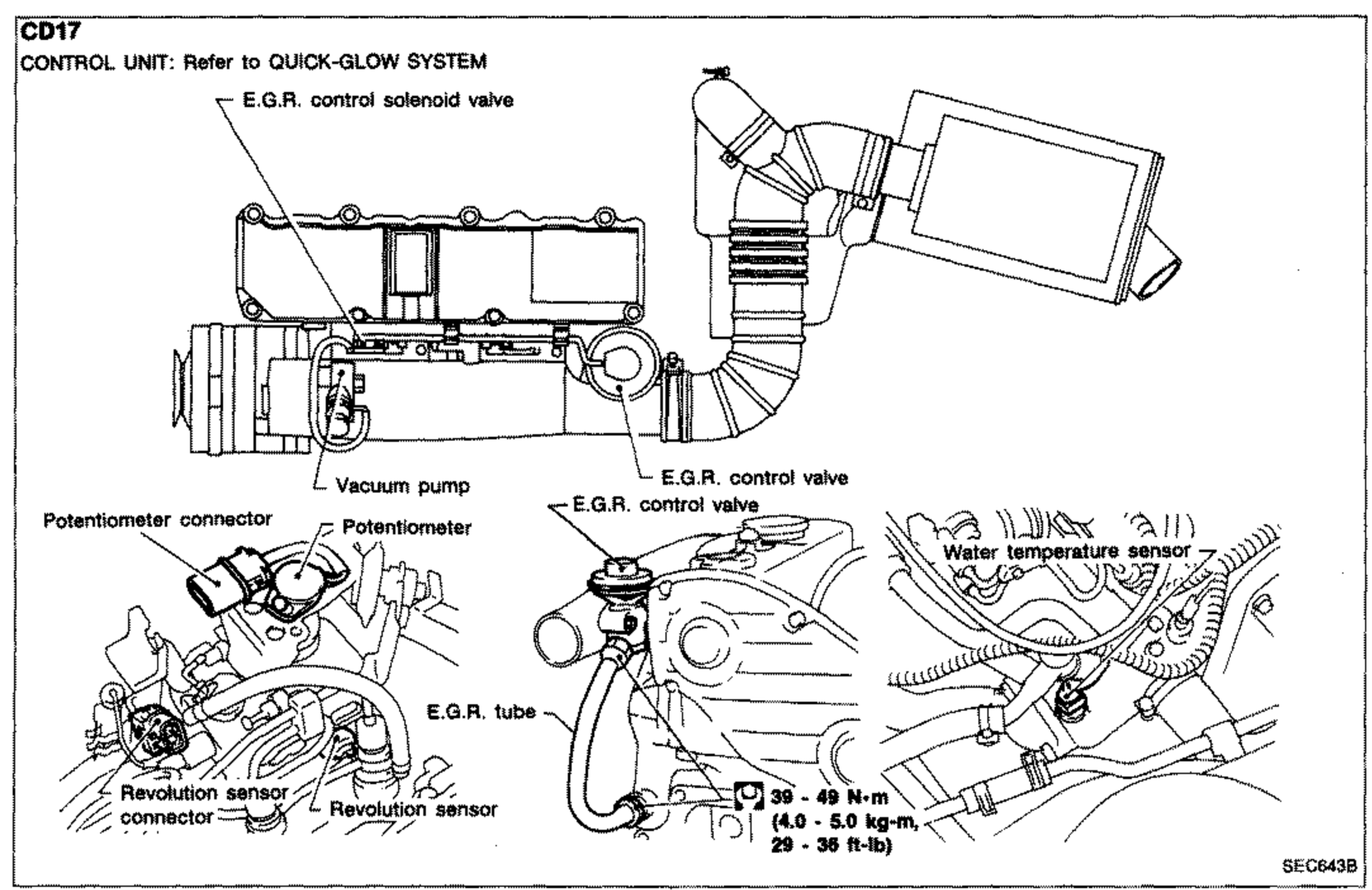

CD17 engine E.G.R. parts location. CONTROL UNIT: refer to QUICK-GLOW SYSTEM. Components: E.G.R. control solenoid valve, vacuum pump, E.G.R. control valve, potentiometer connector, potentiometer, revolution sensor connector, revolution sensor, E.G.R. tube, water temperature sensor.

E.G.R. parts-location diagram for the CD17 engine. Engine illustration with callouts pointing to the E.G.R. control solenoid valve, vacuum pump, E.G.R. control valve, potentiometer connector, potentiometer, revolution sensor connector, revolution sensor, E.G.R. tube and water temperature sensor. Note states 'CONTROL UNIT: refer to QUICK-GLOW SYSTEM'. Includes a torque-spec callout.

SEC643B

1E.G.R. control solenoid valve(top)

2Vacuum pump(center left)

3E.G.R. control valve(center)

4Water temperature sensor(right)

5Potentiometer connector(left)

6Potentiometer(center left)

7E.G.R. tube(center)

8Revolution sensor connector(lower left)

9Revolution sensor(lower center)

Component LocationFig. fig2

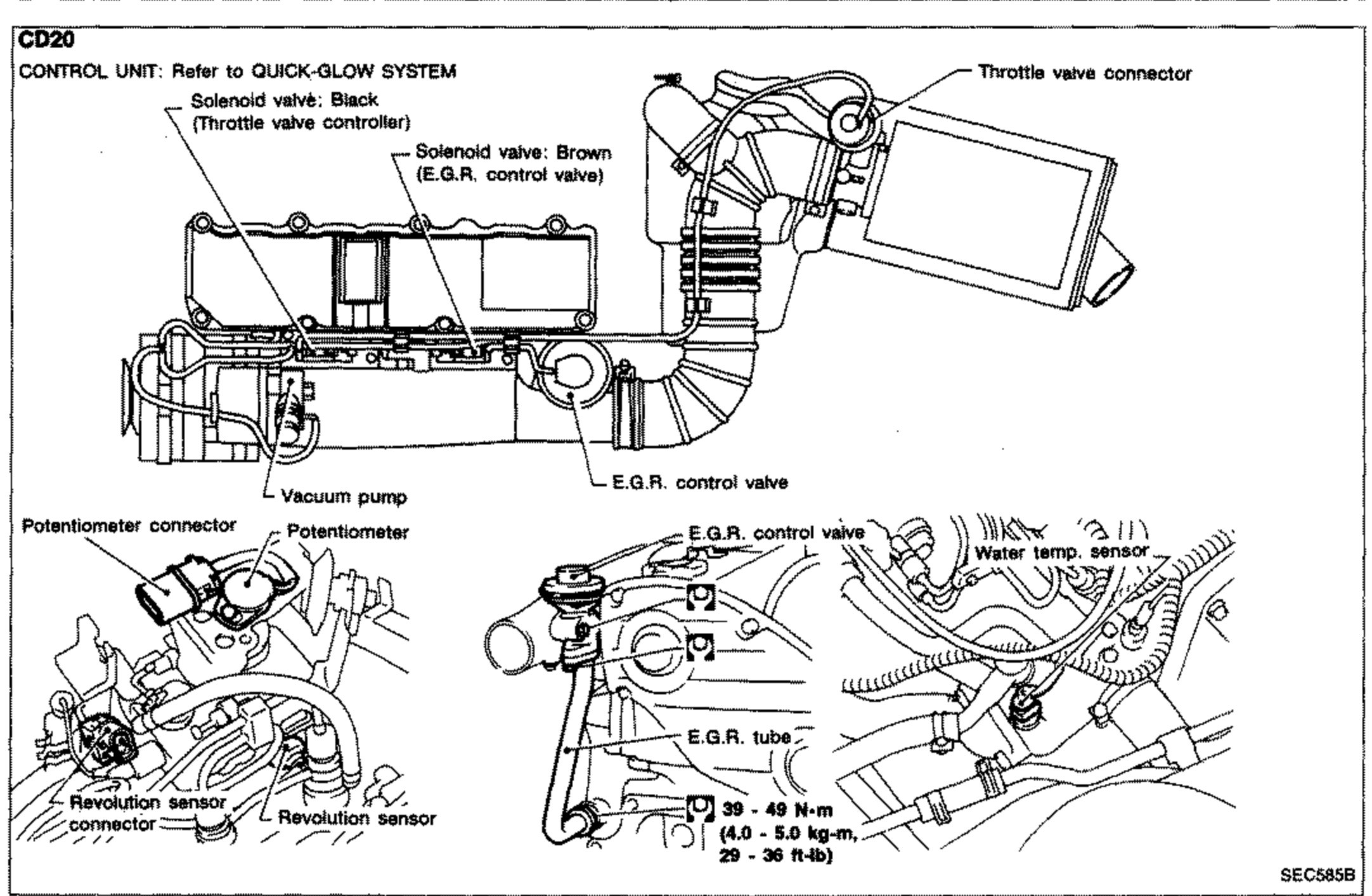

CD20 engine E.G.R. parts location. CONTROL UNIT: Refer to QUICK-GLOW SYSTEM. Components: solenoid valve Black (throttle valve controller), solenoid valve Brown (E.G.R. control valve), throttle valve connector, vacuum pump, E.G.R. control valve, potentiometer connector, potentiometer, revolution sensor connector, revolution sensor, E.G.R. tube, water temp sensor.

E.G.R. parts-location diagram for the CD20 engine. Engine illustration with callouts pointing to the solenoid valve: Black (Throttle valve controller), solenoid valve: Brown (E.G.R. control valve), throttle valve connector, vacuum pump, E.G.R. control valve, potentiometer connector, potentiometer, revolution sensor connector, revolution sensor, E.G.R. tube and water temp sensor. Note states 'CONTROL UNIT: Refer to QUICK-GLOW SYSTEM'. Includes a torque-spec callout.

SEC585B

1Solenoid valve: Black (Throttle valve controller)(top)

2Solenoid valve: Brown (E.G.R. control valve)(top)

3Throttle valve connector(top right)

4Vacuum pump(center left)

5E.G.R. control valve(center)

6Water temp sensor(right)

7Potentiometer connector(left)

8Potentiometer(center left)

9E.G.R. tube(center)

10Revolution sensor connector(lower left)

11Revolution sensor(lower center)

Specification	Value
	29 - 49N·m

29 - 49N·m
