VE-TYPE INJECTION PUMP - Removal

EF & EC-667prose procedure

CD20 diesel engine section (page header tab shows 'CD').

Removal

  1. 1
    Disconnect battery ⊖ cable, fuel cut solenoid valve connector and accelerator wire.

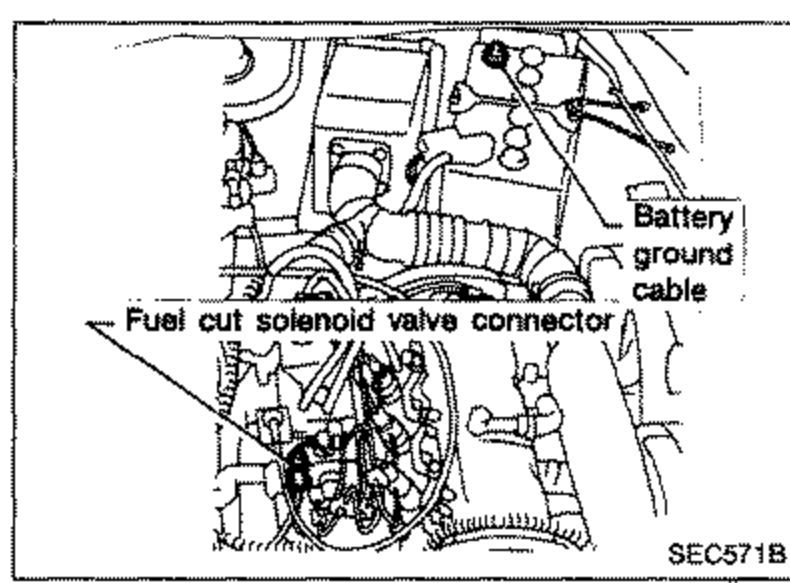

    Engine bay view showing the fuel cut solenoid valve connector and the battery ground cable, with leader lines pointing to each.
    SEC571B
  2. 2
    Set No. 1 piston at T.D.C. on its compression stroke.
    T.D.C.: White painted mark
  3. 3
    Disconnect water hoses for cold start device.
  4. 4
    Remove fuel hoses (supply, return and spill) and injection tubes.
  5. 5
    Remove air duct and injection pump timing belt cover.

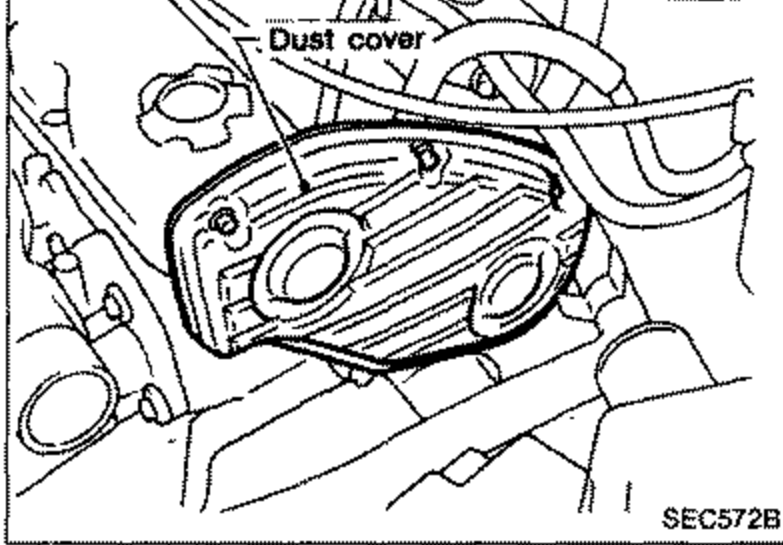

    Engine view showing the injection pump timing belt dust cover with leader line.
    SEC572B
  6. 6
    Remove injection pump timing belt and sprocket.
  7. 7
    Remove injection pump assembly.

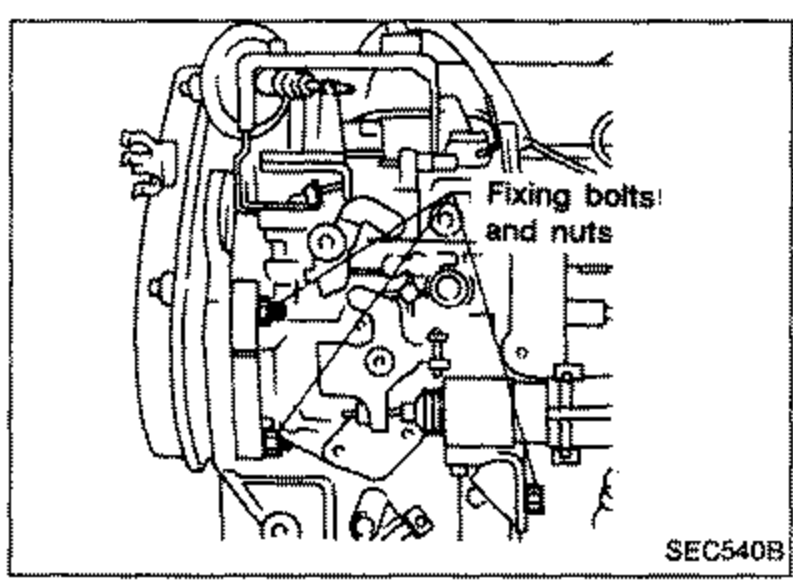

    Injection pump assembly view showing the fixing bolts and nuts with leader line.
    SEC540B
