VE-TYPE INJECTION PUMP - Disassembly (Cont'd)

EF & EC-674prose procedure

CD20 diesel engine VE-type injection pump.

Continued from EF & EC-673

Disassembly (Cont'd)

  1. 15

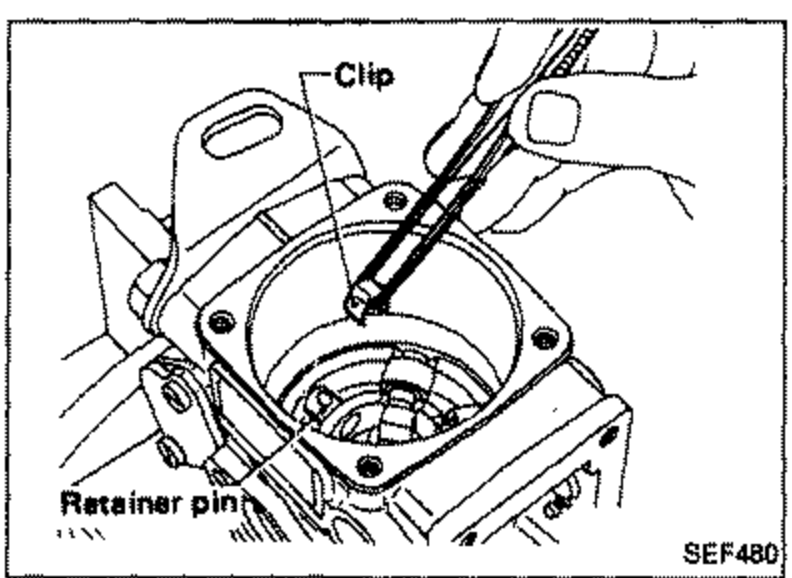

    Remove clips and pins.
    Removal of clips and pins from the pump interior. Callout arrows label 'Clip' (upper) and 'Retainer pin' (lower).
    SEF480
  2. 16

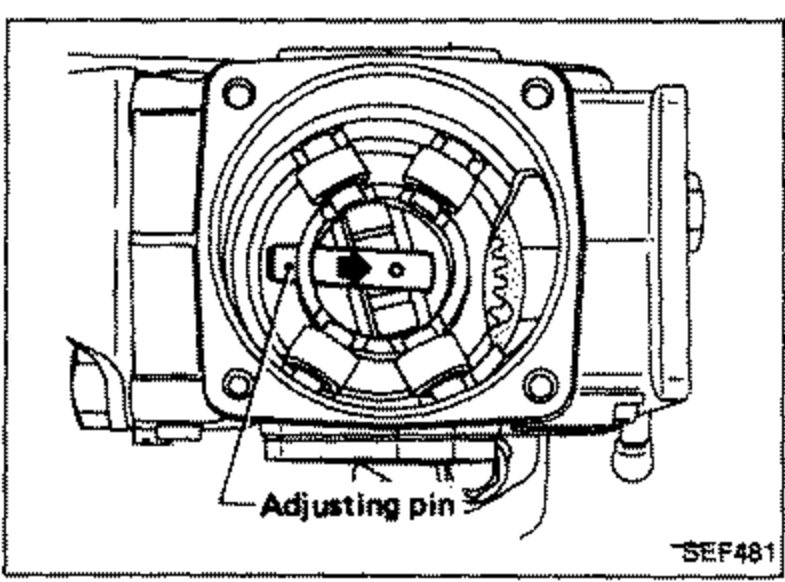

    Move adjusting pin to center of roller holder, as shown.
    Top-down view of the roller holder showing the adjusting pin moved to the center, indicated by an arrow. Callout labels 'Adjusting pin'.
    SEF481
  3. 17

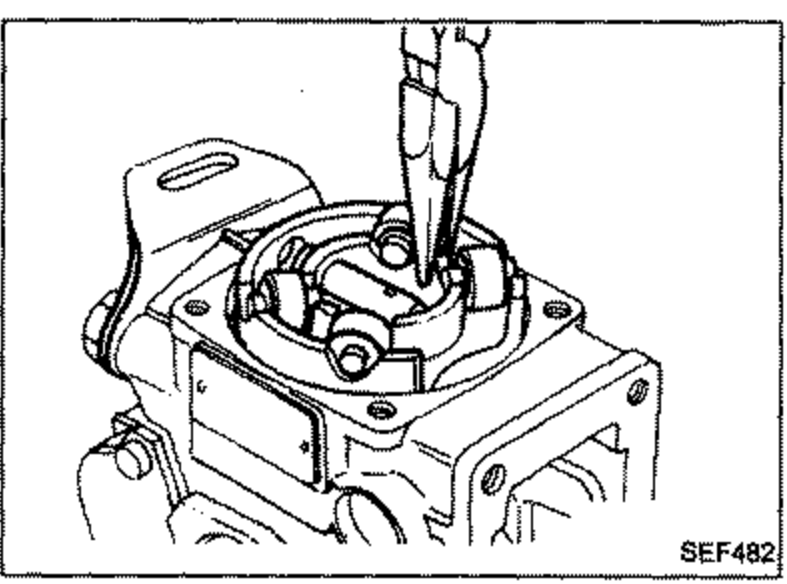

    Lift out roller holder with rollers without tilting.
    Be careful not to drop rollers.
    Roller holder being lifted out of the pump body without tilting.
    SEF482
  4. 18

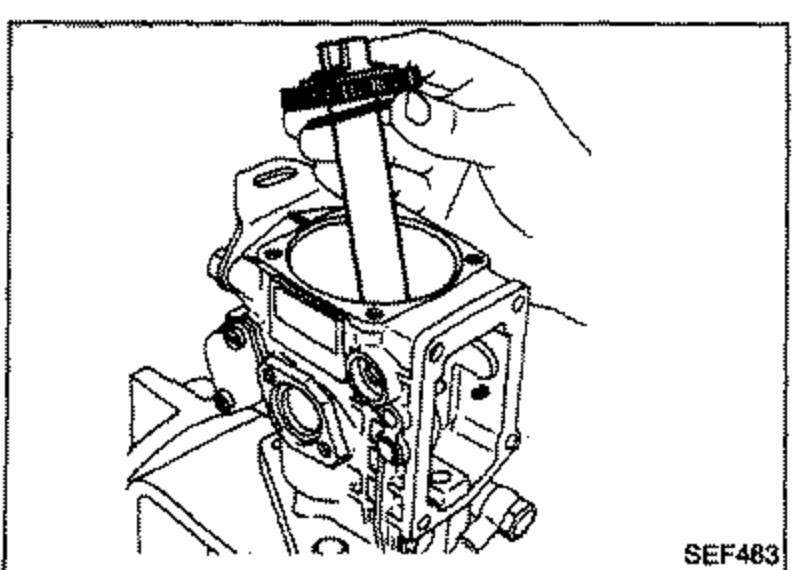

    Remove drive shaft.
    a. Be careful not to scratch inner surface of fuel injection pump body.
    b. Be careful not to drop the key.
    Drive shaft being removed vertically from the fuel injection pump body, held by a hand.
    SEF483
