Engine and Emission Control Overall System - E.C.C.S. Component Parts Location (Cont'd)

EF & EC-361component photo

Page applies to SR20DET (turbo) engine. Includes turbo-specific wastegate valve control solenoid valve.

E.C.C.S. Component Parts Location (Cont'd)

Component LocationFig. fig1

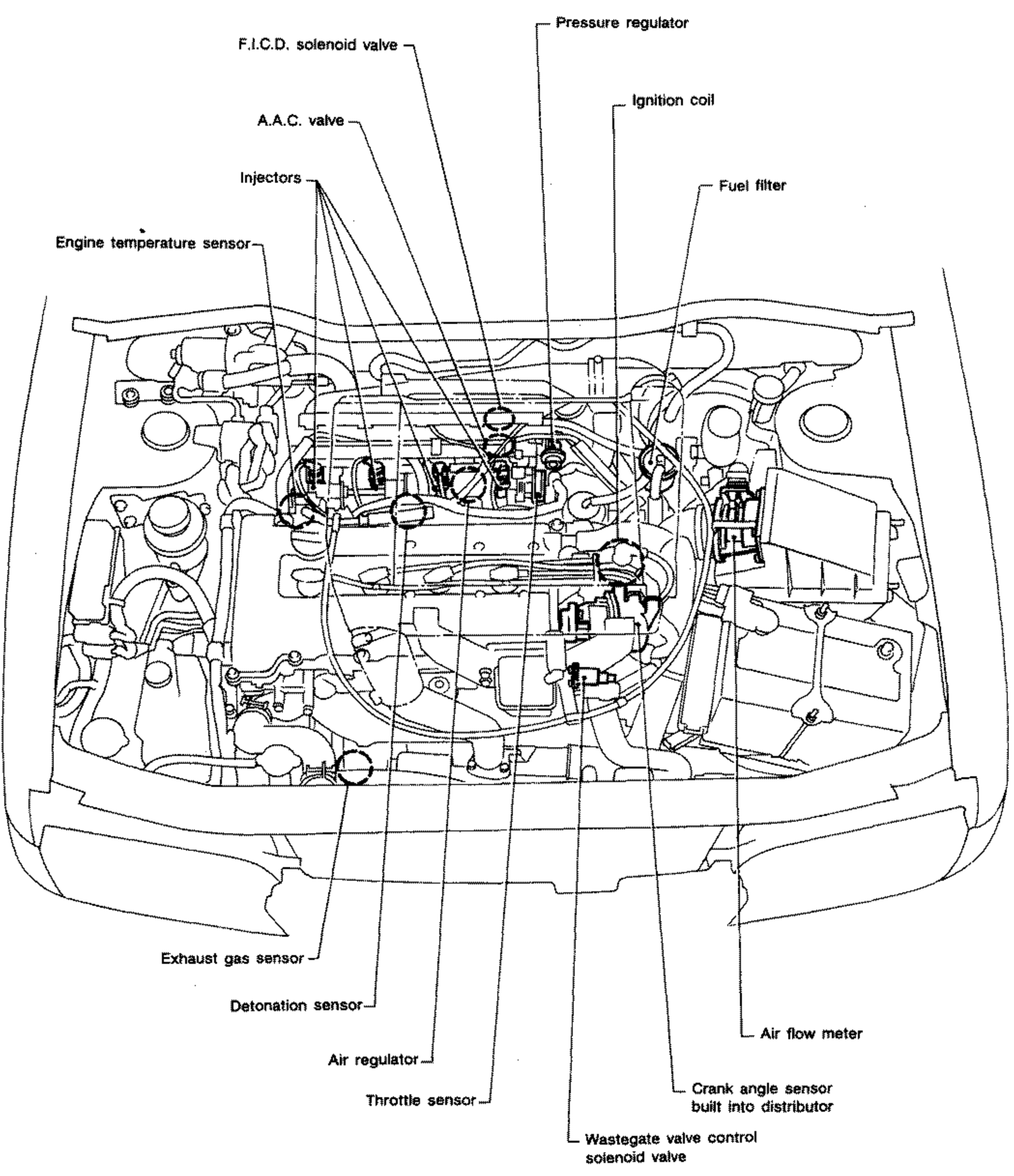

Engine compartment top view showing the location of E.C.C.S. component parts on the SR20DET (turbo) engine.

SEF258L

1F.I.C.D. solenoid valve(top center-left)

2Pressure regulator(top center)

3A.A.C. valve(top center-left)

4Ignition coil(top center-right)

5Injectors(left center)

6Fuel filter(right)

7Engine temperature sensor(left)

8Exhaust gas sensor(bottom left)

9Detonation sensor(bottom center-left)

10Air regulator(bottom center)

11Throttle sensor(bottom center)

12Wastegate valve control solenoid valve(bottom center)

13Crank angle sensor built into distributor(bottom right)

14Air flow meter(lower right)
