Wiring Diagram (Cont'd)

EF & EC-209wiring diagram

GA16DE engine. Continuation of R.H.D. models wiring diagram.

Continued from EF & EC-208

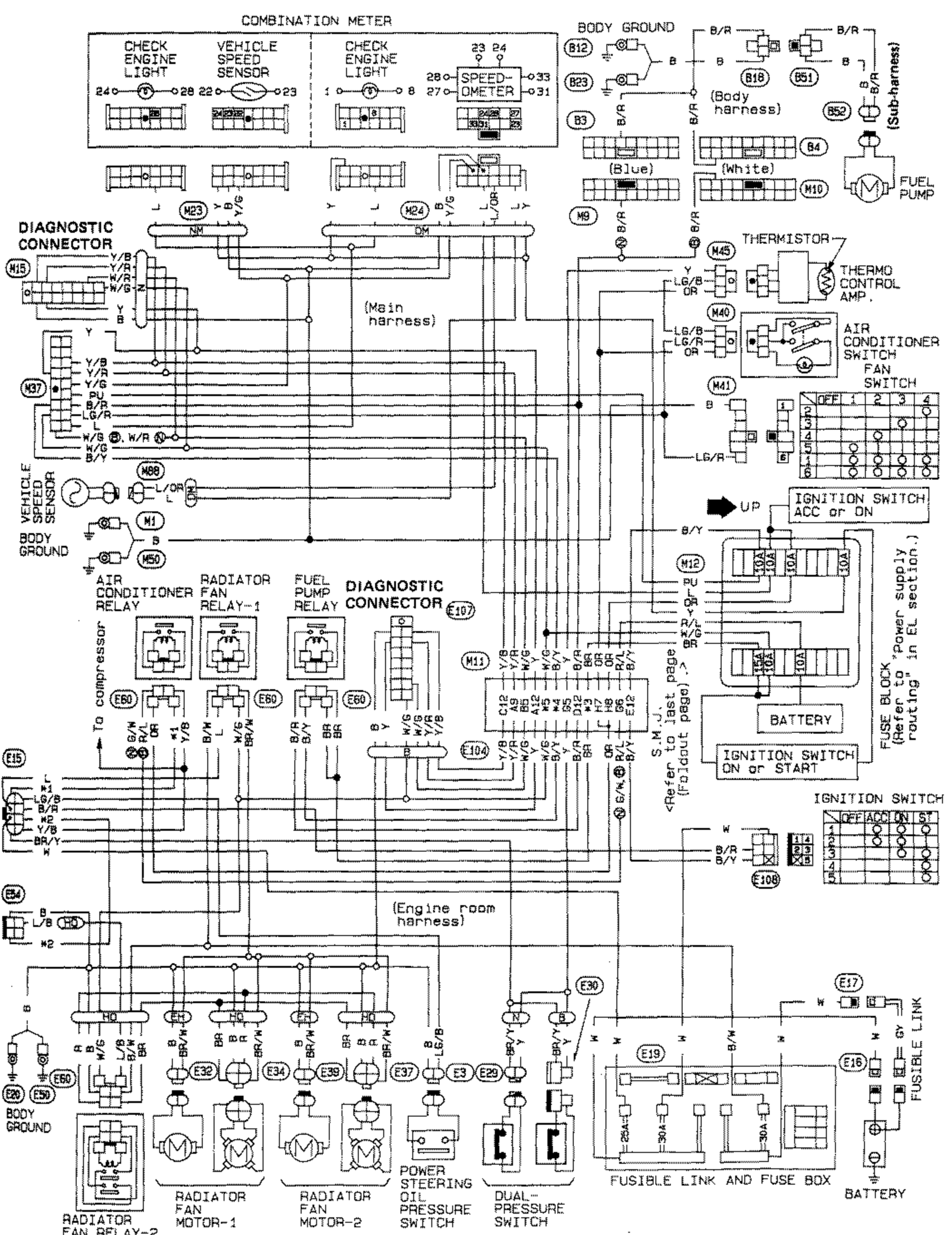

Full-page ECCS wiring diagram continuation for the GA16DE engine (R.H.D. models). Top shows the combination meter with check engine light, vehicle speed sensor, check engine light, plus body ground and body harness connectors. Right side: thermistor, thermo control amp, air conditioner switch, fan switch, ignition switch (ACC or ON), battery, ignition switch (ON or START), fuse block. Left side: diagnostic connector, main harness, vehicle speed sensor, body ground. Center-lower: air conditioner relay, radiator fan relay-1, fuel pump relay, diagnostic connector. Bottom row: radiator fan relay-2, radiator fan motor-1, radiator fan motor-2, power steering oil pressure switch, dual-pressure switch, fusible link and fuse box, battery, ignition switch, fusible link. Engine room harness routing across the bottom.

SEF636K
