VE-TYPE INJECTION PUMP — Assembly (Cont'd)

EF & EC-685prose procedure

CD20 diesel engine (VE-type injection pump).

Continued from EF & EC-684

Assembly (Cont'd)

  1. (7)
    If dial gauge indication is not within this range, replace closing plug and adjust dimension "MS" to that range.
    Refer to S.D.S. for available service parts.

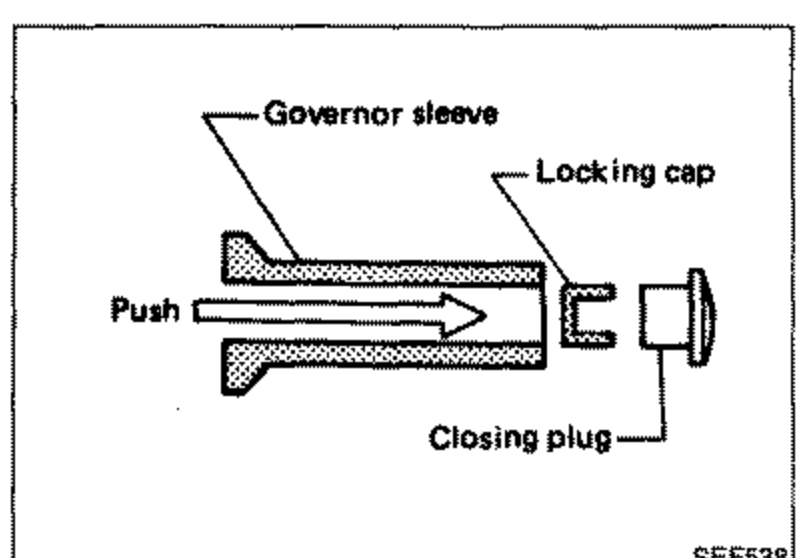

    Schematic cross-section showing the governor sleeve, locking cap and closing plug. A 'Push' label with arrow indicates the direction to push the closing plug. Labels: 'Governor sleeve', 'Locking cap', 'Push', 'Closing plug'.
    SEF538
  2. 26
    Install new plug with new O-ring.
    Always replace plugs with new ones.

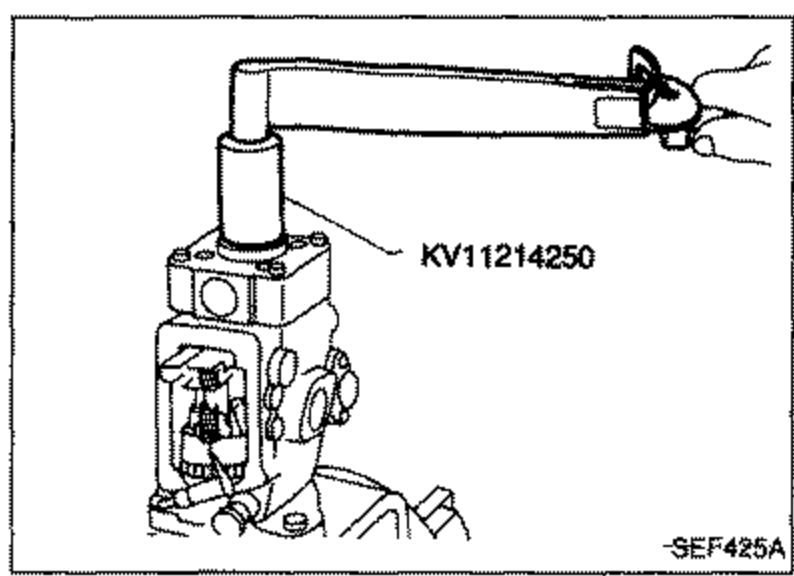

    Installation of new plug with new O-ring and fuel cut solenoid valve, using tool KV11214250. Callout label reads 'KV11214250'.
    SEF425A
  3. 27
    Install fuel cut solenoid valve.
  4. 28
    Install delivery valve.
    a. Always use new washers.
    b. Make sure delivery valve is reinstalled in its original position.

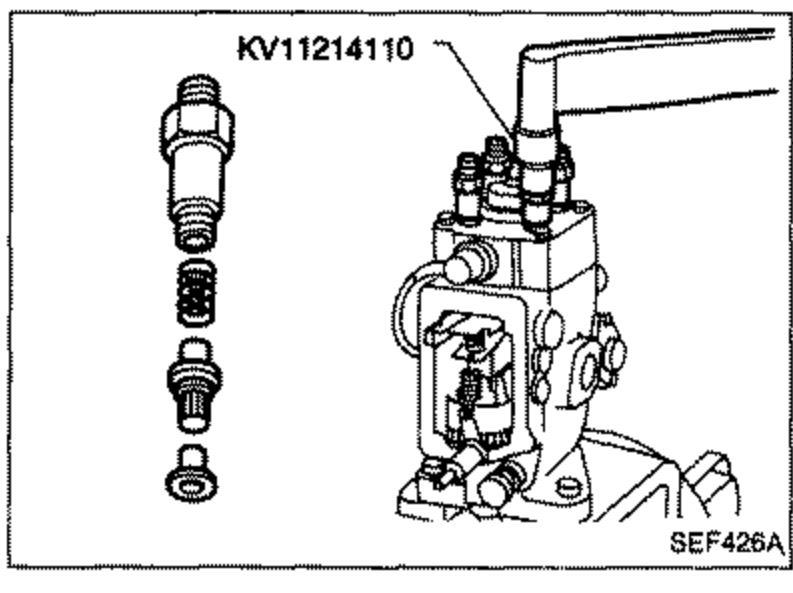

    Installation of delivery valve using tool KV11214110, showing valve components stacked vertically alongside the pump. Callout label reads 'KV11214110'.
    SEF426A
  5. 29
    Install control lever shaft.
    Apply a coat of grease to lever shaft end.

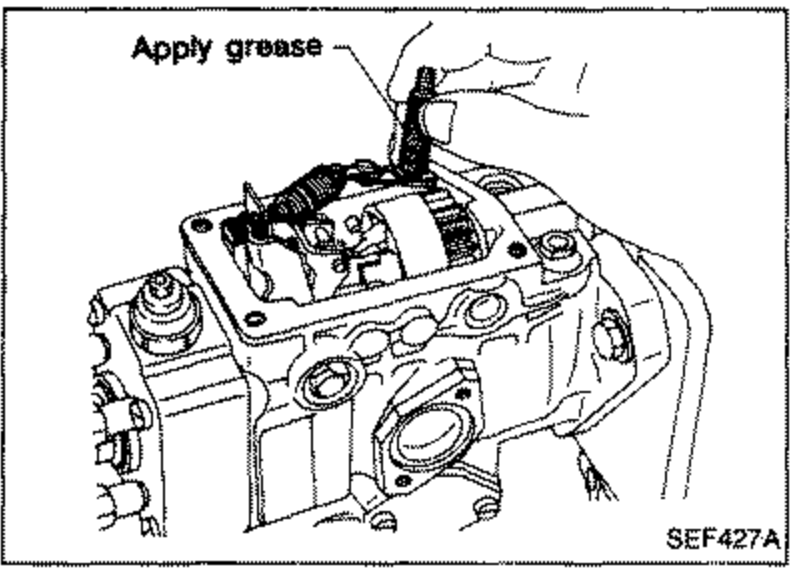

    Installation of control lever shaft. A 'Apply grease' label with arrow points to the lever shaft end where grease is applied.
    SEF427A

GOVERNOR COVER

  1. 1
    Install governor cover.

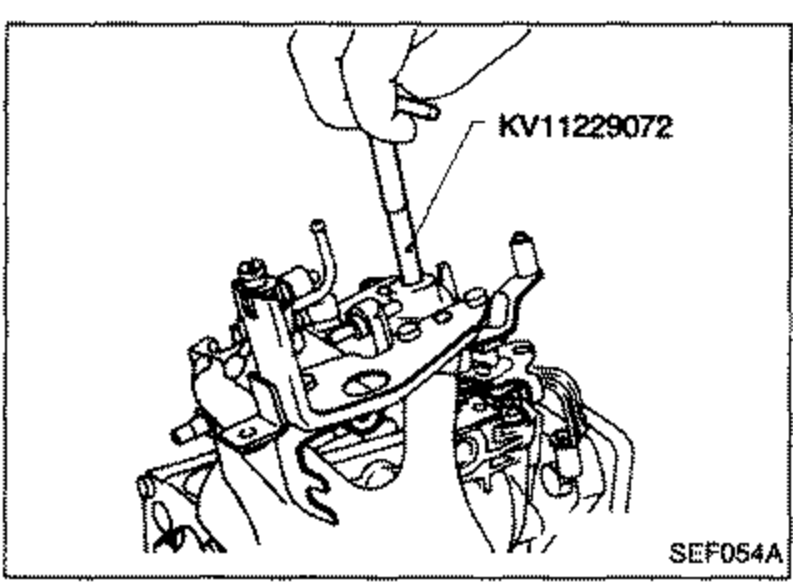

    Installation of governor cover using tool KV11229072 (a driver/socket tool) being applied to the top of the pump. Callout label reads 'KV11229072'.
    SEF054A
