VE-TYPE INJECTION PUMP — Testing of Injection Pump

EF & EC-687spec table

CD20 diesel engine (VE-type injection pump). Injection sequence 1-3-4-2; rotating direction Right (observed from the drive shaft).

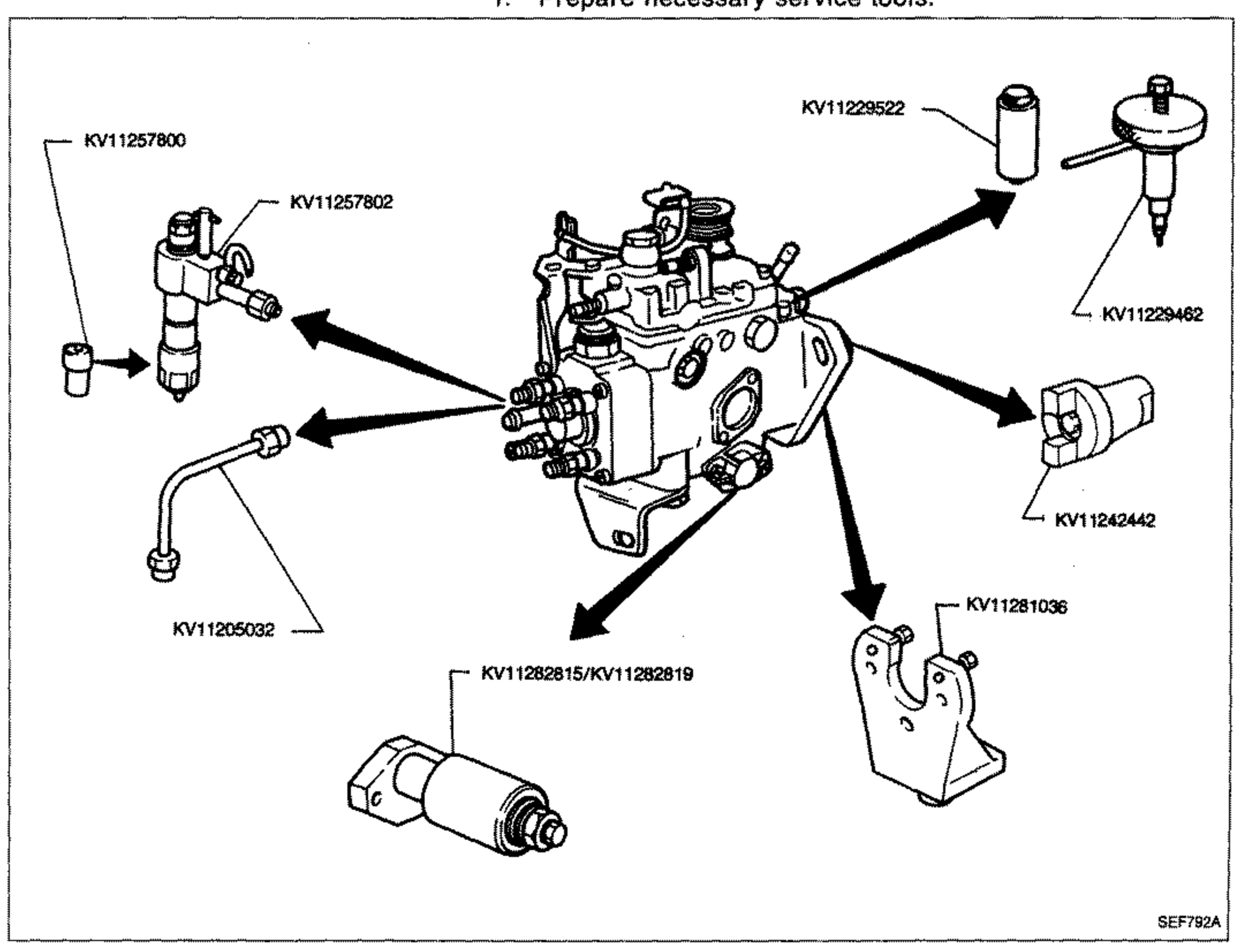

Testing of Injection Pump

Item	Unit	Value
Nozzle		KV11257800
Nozzle holder		KV11257802
Nozzle starting pressure	kPa (bar, kg/cm2, psi)	14,711 - 15,201 (147.1 - 152.0, 150 - 155, 2,133 - 2,204)
Nozzle tube		KV11205032
Nozzle tube: Inner dia. x outer dia. x length	mm (in)	2.0 x 6.0 x 840 (0.079 x 0.236 x 33.07)
Fuel feed pressure	kPa (bar, kg/cm2, psi)	20 (0.20, 0.2, 2.8)
Fuel (test oil)		ISO4113 or SAE J967d
Fuel temperature	°C (°F)	45 - 50 (113 - 122)
Rotating direction		Right (observed from the drive shaft)
Injection sequence		1-3-4-2

Nozzle

Unit

ValueKV11257800

Nozzle holder

Unit

ValueKV11257802

Nozzle starting pressure

UnitkPa (bar, kg/cm2, psi)

Value14,711 - 15,201 (147.1 - 152.0, 150 - 155, 2,133 - 2,204)

Nozzle tube

Unit

ValueKV11205032

Nozzle tube: Inner dia. x outer dia. x length

Unitmm (in)

Value2.0 x 6.0 x 840 (0.079 x 0.236 x 33.07)

Fuel feed pressure

UnitkPa (bar, kg/cm2, psi)

Value20 (0.20, 0.2, 2.8)

Fuel (test oil)

Unit

ValueISO4113 or SAE J967d

Fuel temperature

Unit°C (°F)

Value45 - 50 (113 - 122)

Rotating direction

Unit

ValueRight (observed from the drive shaft)

Injection sequence

Unit

Value1-3-4-2
