Electrical Components Inspection (Cont'd)
EF & EC-636prose procedureUnverifiedTROUBLE DIAGNOSES
Electrical Components Inspection (Cont'd)
RESISTOR
- 1Disconnect resistor harness connector.

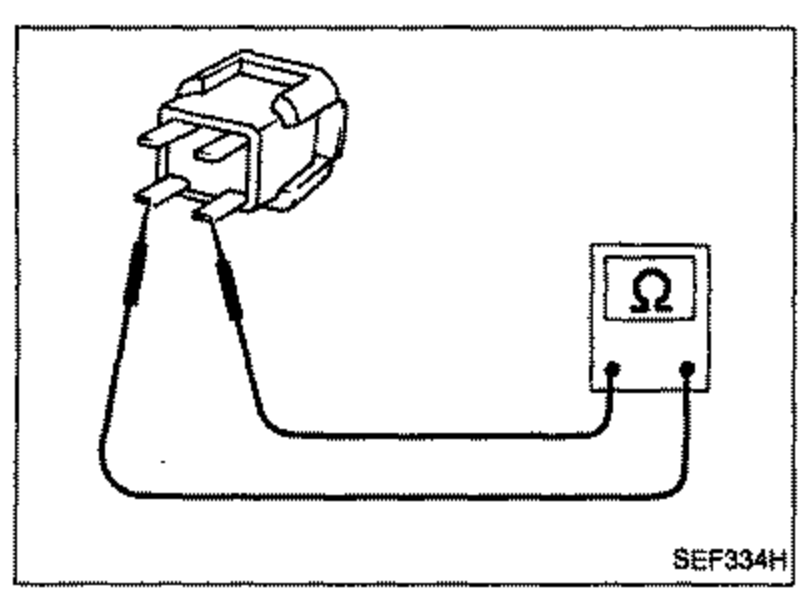

SEF334H - 2Check resistance between terminals ⓐ and ⓑ.
| Specification | Value |
|---|---|
| Resistancebetween terminals ⓐ and ⓑ | Approximately 2.2kΩ |
Resistancebetween terminals ⓐ and ⓑ
Approximately 2.2kΩ
If N.G., replace resistor.
POWER STEERING OIL PRESSURE SWITCH
- 1Disconnect power steering oil pressure switch harness connector.

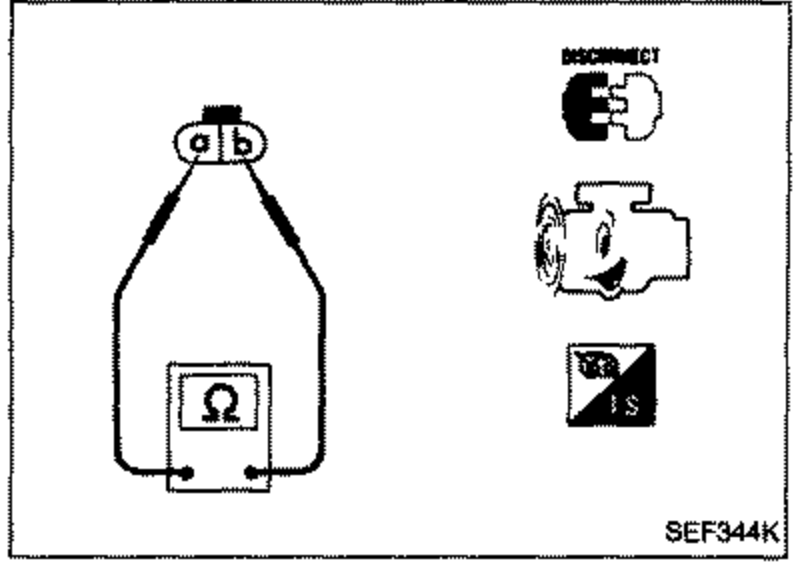

SEF344K - 2Start engine.
- 3Check continuity between terminals ⓐ and ⓑ.
Power steering oil pressure switch continuity
Steering wheel is being turned
ContinuityYes
Steering wheel is not being turned
ContinuityNo
If N.G., replace power steering oil pressure switch.
DROPPING RESISTOR
- 1Disconnect dropping resistor harness connector.

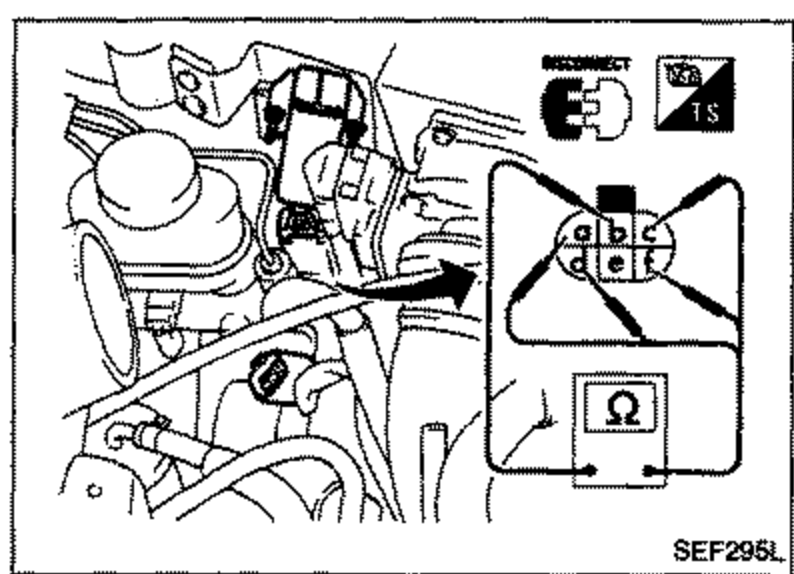

SEF295L - 2Check resistance as shown in the figure.
Dropping resistor resistance
ⓑ - ⓐ
Resistance5 - 7Ω
ⓑ - ⓔ
Resistance5 - 7Ω
ⓑ - ⓓ
Resistance5 - 7Ω
ⓑ - ⓕ
Resistance5 - 7Ω
If N.G., replace dropping resistor.
