QUICK-GLOW SYSTEM — Component Parts Basic Check
EF & EC-713prose procedureComponent Parts Basic Check
ENTIRE SYSTEM CHECK
Set voltmeter between glow plug and engine body.
Key-in glow system
- 1Read voltage when ignition key is inserted into ignition switch. Voltage: Battery voltage for about 3 seconds.

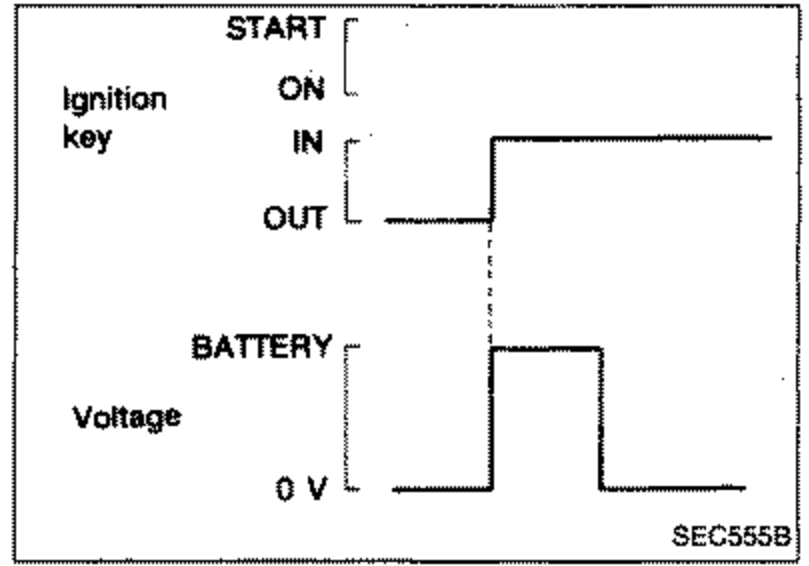

SEC555B
Quick-glow (Pre-glow) system
- 1Turn ignition switch "ON" 3 or more seconds after key-in.

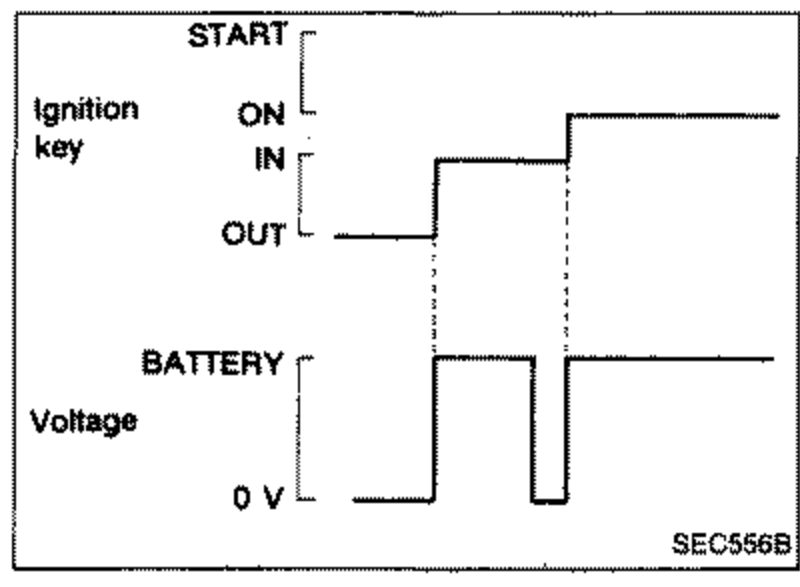

SEC556B - 2Read voltage. Voltage: Battery voltage for about 20* seconds. * Coolant temperature is lower than 60°C (140°F). * Repeating ignition key "ON" and "OFF" may change the time.Coolant temperature is lower than 60°C (140°F).Repeating ignition key "ON" and "OFF" may change the time.
Quick-glow (Cranking) system
- 1Disconnect "S" terminal for starter motor to prevent engine from cranking.

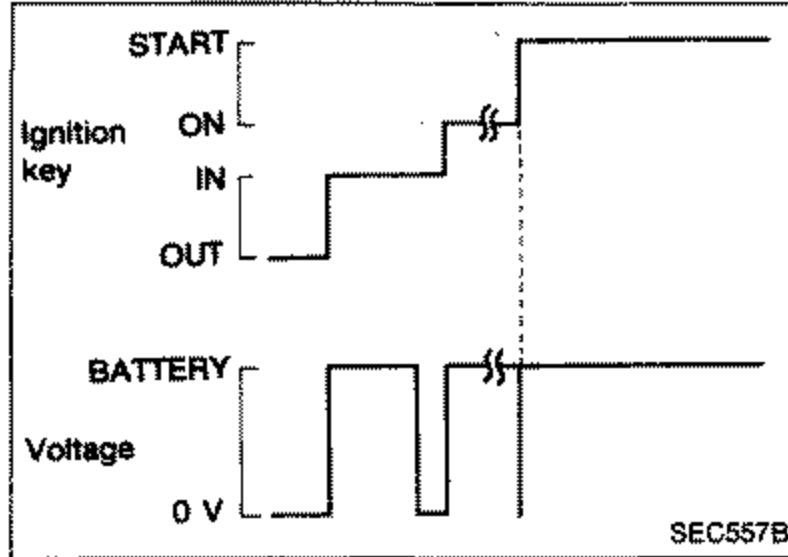

SEC557B - 2Read voltage when ignition key is turned to "START". Voltage: Battery voltage*. * For about 20 seconds after returning ignition switch to "ON".For about 20 seconds after returning ignition switch to "ON".
After-glow system
- 1Connect "S" terminal to starter motor.

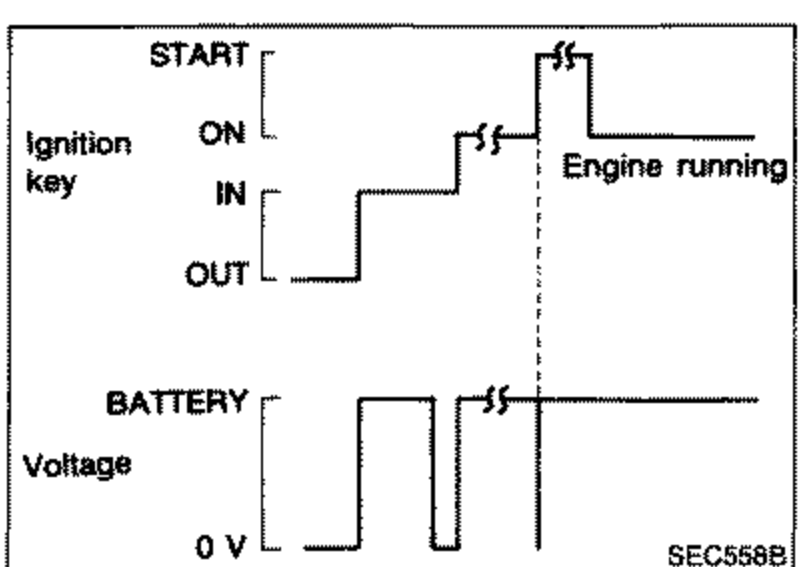

SEC558B - 2Start engine and read voltage. Voltage: Battery voltage for 5* minutes. * Coolant temperature is lower than 60°C (140°F).Coolant temperature is lower than 60°C (140°F).
