Electrical Components Inspection (Cont'd)

EF & EC-349prose procedure

GA16DE engine (header tab).

1

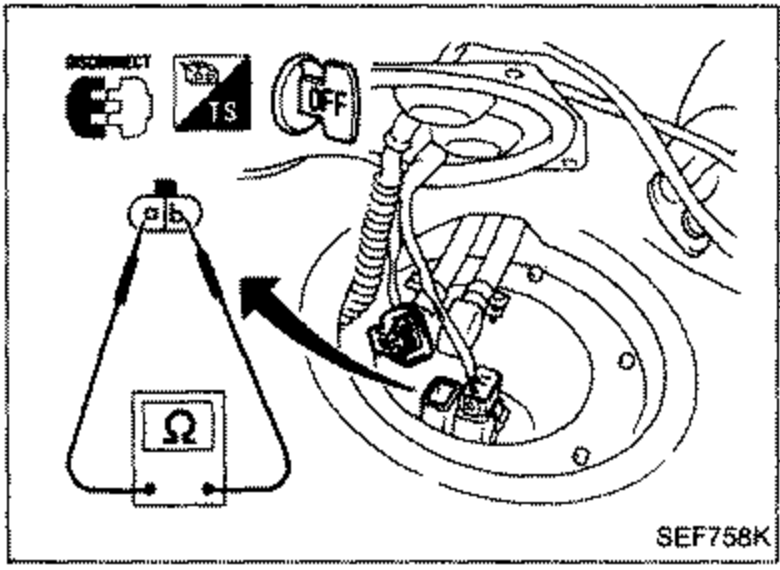

Disconnect fuel pump harness connector.
2
Check resistance between terminals (a) and (b).
Resistance: Approximately 0.7Ω
If N.G., replace fuel pump.
SEF758K

1

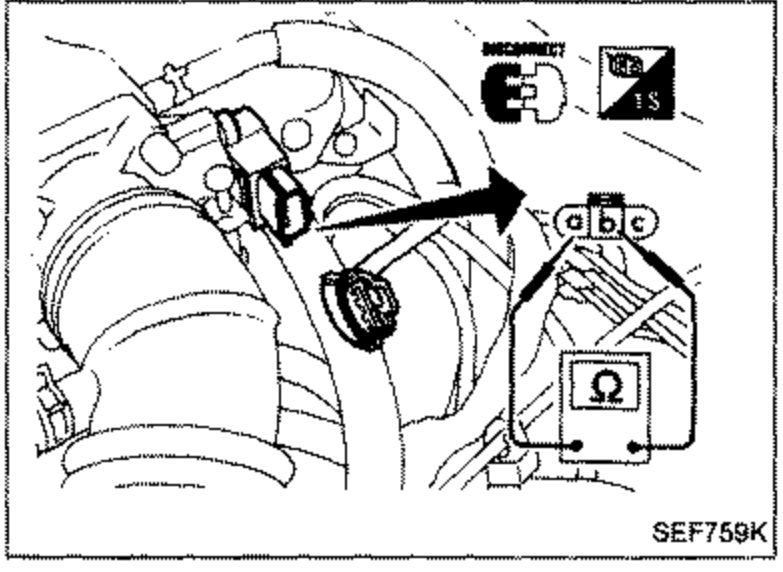

Disconnect throttle sensor harness connector.
2
Make sure that resistance between terminals (a) and (b) changes when opening throttle valve manually.
SEF759K

Accelerator pedal conditions	Resistance kΩ
Completely released	Approximately 0.5
Partially released	0.5 - 4
Completely depressed	Approximately 4

Completely released

Resistance kΩApproximately 0.5

Partially released

Resistance kΩ0.5 - 4

Completely depressed

Resistance kΩApproximately 4

If N.G., replace throttle sensor.

If throttle sensor is replaced or removed, it is necessary to install in proper position, by following the procedure as shown below:

1
Install throttle sensor body in throttle chamber. Do not tighten bolts. Leave bolts loose.
2
Connect throttle sensor and idle switch harness connector.
3
Start engine and warm it up sufficiently.
4

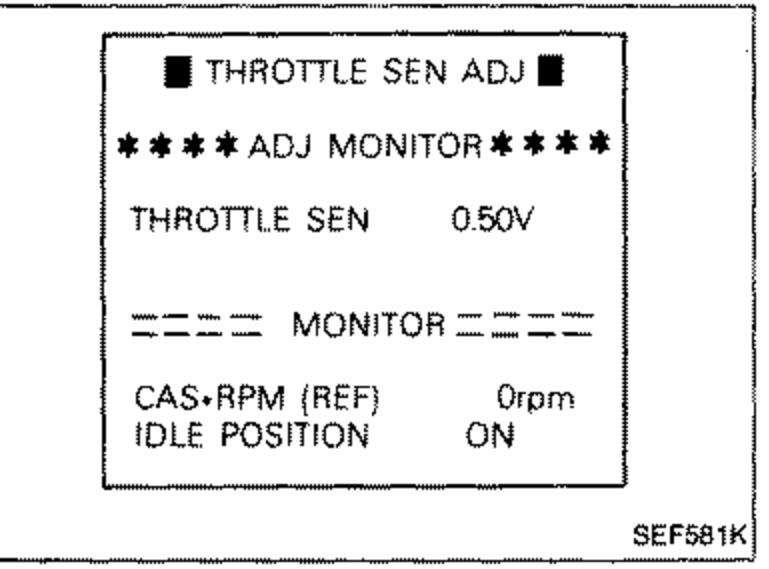

Perform "THROTTLE SEN ADJ" in "WORK SUPPORT" mode. Measure output voltage of throttle sensor using voltmeter.
SEF561K
5

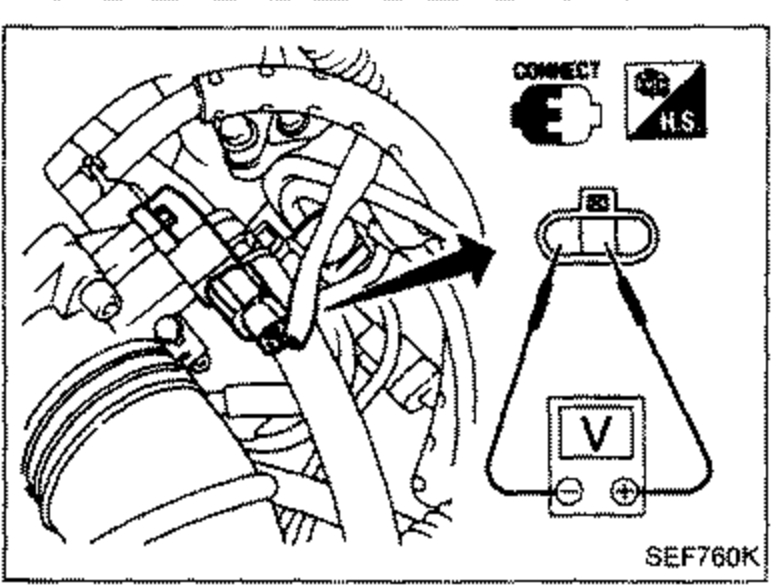

Adjust by rotating throttle sensor body so that output voltage is 0.45 to 0.55V.
SEF760K
6
Tighten mounting bolts.
7
Disconnect throttle sensor harness connector for a few seconds and then reconnect it.
