ENGINE AND EMISSION CONTROL PARTS LOCATION — Component Parts Location (Models Without Catalyzer)

EF & EC-7component photo

GA13DS, GA14DS & GA16DS engines (carbureted), models without catalyzer. Activated carbon canister only for Gulf standard.

Component Parts Location

Models Without Catalyzer

Component LocationFig. fig1

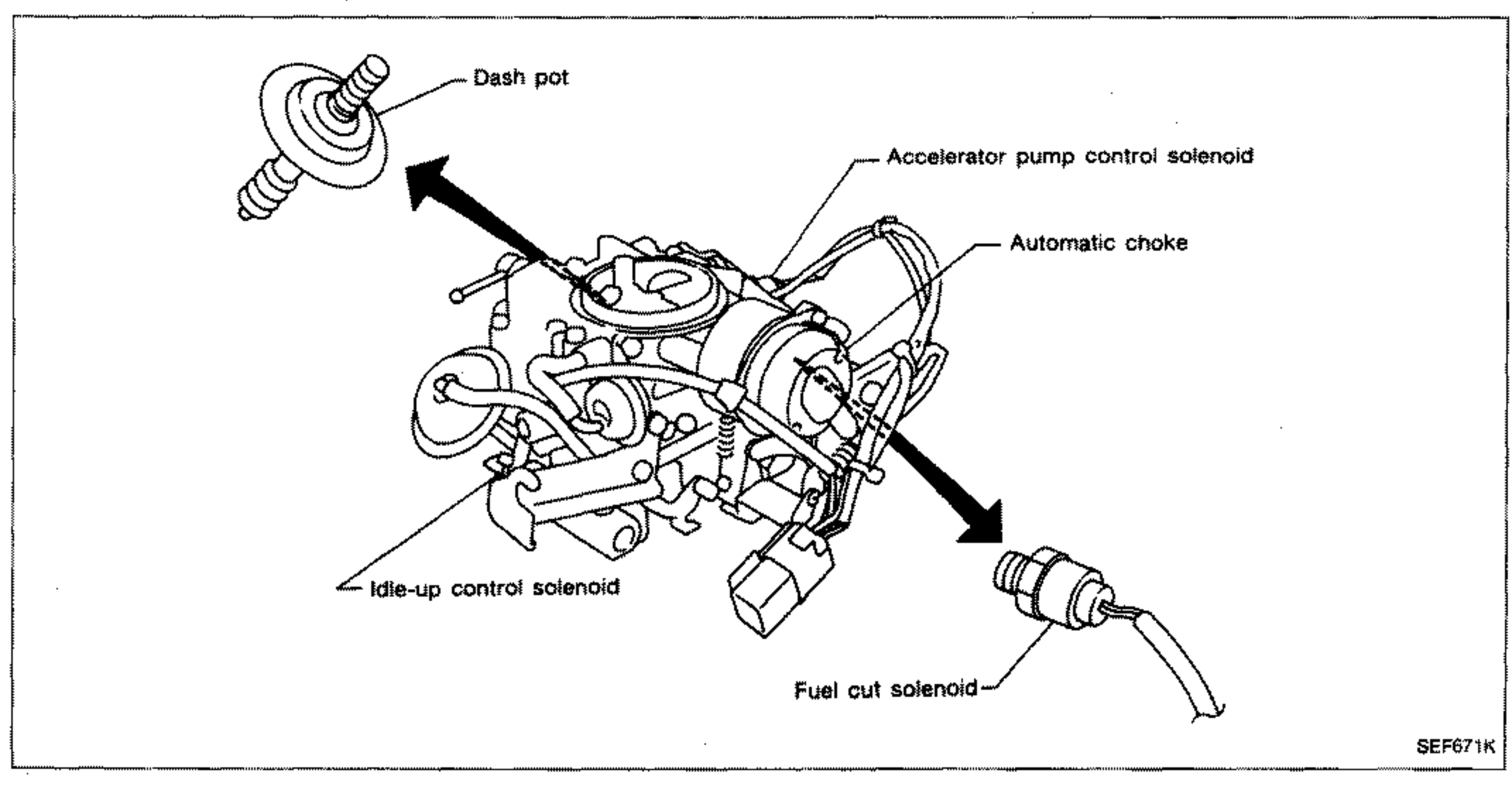

Carburetor component detail (SEF671K): dash pot, accelerator pump control solenoid, automatic choke, idle-up control solenoid, fuel cut solenoid.

Detailed view of the carburetor assembly with callout arrows. Top-left detail (arrow) shows the dash pot. Right callouts: accelerator pump control solenoid, automatic choke. Bottom callouts: idle-up control solenoid (left), fuel cut solenoid (right detail via arrow).
SEF671K
1Dash pot(upper-left detail)
2Accelerator pump control solenoid(right)
3Automatic choke(right)
4Idle-up control solenoid(lower-left)
5Fuel cut solenoid(lower-right detail)
Component LocationFig. fig2

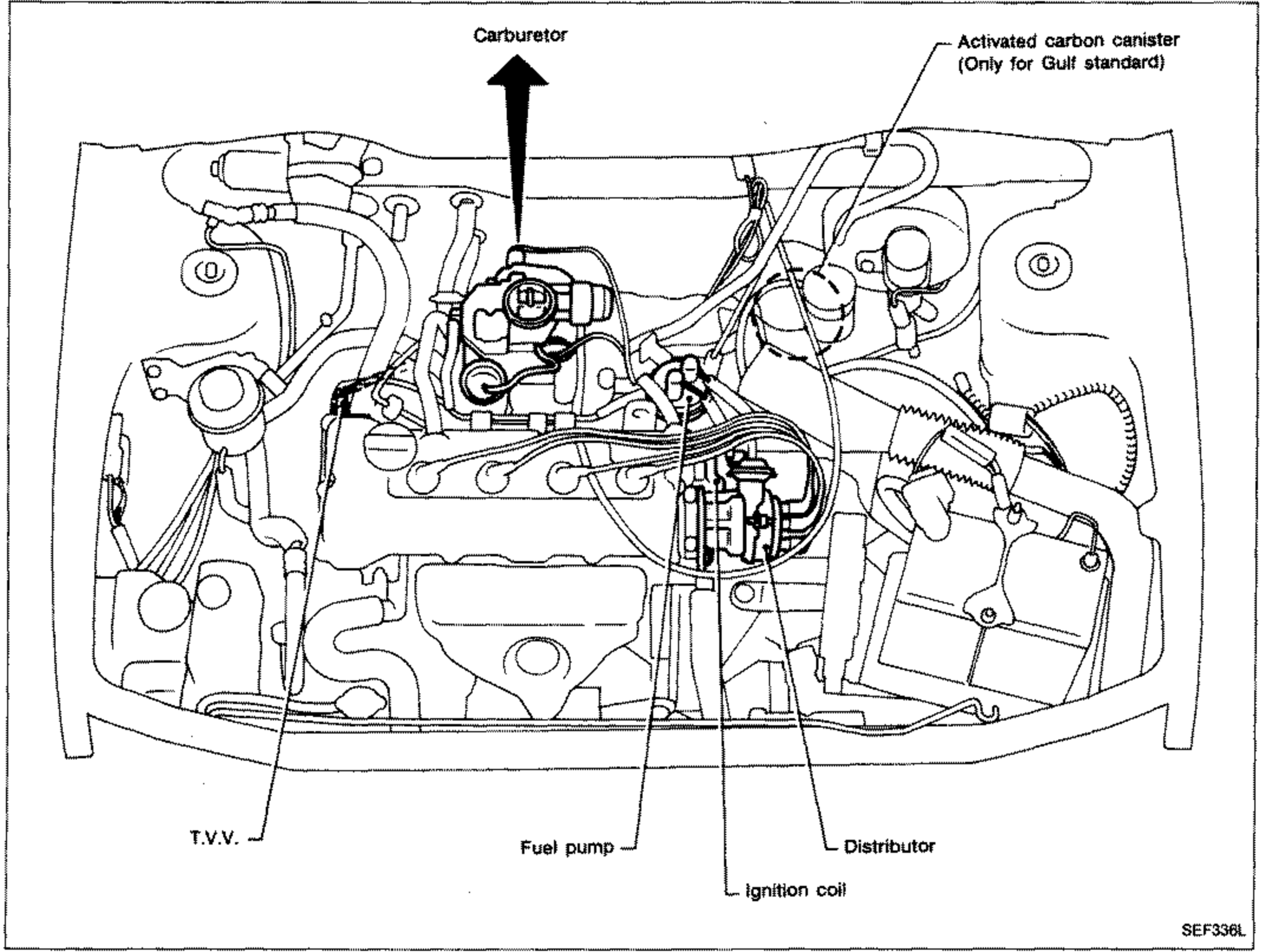

Engine compartment layout (SEF336L): carburetor, activated carbon canister (Only for Gulf standard), T.V.V., fuel pump, ignition coil, distributor.

Underhood/engine-compartment view (front of vehicle) showing component locations. Callouts: carburetor (center, arrow), activated carbon canister (Only for Gulf standard) (upper right), T.V.V. (lower left), fuel pump (lower center), ignition coil (lower center), distributor (lower center-right).
SEF336L
1Carburetor(center)
2Activated carbon canister (Only for Gulf standard)(upper right)
3T.V.V.(lower left)
4Fuel pump(lower center)
5Ignition coil(lower center)
6Distributor(lower center-right)
