Quick-Glow System - Component Parts Basic Check (Cont'd) - Power Supply for Glow Control Unit

EF & EC-714prose procedure

Terminal numbers differ between base models and models with E.G.R. (second terminal column). "S" terminal of starter motor must be disconnected.

Continued from EF & EC-713

Component Parts Basic Check (Cont'd)

Power Supply for Glow Control Unit

  1. 1
    Disconnect "S" terminal for starter motor to prevent engine from cranking.
  2. 2
    Disconnect glow control unit harness connector.
  3. 3
    Check terminal(s) 13 (Models with E.G.R.: 5, 6, 25 and 35 ) for ground continuity.
    Continuity should exist (0Ω).
    If N.G., check ground harness.

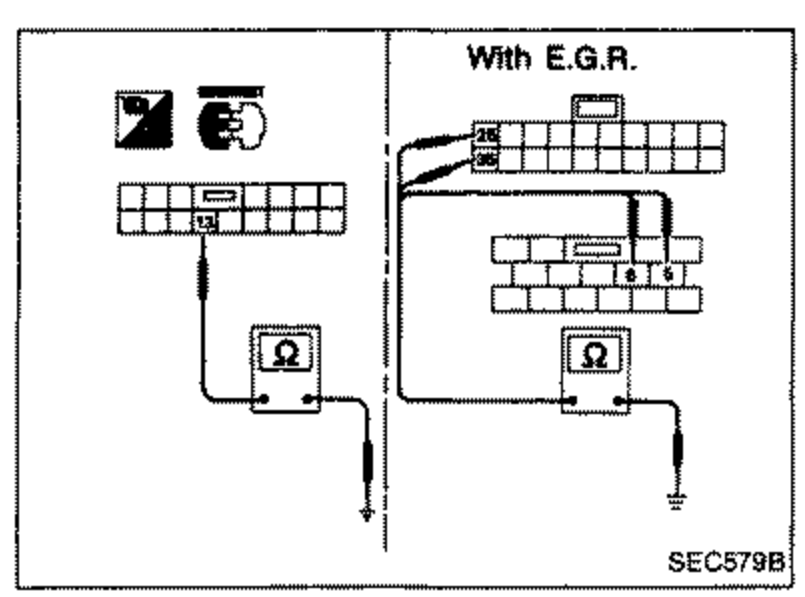

    Connector/terminal diagram labelled 'With E.G.R.' showing harness connectors with a resistance/continuity meter symbol (Ω) connected at two points. Top-left of the four stacked diagrams illustrating ground continuity check.
    SEC579B
  4. 4
    Check voltage at each terminal according to the following chart.
    If N.G., check component parts and their related harness according to the following chart.

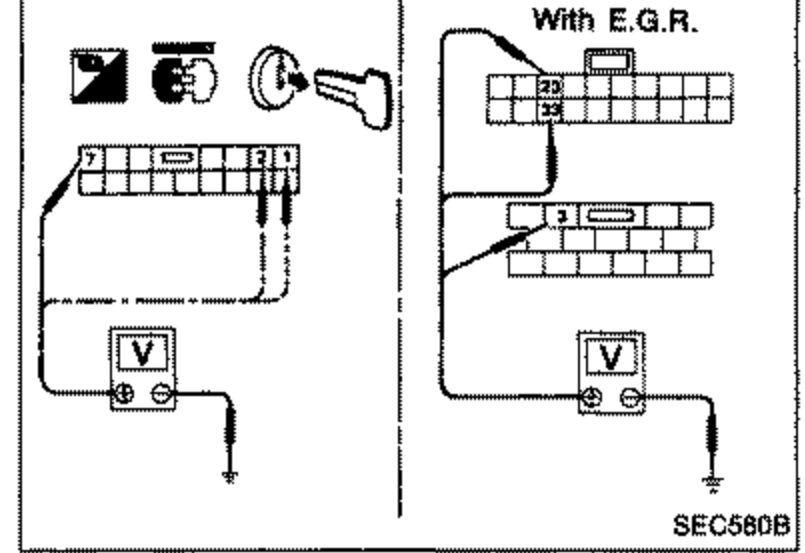

    Connector/terminal diagram labelled 'With E.G.R.' showing harness connectors with voltmeter (V) symbols connected at two points, illustrating voltage check at terminals.
    SEC580B

Voltage Check at Each Terminal

2
Terminal No. (E.G.R.)23
Ignition switch positionOFF (Not inserted)
VoltageBattery voltage
7
Terminal No. (E.G.R.)3
Ignition switch positionOFF (Not inserted)
VoltageBattery voltage
1
Terminal No. (E.G.R.)43
Ignition switch positionOFF (Not inserted)
VoltagePOWER
1
Terminal No. (E.G.R.)43
Ignition switch positionOFF (Inserted)
VoltageBattery voltage
3
Terminal No. (E.G.R.)24, 54
Ignition switch positionOFF
Voltage0V
3
Terminal No. (E.G.R.)24, 54
Ignition switch positionON / START
VoltageBattery voltage
14
Terminal No. (E.G.R.)14
Ignition switch positionOFF
Voltage0V
14
Terminal No. (E.G.R.)14
Ignition switch positionON / START
VoltageBattery voltage
14
Terminal No. (E.G.R.)14
Ignition switch positionOFF / ON
Voltage0V
8
Terminal No. (E.G.R.)15
Ignition switch positionSTART
VoltageBattery voltage

Parts Which Should Be Checked If N.G.

2
Terminal No. (E.G.R.)23
BatteryX
Fuse/Fusible linkX
Glow relay
Key-in switch
Ignition switch
Glow indicator bulb
HarnessX
7
Terminal No. (E.G.R.)3
BatteryX
Fuse/Fusible linkX
Glow relayX
Key-in switch
Ignition switch
Glow indicator bulb
HarnessX
1
Terminal No. (E.G.R.)43
BatteryX
Fuse/Fusible linkX
Glow relay
Key-in switchX
Ignition switch
Glow indicator bulb
HarnessX
3
Terminal No. (E.G.R.)24, 54
BatteryX
Fuse/Fusible linkX
Glow relay
Key-in switch
Ignition switchX
Glow indicator bulb
HarnessX
8
Terminal No. (E.G.R.)15
BatteryX
Fuse/Fusible linkX
Glow relay
Key-in switch
Ignition switchX
Glow indicator bulb
HarnessX
