VE-Type Injection Pump - Disassembly (Cont'd)

EF & EC-672prose procedure

VE-type injection pump applies to CD20 diesel engine.

Continued from EF & EC-671

Disassembly

  1. 5
    Remove governor shaft.

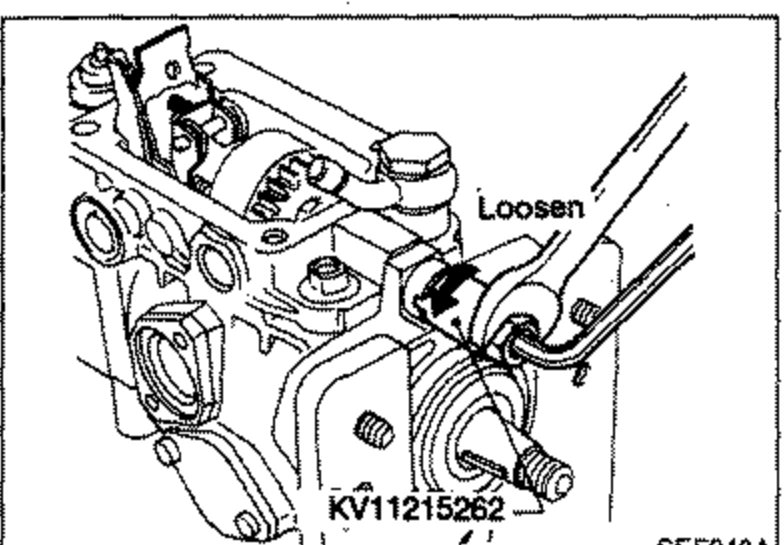

    Loosen lock nut by turning it counterclockwise.
    Tool KV11215262 engaged on the governor shaft with a 'Loosen' label and arrow showing the counterclockwise loosening direction of the lock nut.
    SEF848A
  2. 6
    Remove governor sleeve, washer and flyweight, along with flyweight holder, then remove washer and shim(s).
    Hand removing the governor sleeve, washer and flyweight along with flyweight holder from the pump.
    SEF466
  3. 7

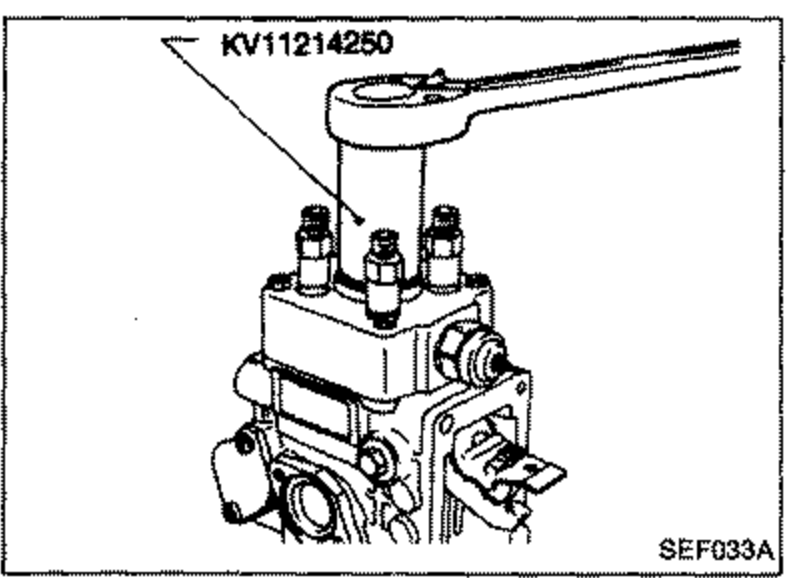

    Remove plug.
    Tool KV11214250 fitted on the pump top to remove the plug.
    SEF033A
  4. 8

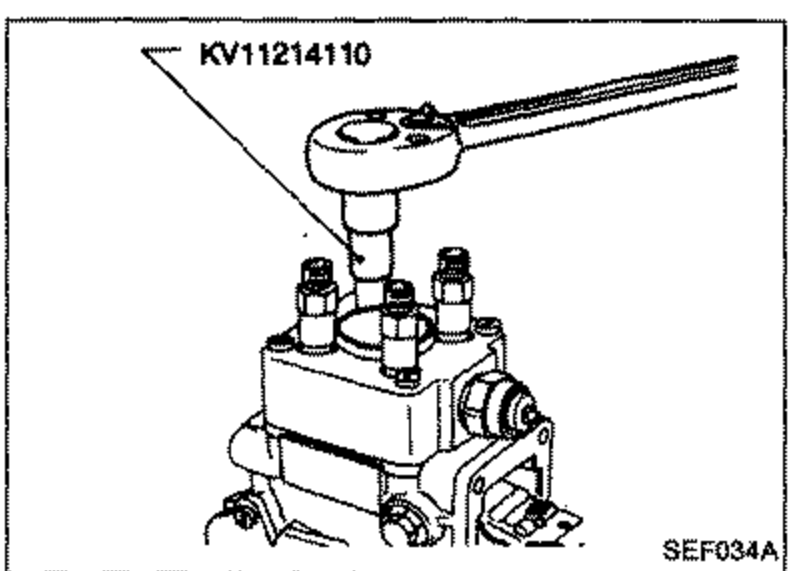

    Remove delivery holder, spring, delivery valve and gasket.
    Distributor head has letters (A, B, C and D) stamped on it. Remove lettered parts in alphabetical order and arrange neatly.
    Tool KV11214110 fitted on the pump top to remove the delivery holder, spring, delivery valve and gasket.
    SEF034A
  5. 9

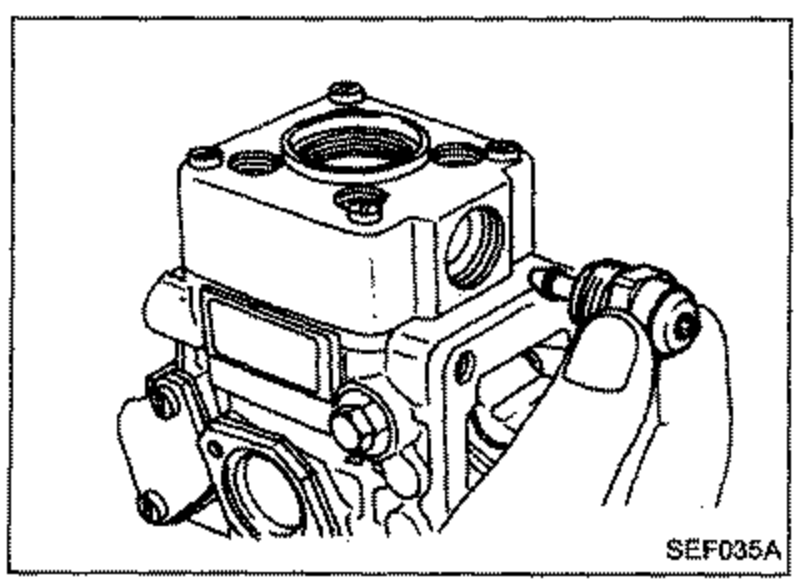

    Remove fuel cut solenoid valve.
    Pump with a tool removing the fuel cut solenoid valve from the side.
    SEF035A
