Engine and Emission Control Overall System - E.C.C.S. Component Parts Location (Cont'd)

EF & EC-360component photo

Page applies to SR20DE engine. Exhaust gas sensor fitted only on models with catalyzer.

E.C.C.S. Component Parts Location (Cont'd)

Component LocationFig. fig1

Six close-up engine compartment photos showing the physical location of E.C.C.S. components on the SR20DE engine.

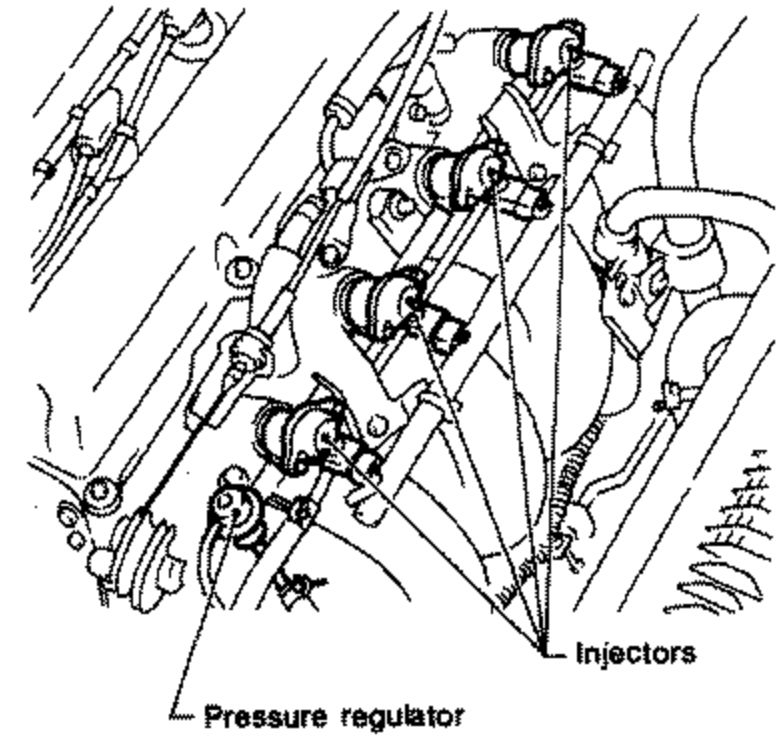

1Pressure regulator(fig1, top-left photo)

2Injectors(fig1, top-left photo)

3Engine temperature sensor(fig2, top-right photo)

4F.I.C.D. solenoid valve(fig2, top-right photo)

5A.A.C. valve(fig2, top-right photo)

6Air Regulator(fig3, middle-left photo)

7Front exhaust tube(fig3, middle-left photo)

8Crank angle sensor built into distributor(fig4, middle-right photo)

9Throttle sensor(fig4, middle-right photo)

10Power transistor(fig4, middle-right photo)

11Ignition coil(fig4, middle-right photo)

12Detonation sensor(fig5, bottom-left photo)

13Front exhaust tube(fig5, bottom-left photo)

14Exhaust gas sensor (Models with catalyzer only)(fig6, bottom-right photo)

15Front exhaust tube(fig6, bottom-right photo)
