Carburetor - Idle-up Control (Cont'd) / Fuel Cut Solenoid Valve (Models without catalyzer)

EF & EC-172prose procedure

Applies to models without catalyzer.

Idle-up Control (Models without catalyzer) (Cont'd)

This system prevents poor battery charging and erratic idling when the following load switches are operating: Headlamps; Rear defogger; Blower motor; Power steering switch. In this system, the proper fuel is added when solenoid valve attached to carburetor is in the "ON" position.

INSPECTION

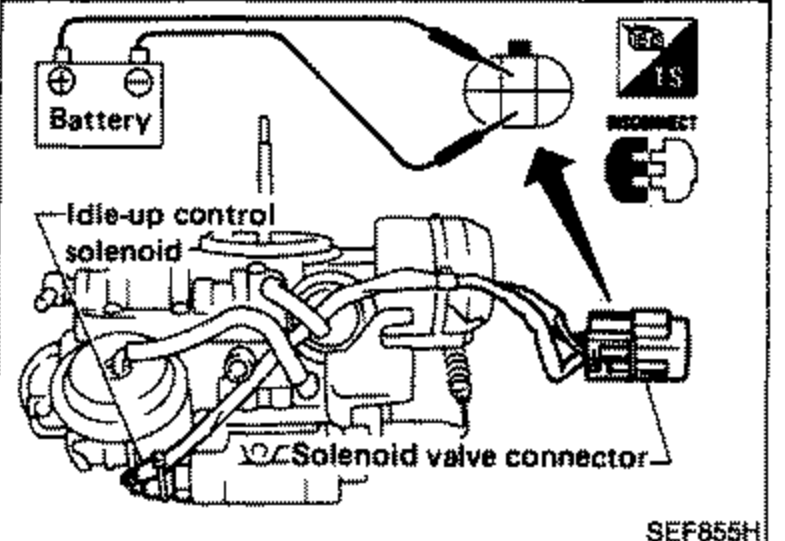

Idle-up control solenoid valve

1
Connect solenoid valve connector to battery.
SEF855H
2
Check "click" sound from solenoid valve when battery is connected and disconnected.
3
If no sound is heard from solenoid valve, replace with a new one. 1) Disconnect harness from harness connector. 2) Remove solenoid valve from carburetor. 3) Install new solenoid valve. After replacement, check that solenoid valve is in good condition.

Fuel Cut Solenoid Valve (Models without catalyzer)

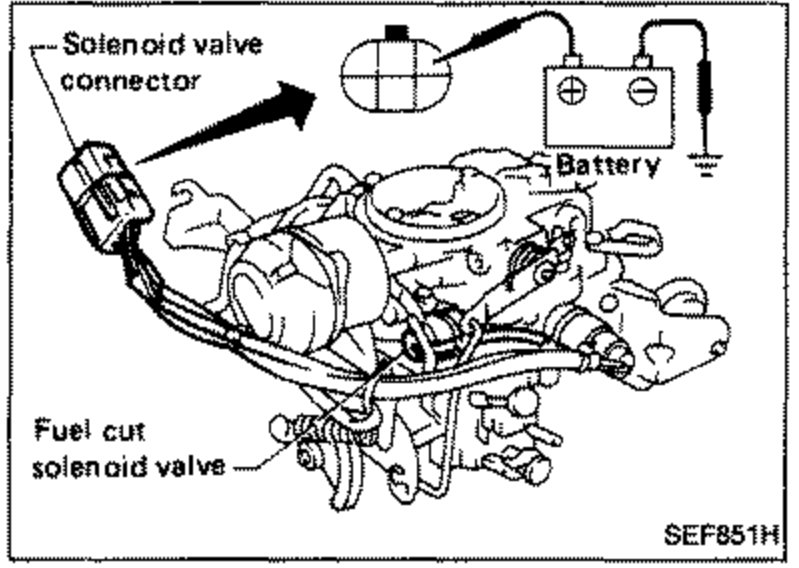

Fuel Cut Solenoid Valve

1
Connect solenoid valve connector to battery.
SEF851H
2
Check "click" sound from solenoid valve when battery is connected and disconnected.
3
If no sound is heard from fuel cut solenoid valve, replace with a new one. 1) Disconnect harness from harness connector. 2) Remove fuel cut solenoid valve from carburetor. 3) Install new fuel cut solenoid valve.

IMPORTANT

After replacement, start engine and check that fuel cut solenoid is in good condition.
