ENGINE AND EMISSION CONTROL PARTS LOCATION — Models With Catalyzer and E.G.R. (Cont'd)
EF & EC-11component photoGA13DS/GA14DS/GA16DS engines, models with catalyzer and E.G.R. Items marked * are for models with catalyzer only.
Models With Catalyzer and E.G.R. (Cont'd)
Component LocationFig. fig1
Detail views of component locations for models with catalyzer and E.G.R.: activated carbon canister (SEF341L); B.P.T. valve, E.G.R. control valve, A.I.V. control solenoid valve, ignition coil (SEF813L); idle-up control solenoid (SEF292K); fuel cut solenoid, accelerator pump control solenoid (SEF476K); E.G.R. & canister control solenoid valve (SEF331L); E.C.C. control unit (SEF332L).
SEF341L

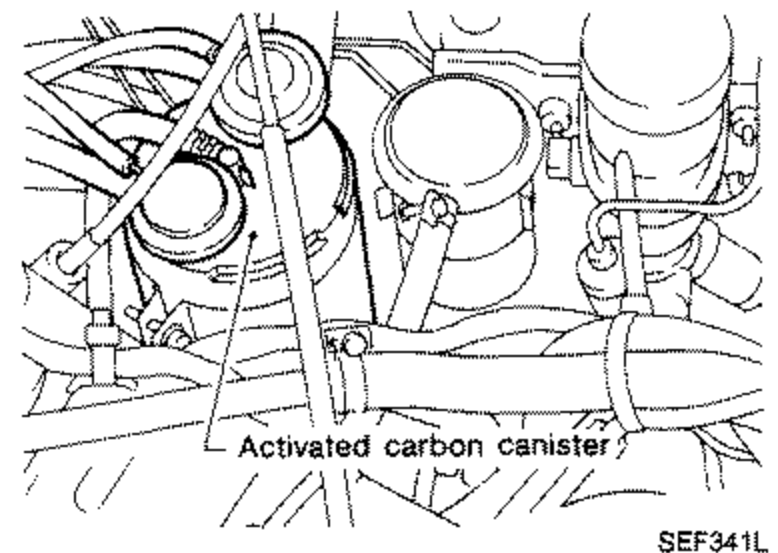

1Activated carbon canister(SEF341L)
2*B.P.T. valve(SEF813L)
3*E.G.R. control valve(SEF813L)
4A.I.V. control solenoid valve(SEF813L)
5Ignition coil(SEF813L)
6Idle-up control solenoid(SEF292K)
7Fuel cut solenoid(SEF476K)
8Accelerator pump control solenoid(SEF476K)
9E.G.R. & canister control solenoid valve*(SEF331L)
10E.C.C. control unit*(SEF332L)
NOTE
*For models with catalyzer only
