VE-TYPE INJECTION PUMP — Assembly (Cont'd)

EF & EC-684prose procedure

CD20 diesel engine (VE-type injection pump).

Continued from EF & EC-683

Assembly (Cont'd)

  1. (2)

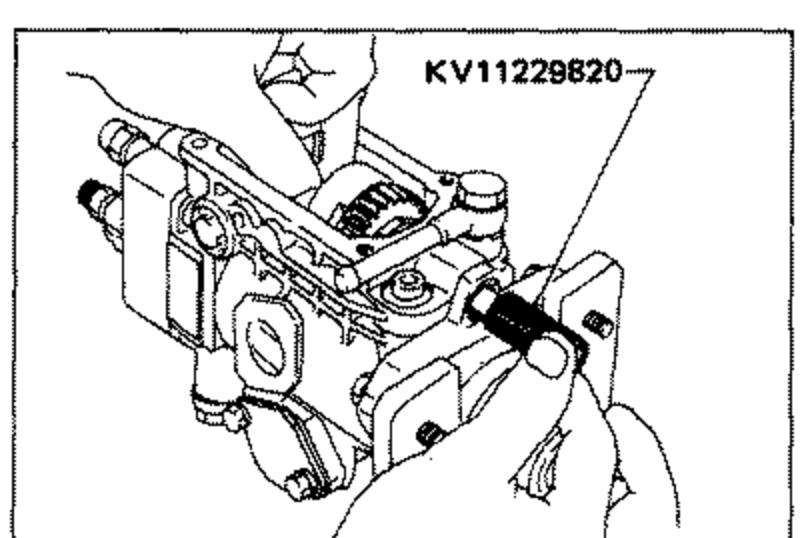

    Install Tool and flyweight assembly in place of governor shaft.
    Be sure to install shim and washer when installing flyweight assembly.
    Tool KV11229820 and flyweight assembly being installed in place of the governor shaft on the injection pump. Callout label reads 'KV11229820' pointing to the tool.
    SEF199A
  2. (3)

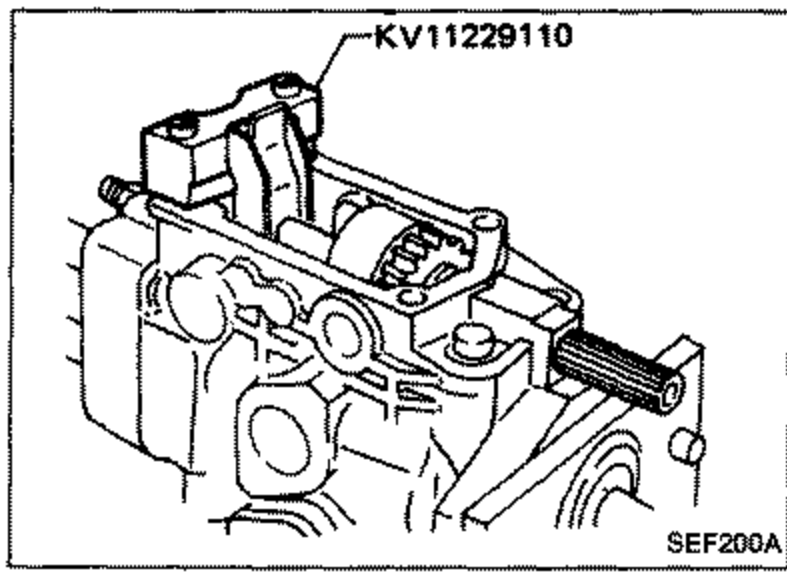

    Set Tool, as shown.
    Tool KV11229110 set on the injection pump as shown. Callout label reads 'KV11229110'.
    SEF200A
  3. (4)

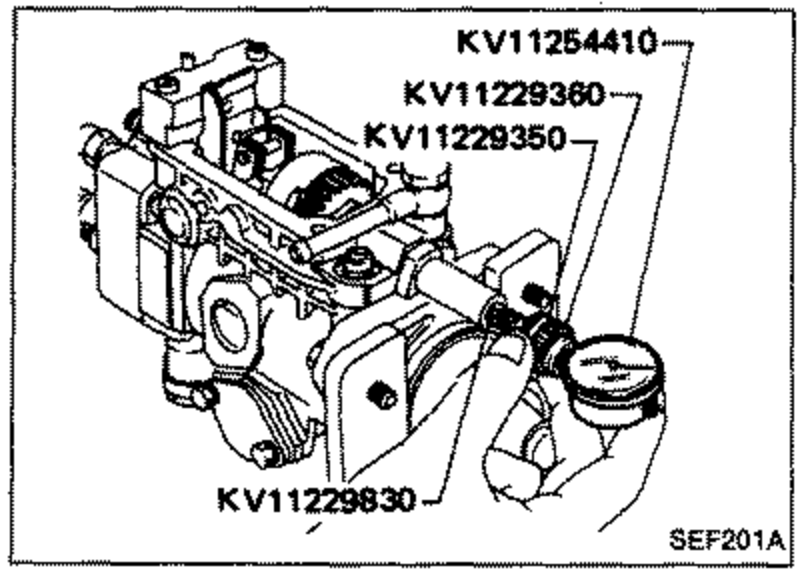

    Install dial gauge together with rod.
    Dial gauge installed together with rod on the injection pump. Callout labels read 'KV11254410', 'KV11229360', 'KV11229350', and 'KV11229830' pointing to the dial gauge, rods and fittings.
    SEF201A
  4. (5)

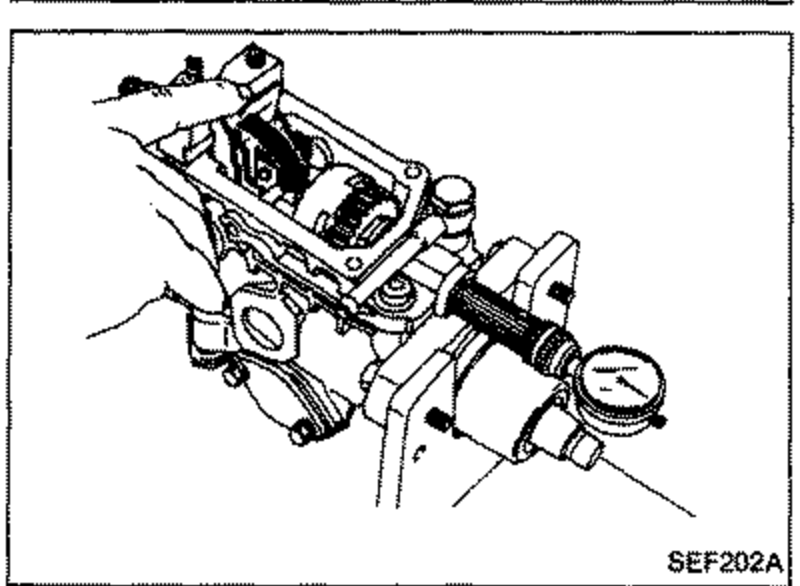

    Press governor sleeve to flyweight and set dial gauge to "0".
    Governor sleeve pressed to flyweight with dial gauge set to '0'. Shows the injection pump with dial gauge mounted.
    SEF202A
  5. (6)

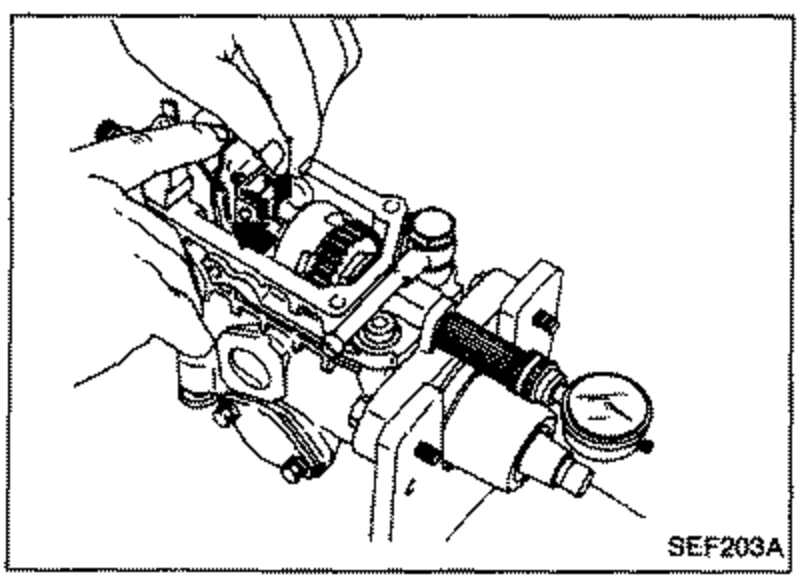

    Push tension lever until it contacts stopper pin. Return governor sleeve until start lever contacts tension lever, and read dial gauge.
    Refer to S.D.S. for "MS".
    Tension lever pushed until it contacts stopper pin; governor sleeve returned until start lever contacts tension lever, with dial gauge mounted to read the value.
    SEF203A
