E.C.C. TROUBLE DIAGNOSES (Models with catalyzer) — Electrical Components Inspection (Cont'd)

EF & EC-147prose procedure

GA13DS, GA14DS & GA16DS engines (models with catalyzer).

Continued from EF & EC-146

Electrical Components Inspection (Cont'd)

NEUTRAL SWITCH

  1. 1
    Disconnect neutral switch harness connector.
  2. 2
    Check continuity between terminals.

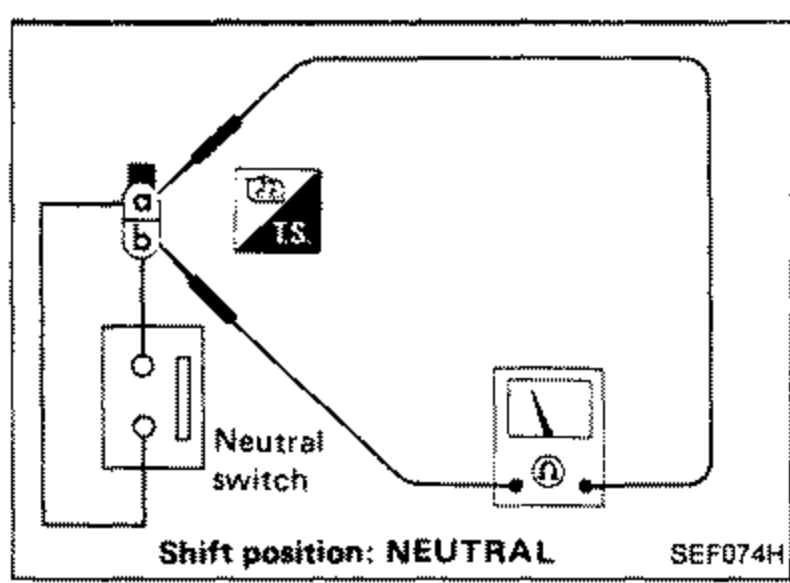

    Neutral switch harness connector with an ohmmeter (Ω) symbol indicating continuity check between terminals, with shift position set to NEUTRAL. Labeled 'Neutral switch' and 'Shift position: NEUTRAL'.
    SEF074H

Neutral switch continuity

Shift to "Neutral"
Continuity between terminals Ⓐ and ⒷYes
Shift to other positions
Continuity between terminals Ⓐ and ⒷNo
If N.G., replace neutral switch.

CLUTCH SWITCH

  1. 1
    Disconnect clutch switch harness connector.
  2. 2
    Check continuity between terminals.

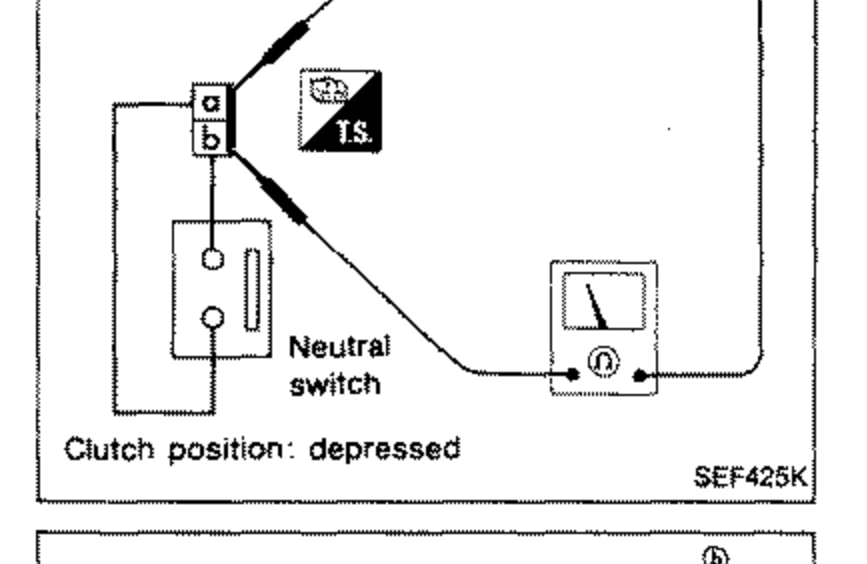

    Clutch switch / neutral switch harness connector with an ohmmeter (Ω) symbol indicating continuity check, with clutch position depressed. Labeled 'Neutral switch' and 'Clutch position: depressed'.
    SEF425K

Clutch switch continuity

Released
Continuity between terminals Ⓒ and ⒹYes
Depressed
Continuity between terminals Ⓒ and ⒹNo
If N.G., replace clutch switch.

E.C.C. RELAY

  1. 1
    Disconnect E.C.C. relay.
  2. 2
    Check continuity between terminals Ⓒ and Ⓓ as shown below.

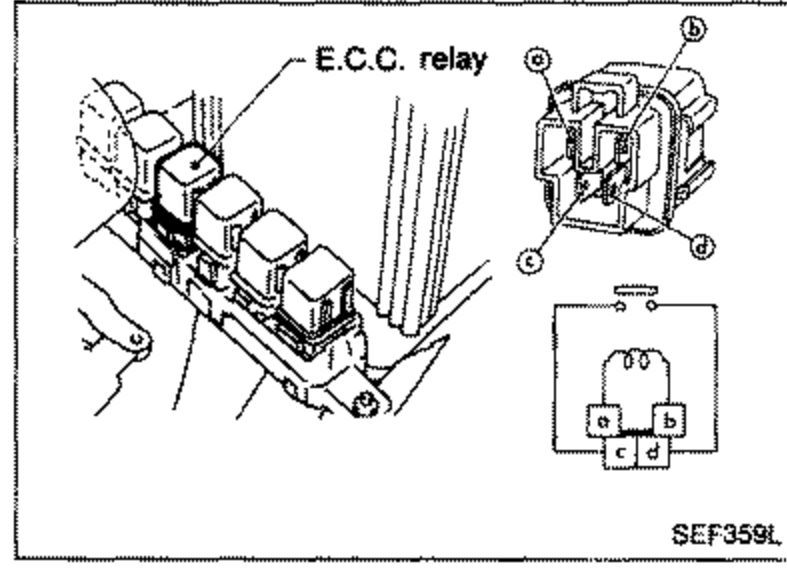

    E.C.C. relay shown in its mounting and as a separate relay diagram with terminals, illustrating continuity check between terminals c and d. Labeled 'E.C.C. relay'.
    SEF359L

E.C.C. relay continuity

12V direct current supplied between terminals Ⓐ and Ⓑ
Continuity between terminals Ⓒ and ⒹYes
No supply
Continuity between terminals Ⓒ and ⒹNo
If N.G., replace E.C.C. relay.

AIR-FUEL RATIO CONTROL SOLENOID VALVE

  1. 1
    Disconnect solenoid harness connector.
  2. 2
    Check continuity between terminals. If N.G., replace air-fuel ratio control solenoid valve.

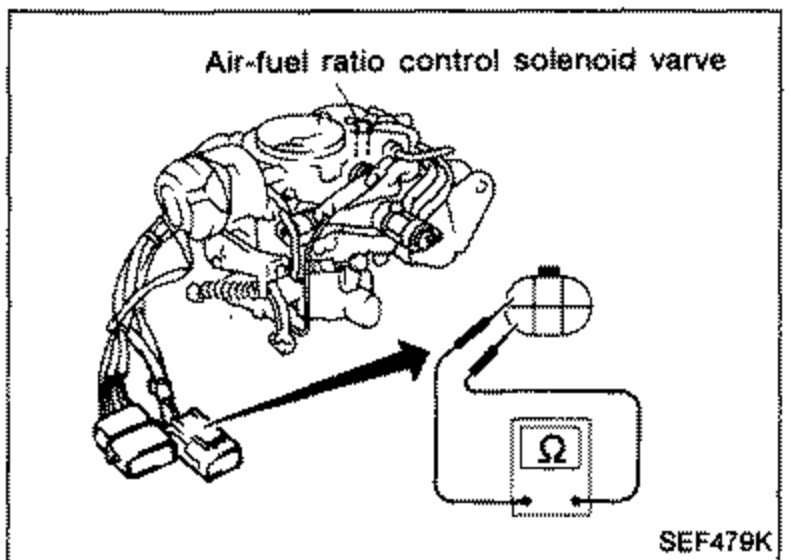

    Air-fuel ratio control solenoid valve on the engine with an ohmmeter (Ω) symbol indicating continuity check between terminals. An arrow points to the solenoid valve. Labeled 'Air-fuel ratio control solenoid varve' [sic].
    SEF479K
