ENGINE AND EMISSION CONTROL PARTS LOCATION — GA14DS With Catalyzer Without E.G.R.
EF & EC-8component photoGA14DS engine with catalyzer, without E.G.R.
GA14DS With Catalyzer Without E.G.R.
Component LocationFig. fig1

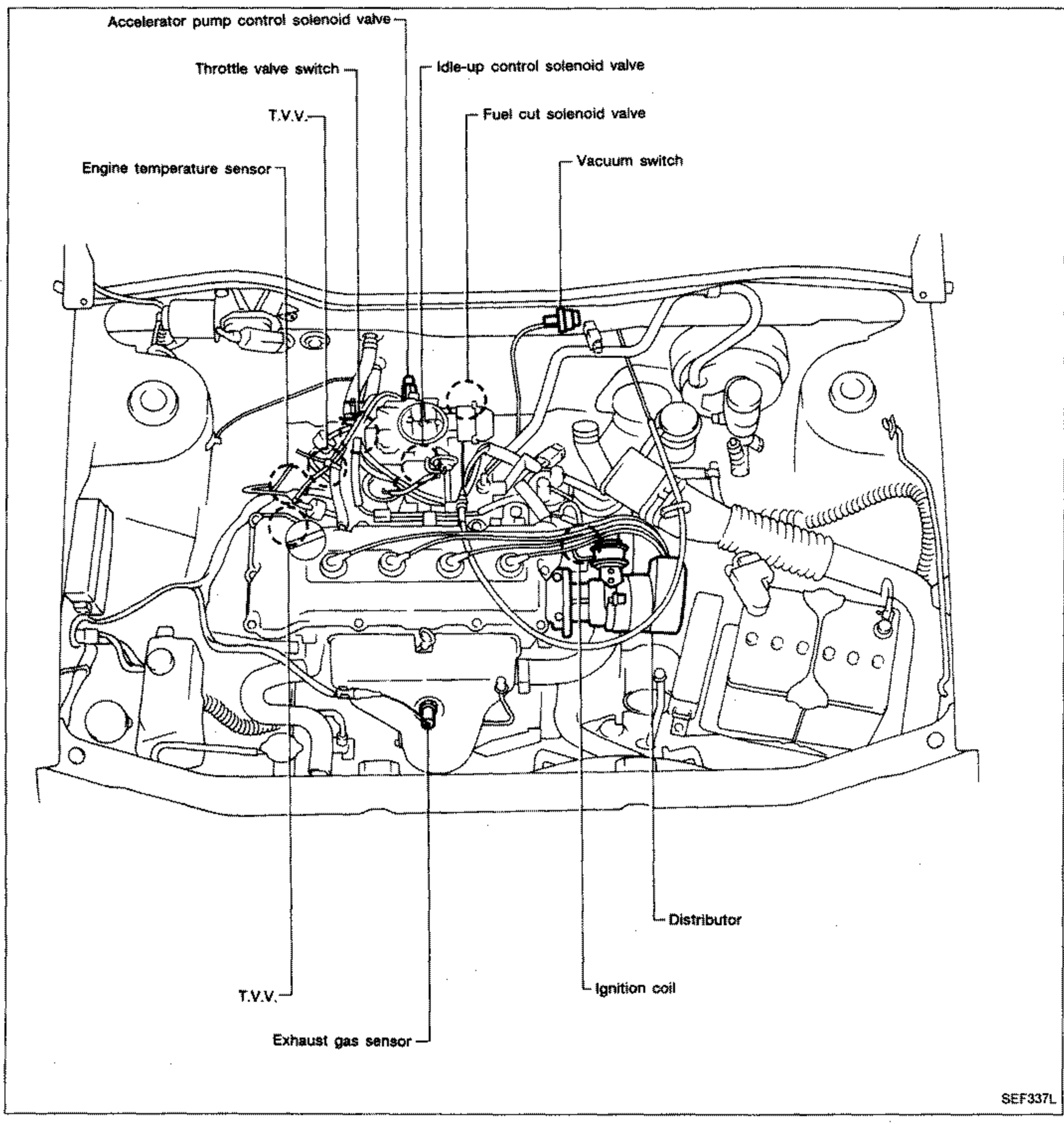

Engine compartment layout for GA14DS with catalyzer without E.G.R. (SEF337L).
SEF337L
1Accelerator pump control solenoid valve(top left)
2Throttle valve switch(top left)
3T.V.V.(top left)
4Engine temperature sensor(upper left)
5Idle-up control solenoid valve(top center)
6Fuel cut solenoid valve(top center)
7Vacuum switch(top center-right)
8Distributor(lower right)
9Ignition coil(lower center)
10Exhaust gas sensor(lower left)
11T.V.V.(lower left)
