ELECTRIC FUEL PUMP CONTROL SYSTEM (4WD models) - Inspection (Cont'd): Fuel Pressure Check
EF & EC-182prose procedureElectric fuel pump control system applies to 4WD models (GA13DS/GA14DS/GA16DS).
Inspection (Cont'd)
Fuel Pressure Check

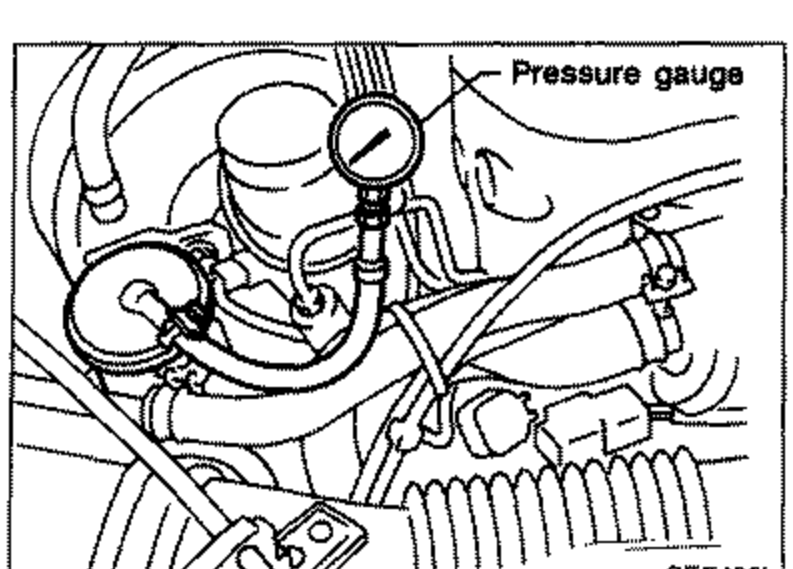

- 1Connect a suitable fuel pressure gauge.
SEF400L - 2Check fuel pressure. If fuel pressure or fuel quantity is extremely low, check if fuel filter is clogged.Fuel pressure (Approximately): 14.7 kPa (0.147 bar, 0.15 kg/cm2, 2.1 psi)
| Specification | Value |
|---|---|
| Fuel pressure (Approximately)0.147 bar, 0.15 kg/cm2, 2.1 psi | 14.7kPa |
Fuel pressure (Approximately)0.147 bar, 0.15 kg/cm2, 2.1 psi
14.7kPa
