VE-TYPE INJECTION PUMP - Assembly (Cont'd)

EF & EC-681prose procedure

VE-type injection pump applies to CD20 diesel engine.

Continued from EF & EC-680

Assembly (Cont'd)

VE-Type Injection Pump Assembly (Cont'd)

  1. 15

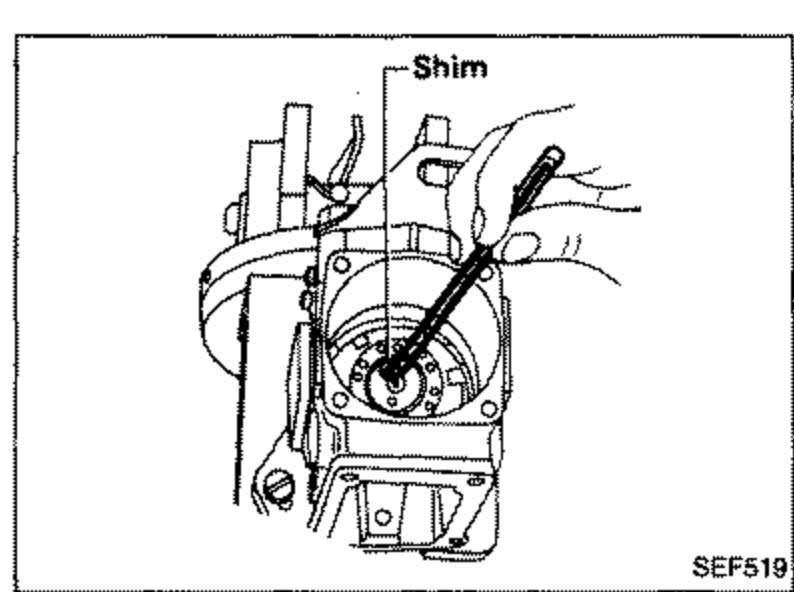

    (3) Determine shim to be used by calculating difference between measured (dial gauge reading) value and standard dimension "K", and position that shim on plunger's bottom. Refer to S.D.S. for "K".
    a. When measured value is greater than standard dimension "K", use a thicker shim.
    b. After shim has been positioned, measure dimension again to ensure that it is correct.
    c. Refer to S.D.S. for available service parts.
    Shim being positioned on plunger's bottom with a tool. Label: Shim.
    SEF519
  2. 16

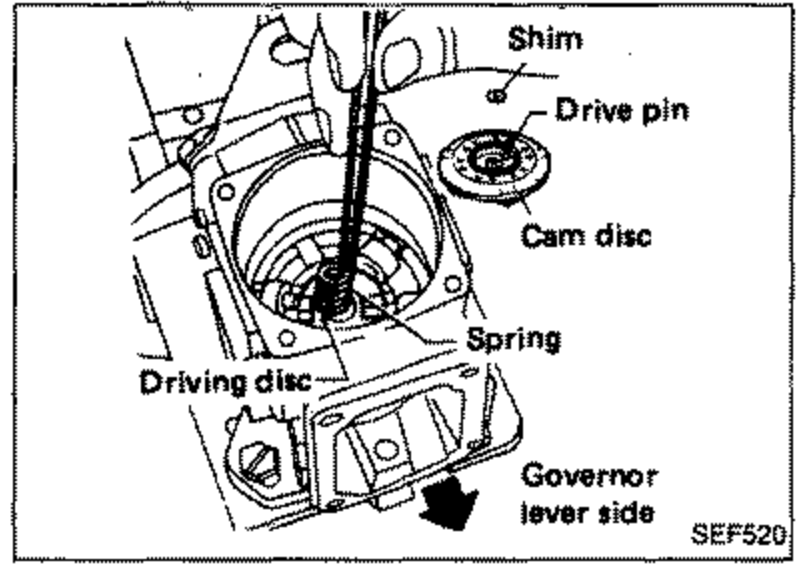

    Install spring in top of driving disc, and install cam disc and shim in that order.
    Make sure cam disc drive pin and drive shaft key way face governor lever side.
    Driving disc assembly showing installation of spring and cam disc. Labels: Shim, Drive pin, Cam disc, Spring, Driving disc, Governor lever side.
    SEF520
  3. 17

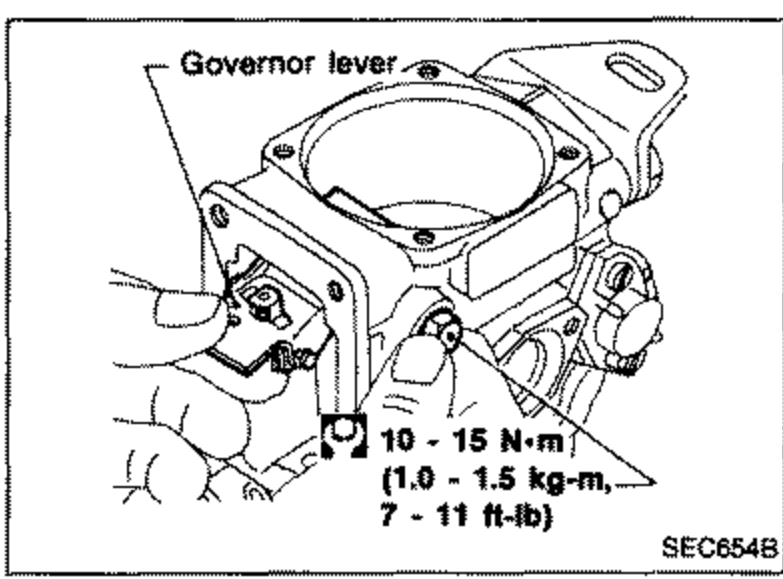

    Install governor lever.
    Avoid pulling on start spring and start idle spring.
    Governor lever installation. Torque callout: 10 - 15 N-m (1.0 - 1.5 kg-m, 7 - 11 ft-lb). Label: Governor lever.
    SEC654B
  4. 18

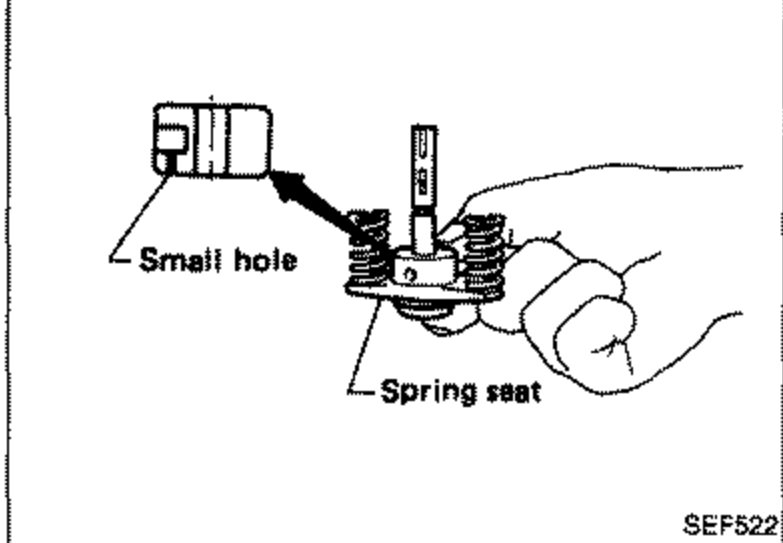

    Install plunger assembly.
    a. Make sure control sleeve is installed with its small hole facing spring seat side.
    Plunger assembly installation showing the control sleeve. Labels: Small hole, Spring seat.
    SEF522
