Carburetor - Automatic Choke (Cont'd)

EF & EC-165prose procedure

Relay location shown for R.H.D., L.H.D. and Hatchback R.H.D. variants. Voltmeter check shown for models with and without catalyzer. Applies to GA13DS, GA14DS & GA16DS.

Continued from EF & EC-164

Automatic Choke (Cont'd)

Automatic Choke Mechanical Check (Cont'd)

3

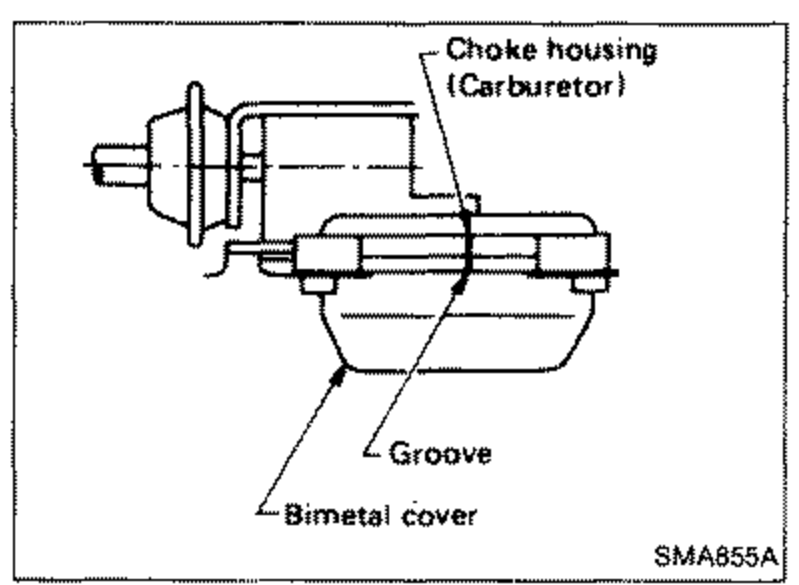

Make sure bimetal cover index mark is aligned with center of choke housing index mark.
SMA855A
4
Check wiring connection, and start engine.
5
After warming up engine, ensure that choke valve is fully open. If not, check automatic choke circuit and heater.

ENTIRE SYSTEM

CAUTION

Do not attach test leads of a circuit tester to those other than designated.

Entire System Check

1
Start engine.
2

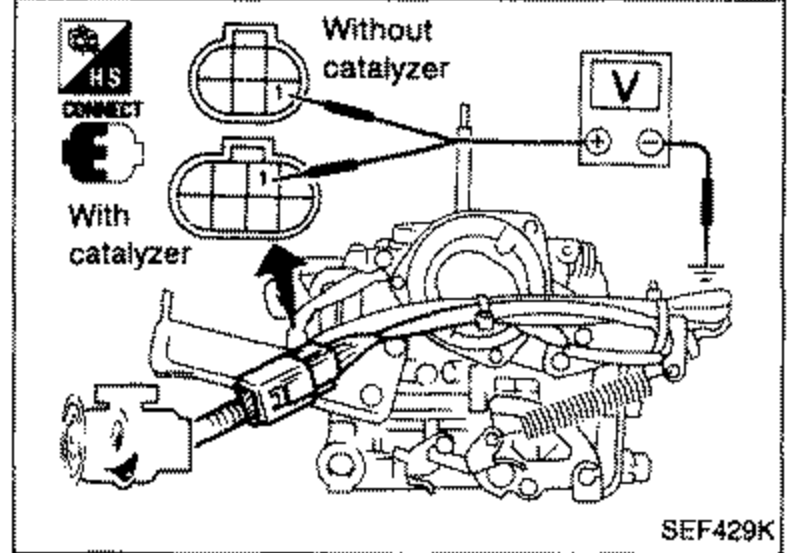

Check voltage between terminal 1 and ground, with engine running. If no voltage appears, check the following items: Automatic choke relay; Automatic choke circuit; Fuse.
Voltage: Approximately 9 - 12V
SEF429K

Specification	Value
Voltage (terminal 1 to ground, engine running)engine running	Approximately 9 - 12V

Voltage (terminal 1 to ground, engine running)engine running

Approximately 9 - 12V

AUTOMATIC CHOKE RELAY

Check relay for proper operation.
