VE-TYPE INJECTION PUMP - Assembly (Cont'd)

EF & EC-678prose procedure

CD20 diesel engine VE-type injection pump.

Continued from EF & EC-677

Assembly (Cont'd)

  1. 6

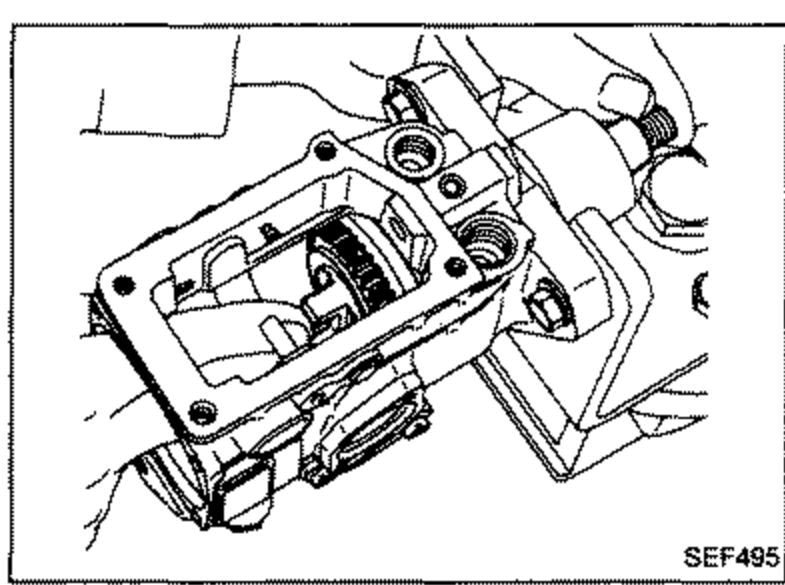

    Set drive shaft's nail parallel to timer.
    Top view of the pump body showing the drive shaft's nail set parallel to the timer.
    SEF495
  2. 7

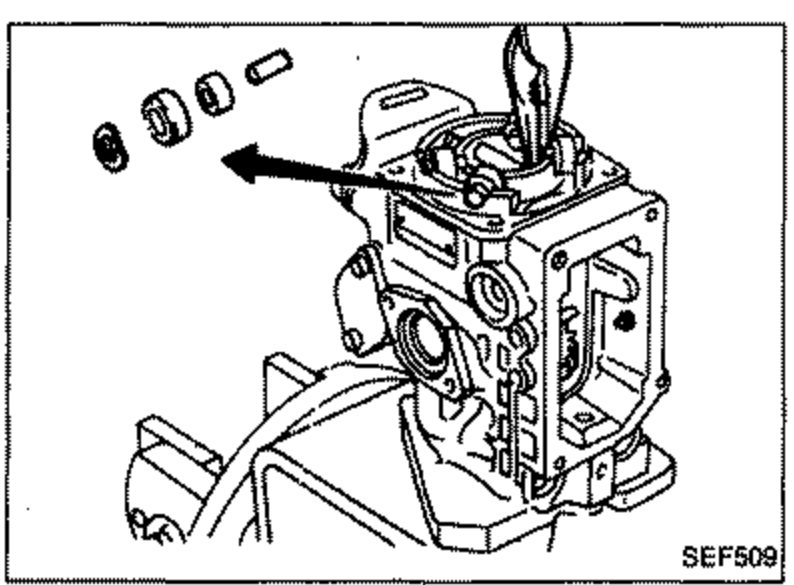

    Install roller and holder.
    a. Do not interchange roller positions. If they are interchanged, refer to Inspection for correction.
    b. Make sure washer is situated outward of rollers.
    Roller and holder being installed into the pump body. An exploded row of rollers is shown at upper left with an arrow indicating installation into the holder.
    SEF509
  3. 8

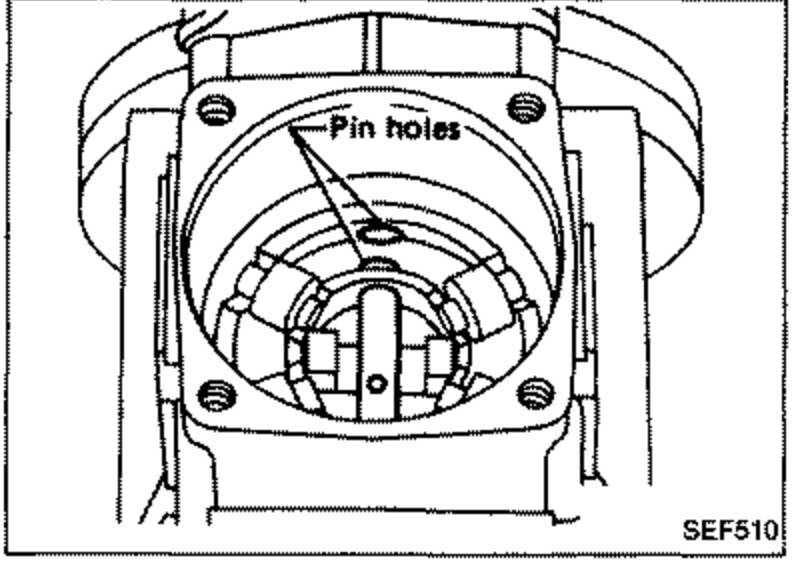

    Align holder and timer adjusting pin holes.
    Top-down view of the holder showing alignment of the holder and timer adjusting pin holes. Callout labels 'Pin holes'.
    SEF510
  4. 9

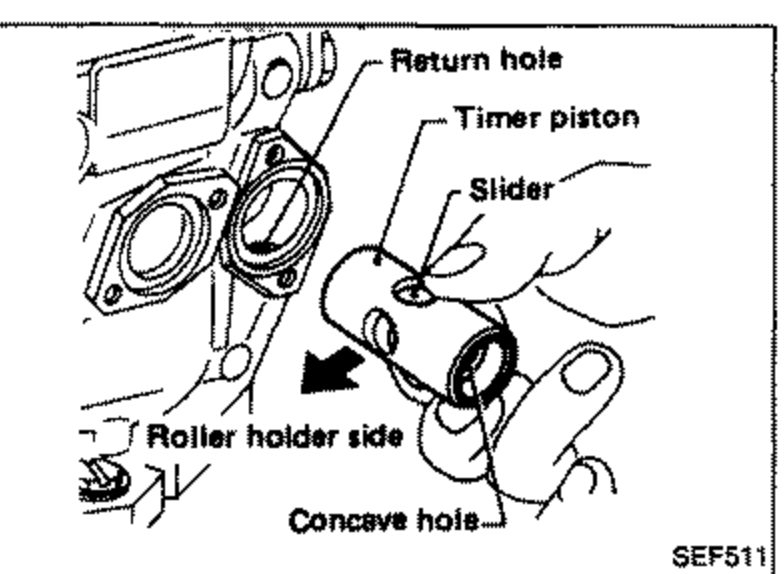

    Install timer piston and slider as a unit.
    a. Make sure hole in slider faces towards roller holder.
    b. Make sure concave hole in piston is on same side as return hole.
    Timer piston and slider installation, shown as a unit. Callouts label 'Return hole', 'Timer piston', 'Slider', 'Roller holder side' and 'Concave hole'. An arrow indicates orientation of the slider hole toward the roller holder.
    SEF511
  5. 10

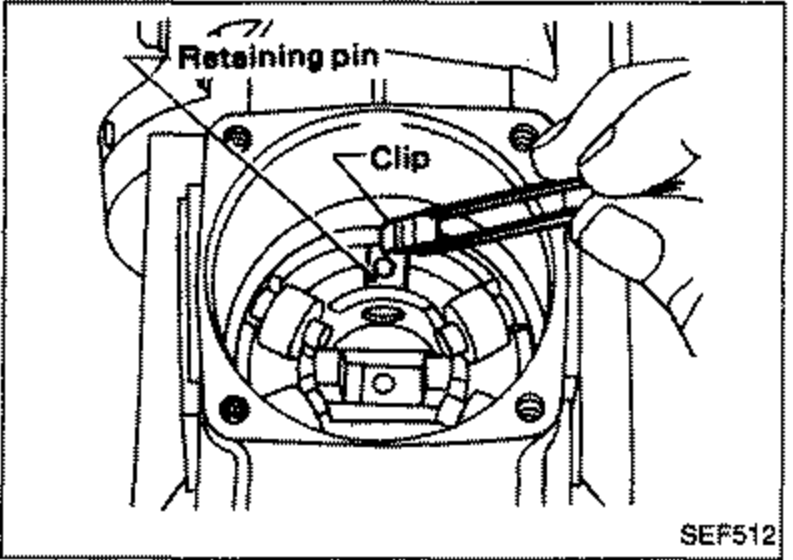

    Insert timer adjusting pin into timer piston slider, and secure with retaining pin and clip.
    Make sure timer piston moves smoothly.
    Timer adjusting pin inserted into the timer piston slider and secured with retaining pin and clip. Callouts label 'Retaining pin' (top) and 'Clip'.
    SEF512
