Engine and Emission Control Overall System - E.C.C.S. Component Parts Location (Cont'd)

EF & EC-201component photo

Applies to GA16DE engine.

E.C.C.S. Component Parts Location (Cont'd)

Component LocationFig. fig1

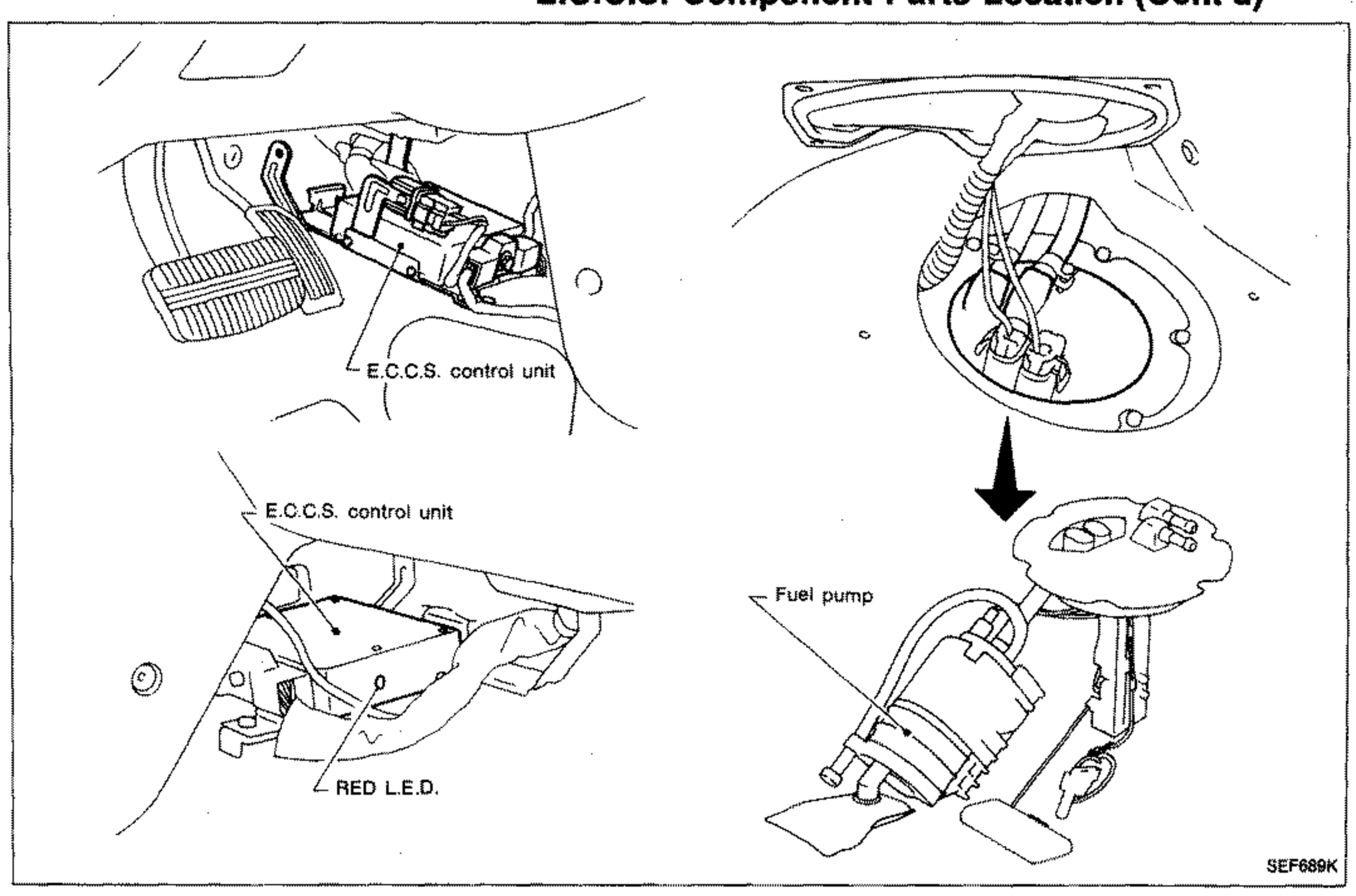

Cabin and fuel-tank locations of E.C.C.S. components: the E.C.C.S. control unit (with red L.E.D.) mounted under the dash near the accelerator pedal, and the fuel pump within the fuel tank.

Composite of four detail drawings showing E.C.C.S. component locations in the cabin and fuel tank. Top-left: E.C.C.S. control unit mounted under the dash near the accelerator pedal. Bottom-left: E.C.C.S. control unit with RED L.E.D. visible on it. Top-right: fuel tank sender/pump mounting flange with wiring and hoses. Bottom-right: fuel pump assembly removed from tank with downward arrow from the flange, callout 'Fuel pump'.

SEF689K

1E.C.C.S. control unit(under dash, near accelerator pedal)

2RED L.E.D.(on E.C.C.S. control unit)

3Fuel pump(in fuel tank)
