Engine and Emission Control Overall System - E.C.C.S. Component Parts Location

EF & EC-359component photo

Page applies to SR20DE engine.

E.C.C.S. Component Parts Location

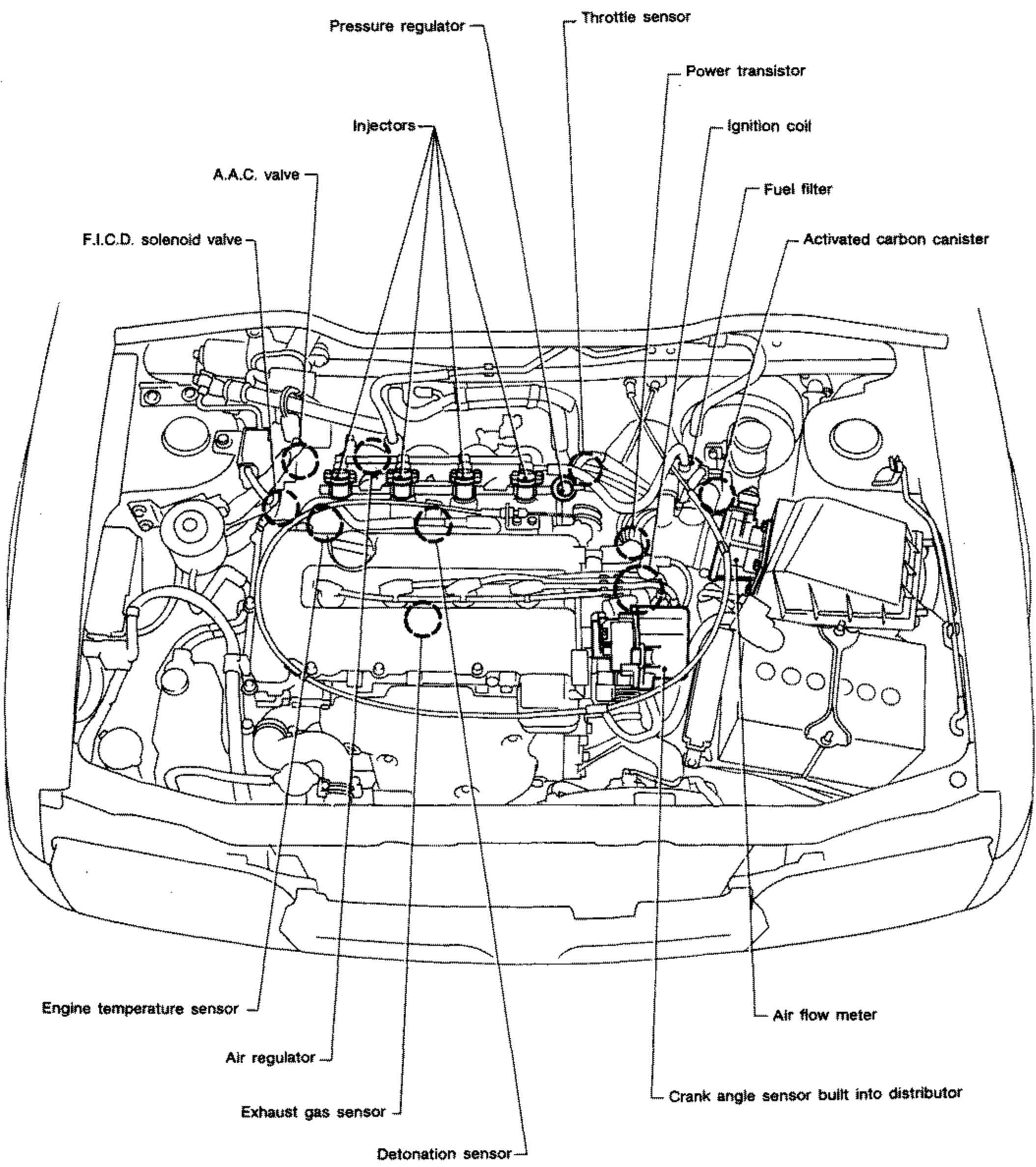

Component LocationFig. fig1

Engine compartment top view showing the location of E.C.C.S. component parts on the SR20DE engine.

SEF270L

1Pressure regulator(fuel rail, top center)

2Throttle sensor(top center-right)

3Power transistor(top right)

4Ignition coil(right)

5Fuel filter(right)

6Activated carbon canister(right side)

7Air flow meter(lower right)

8Crank angle sensor built into distributor(lower right)

9Detonation sensor(bottom center)

10Exhaust gas sensor(bottom center-left)

11Air regulator(lower left)

12Engine temperature sensor(lower left)

13F.I.C.D. solenoid valve(left)

14A.A.C. valve(left)

15Injectors(top center)
