Consult — CONSULT INSPECTION PROCEDURE

EF & EC-417prose procedure
Continued from EF & EC-416

TROUBLE DIAGNOSES

Consult

CONSULT Inspection Procedure

  1. 1
    Turn off ignition switch.
  2. 2
    Connect "CONSULT" to diagnostic connector. (Diagnostic connector is located behind the fuse box cover.)

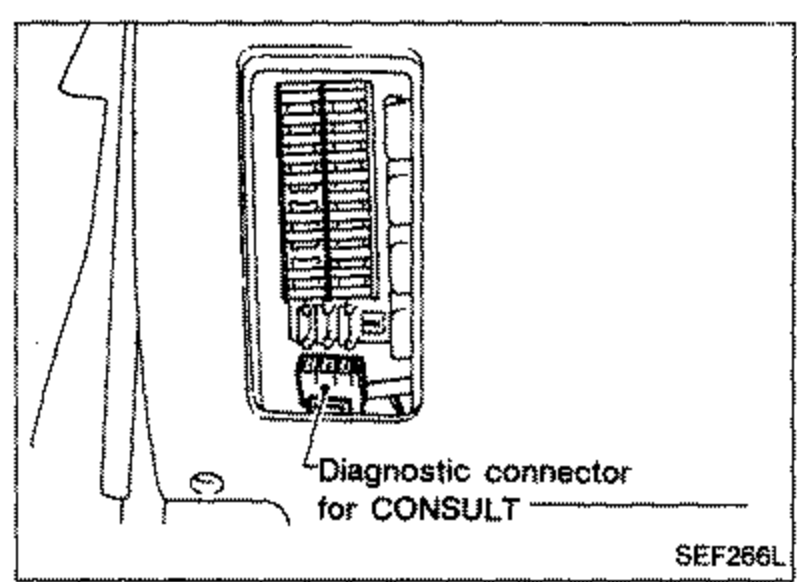

    Diagnostic connector for CONSULT shown behind a panel/fuse box cover, with a callout labeling the diagnostic connector for CONSULT.
    SEF266L
  3. 3
    Turn on ignition switch.
  4. 4
    Touch "START".

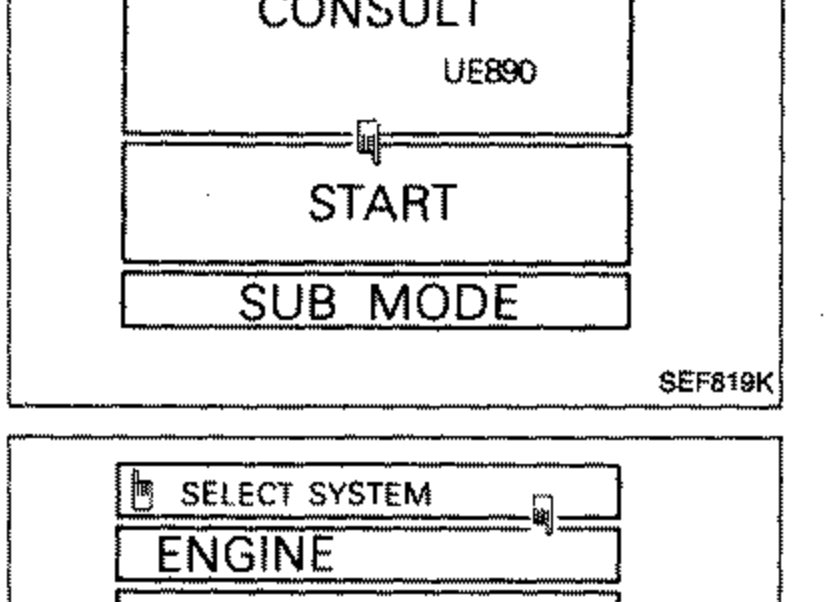

    CONSULT screen showing the NISSAN CONSULT (UE890) home menu with START and SUB MODE buttons.
    SEF819K
  5. 5
    Touch "ENGINE".

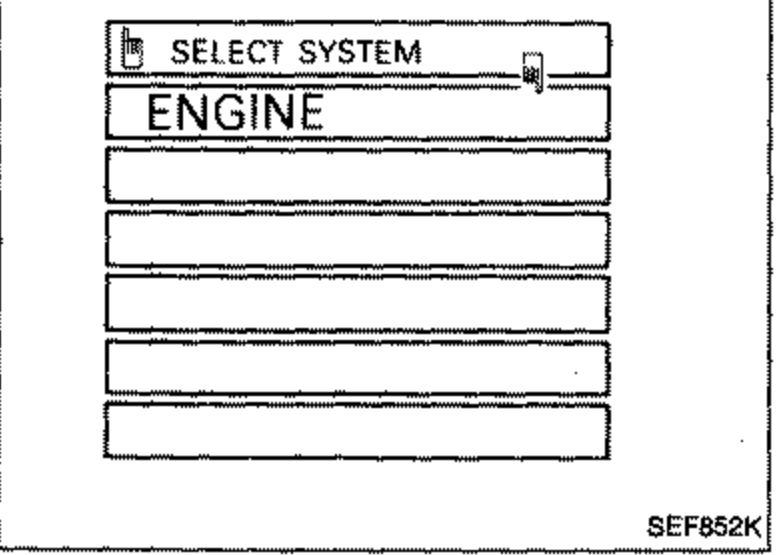

    CONSULT SELECT SYSTEM screen with ENGINE selected at the top of a list of system options.
    SEF852K
  6. 6
    Perform each diagnostic mode according to the inspection sheet as follows:
    For further information, see the CONSULT Operation Manual.

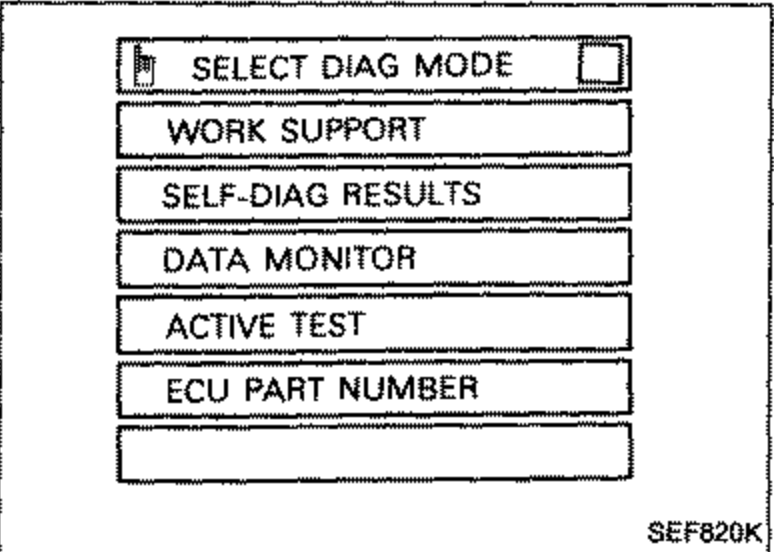

    CONSULT SELECT DIAG MODE screen listing WORK SUPPORT, SELF-DIAG RESULTS, DATA MONITOR, ACTIVE TEST, ECU PART NUMBER.
    SEF820K
