Nissan 100NX N14 silhouetteN14

Crankcase Emission Control System - Inspection (Cont'd)

EF & EC-357prose procedure

Page applies to GA16DE engine (header tag).

Continued from EF & EC-356

Inspection (Cont'd)

Ventilation Hose

  1. 1
    Check hoses and hose connections for leaks.
  2. 2
    Disconnect all hoses and clean with compressed air. If any hose cannot be freed of obstructions, replace.

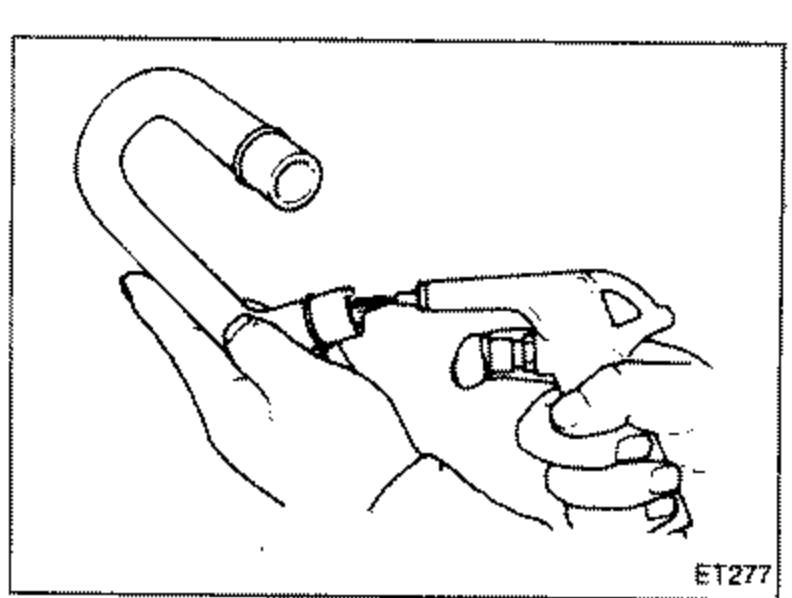

    Illustration of a hand holding an air blow gun connected to a ventilation hose, cleaning the hose with compressed air. The curved ventilation hose is shown at top.
    ET277
