Engine and Emission Control Overall System - E.C.C.S. Component Parts Location

EF & EC-200component photo

Applies to GA16DE engine.

E.C.C.S. Component Parts Location

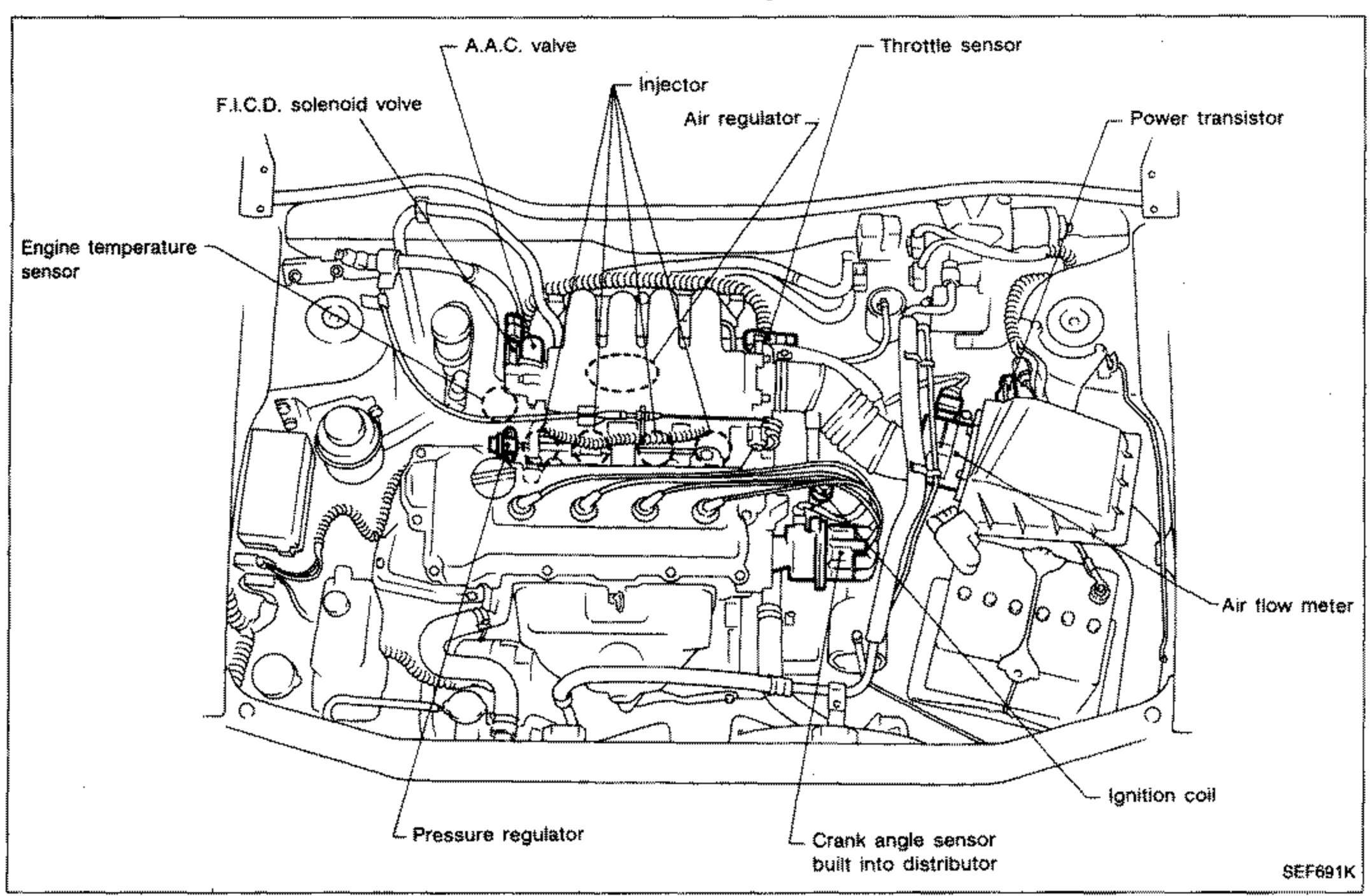

Component LocationFig. fig1

Locations of E.C.C.S. component parts on the GA16DE engine, engine bay overview.

SEF691K

1A.A.C. valve(top center)

2injector(top center)

3throttle sensor(top right)

4F.I.C.D. solenoid valve(top left)

5air regulator(top center)

6power transistor(top right)

7engine temperature sensor(left)

8air flow meter(right)

9pressure regulator(bottom center)

10crank angle sensor built into distributor(bottom center)

11ignition coil(bottom right)
