VE-TYPE INJECTION PUMP - Assembly (Cont'd)

EF & EC-682prose procedure

VE-type injection pump applies to CD20 diesel engine.

Continued from EF & EC-681

Assembly (Cont'd)

VE-Type Injection Pump Assembly (Cont'd)

  1. 18
    b. Insert ball pin for governor lever into hole in control sleeve (shown by arrow).

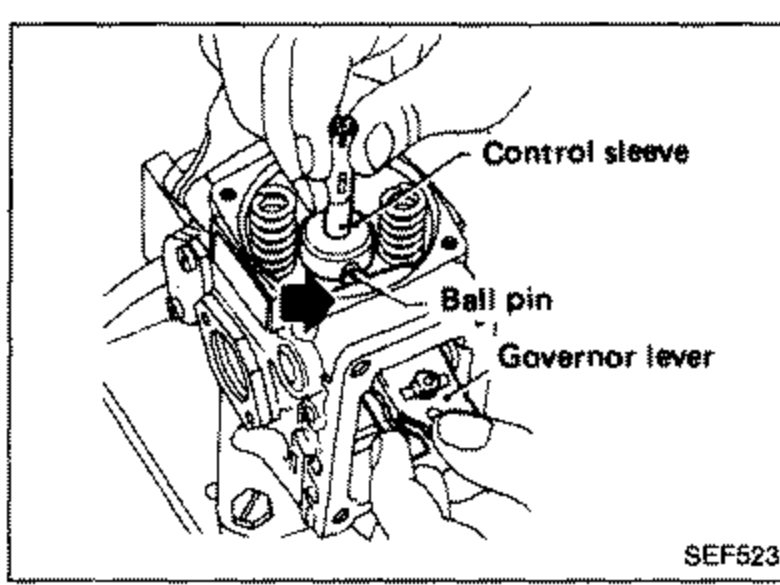

    Inserting ball pin for governor lever into hole in control sleeve (shown by arrow). Labels: Control sleeve, Ball pin, Governor lever.
    SEF523
  2. 19
    Apply a coat of grease to guide pin, shim and spring seat, and attach these parts to distributor head.

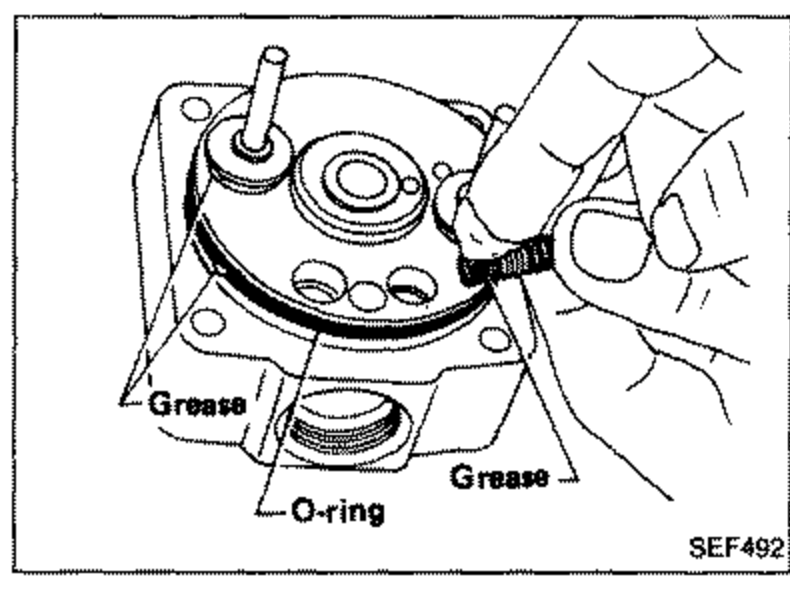

    Distributor head with grease applied to guide pin, shim and spring seat. Labels: Grease, O-ring, Grease.
    SEF492
  3. 20
    Install distributor head.
    a. Always face support spring toward governor lever.
    b. Be careful not to drop spring.
    c. Make sure ball pin for governor lever is inserted properly into hole in control sleeve.
    d. After installing distributor head, make sure plunger spring is at guide hole in spring seat.

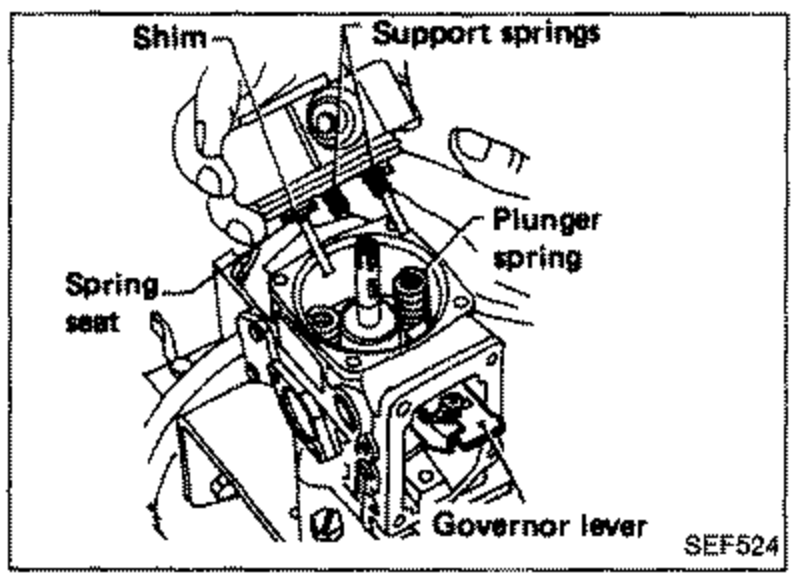

    Distributor head installation. Labels: Shim, Support springs, Plunger spring, Spring seat, Governor lever.
    SEF524
  4. 21
    Tighten distributor head.

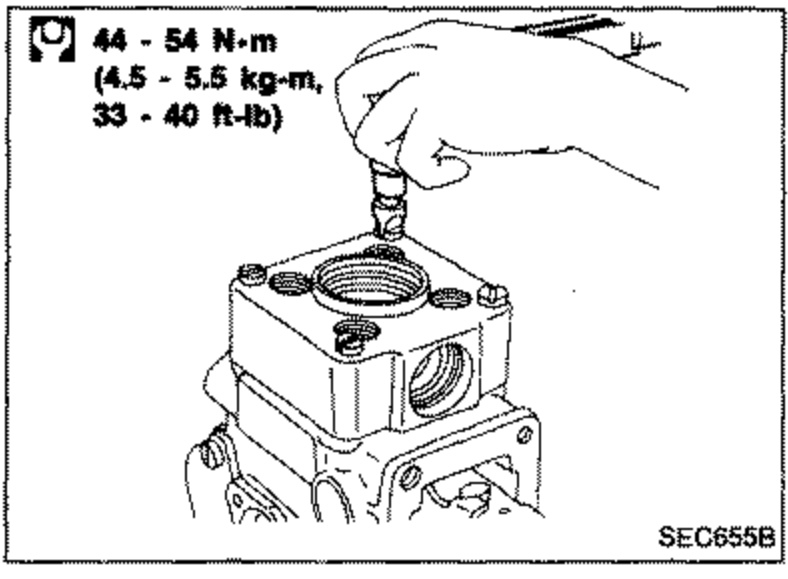

    Tightening distributor head. Torque callout: 44 - 54 N-m (4.5 - 5.5 kg-m, 33 - 40 ft-lb).
    SEC655B
  5. 22
    Attach flyweight assembly.
    When installing governor shaft, be careful not to scratch O-rings.

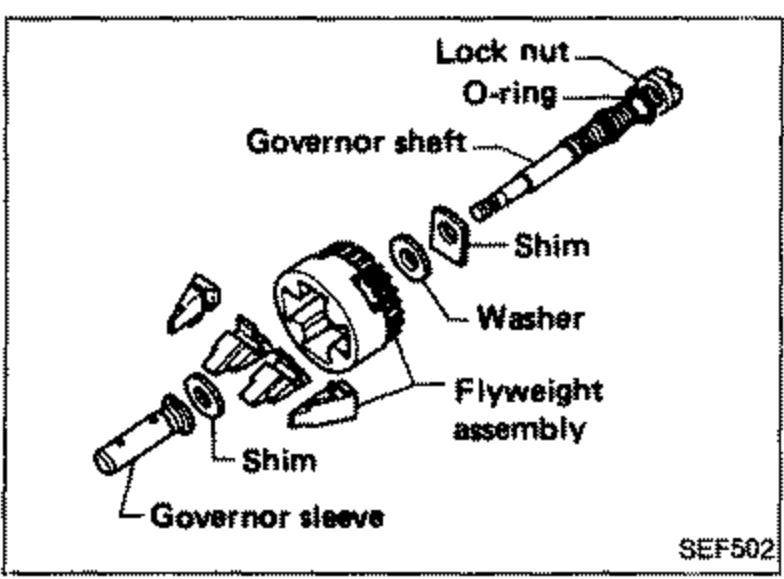

    Flyweight assembly attachment showing governor shaft. Labels: Lock nut, O-ring, Governor shaft, Shim, Washer, Flyweight assembly, Shim, Governor sleeve.
    SEF502
