FUEL INJECTION CONTROL SYSTEM INSPECTION
EF & EC-354prose procedureGA16DE engine (header tab).
Fuel Pressure Check (Cont'd)

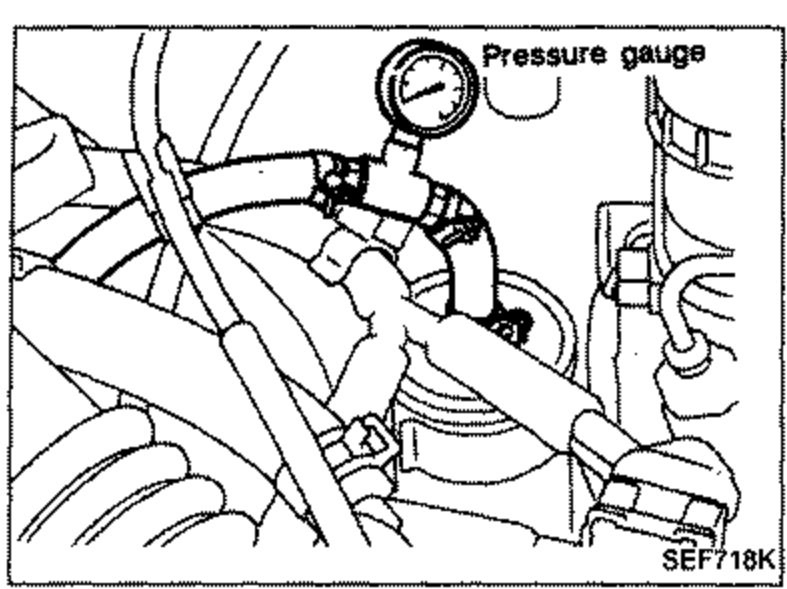

- 5Read the indication of fuel pressure gauge.At idling:When fuel pressure regulator valve vacuum hose is connected. Approximately 245 kPa (2.45 bar, 2.5 kg/cm², 36 psi)When fuel pressure regulator valve vacuum hose is disconnected. Approximately 294 kPa (2.94 bar, 3.0 kg/cm², 43 psi)
SEF718K - 6Stop engine and disconnect fuel pressure regulator vacuum hose from intake manifold.
- 7Plug intake manifold with a rubber cap.

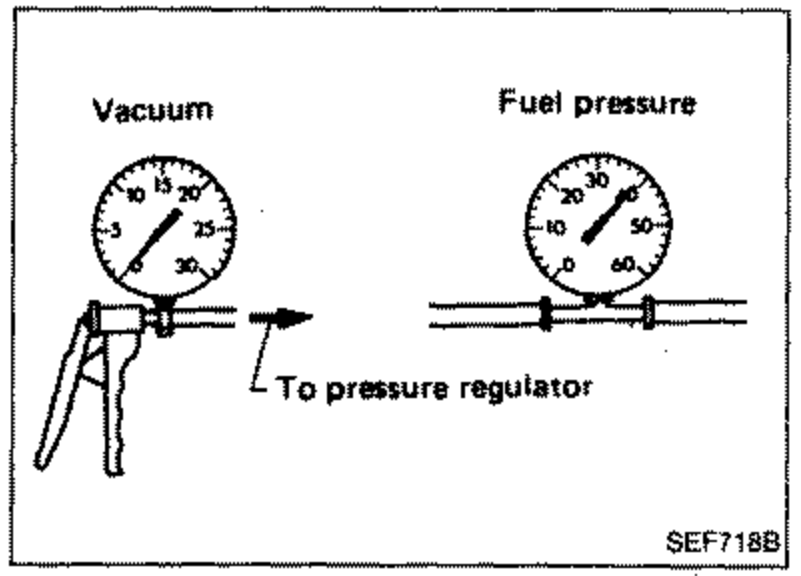

- 8Connect variable vacuum source to fuel pressure regulator.
- 9Start engine and read indication of fuel pressure gauge as vacuum is changed.Fuel pressure should decrease as vacuum increases. If results are unsatisfactory, replace fuel pressure regulator.
SEF718B
Injector Removal and Installation
- 1Release fuel pressure to zero.
- 2Disconnect injector harness connectors.
- 3Disconnect vacuum hose from pressure regulator.
- 4Disconnect fuel hoses from fuel tube assembly.

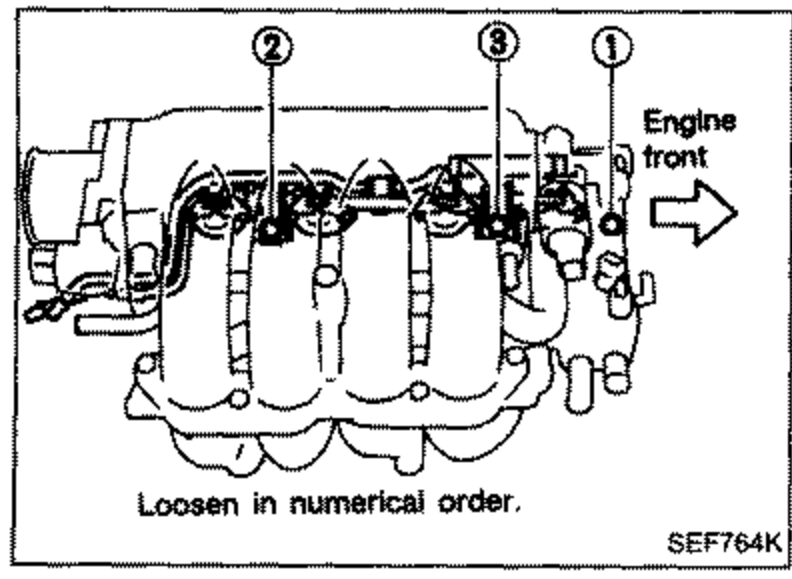

- 5Remove injectors with fuel tube assembly.Loosen in numerical order.
SEF764K
