Wiring Diagram (Cont'd)

EF & EC-207wiring diagram

GA16DE engine. Continuation of L.H.D. models wiring diagram.

Continued from EF & EC-206

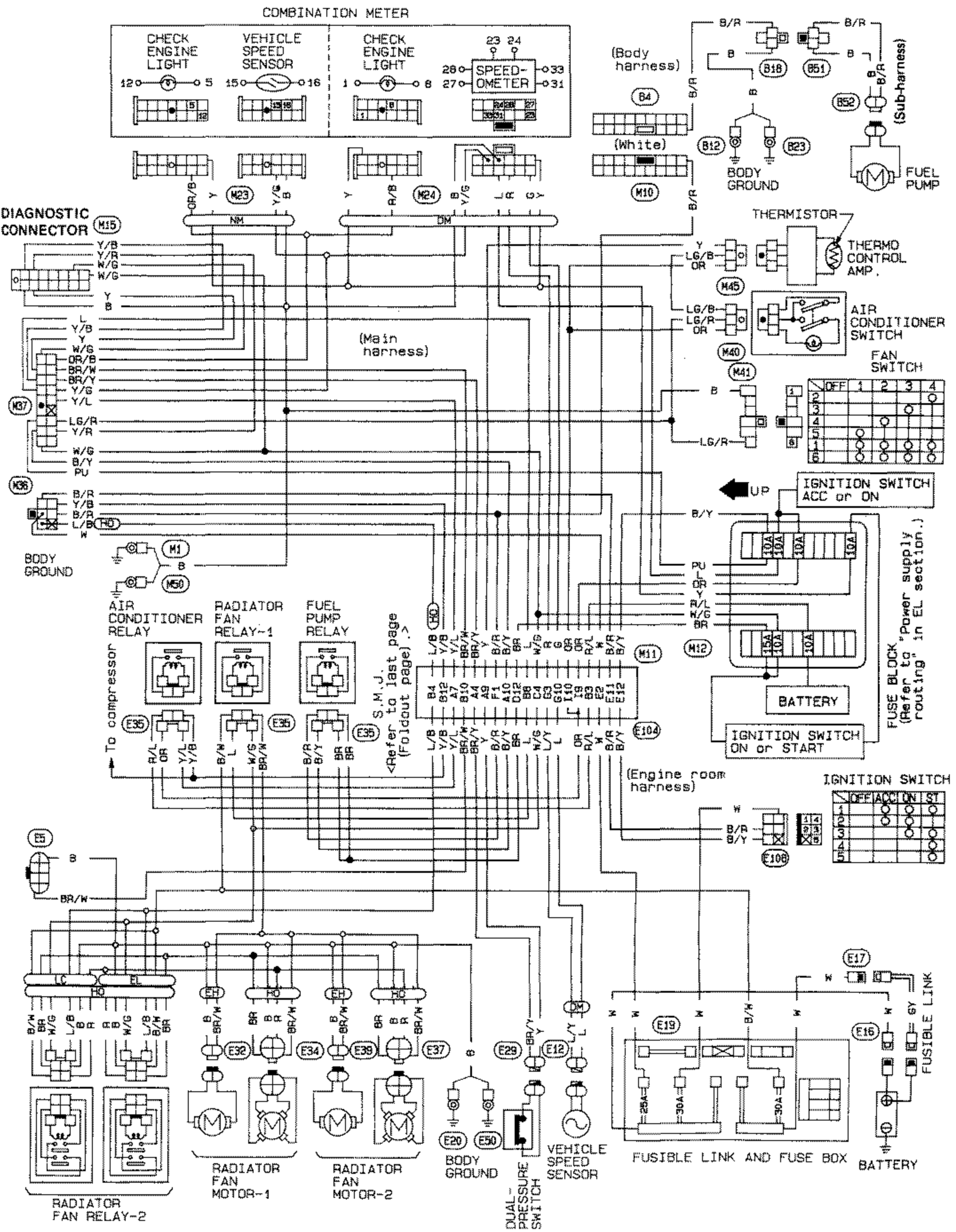

Full-page ECCS wiring diagram continuation for the GA16DE engine. Top of diagram shows the combination meter with check engine light, vehicle speed sensor, check engine light; body harness connectors; thermistor; thermo control amp; air conditioner switch; fan switch; fuel pump. Left side has the diagnostic connector and body ground. Center is the main harness routing. Lower components: air conditioner relay, radiator fan relay-1, fuel pump relay, battery, ignition switch (ACC or ON), ignition switch (ON or START), fuse block, radiator fan motor-1, radiator fan motor-2, radiator fan relay-2, body ground, vehicle speed sensor, fusible link and fuse box. Right side shows ignition switch connector grids and engine room harness.

SEF635K
