Engine and Emission Control Overall System - E.C.C.S. Component Parts Location (Cont'd)

EF & EC-362component photo

Page applies to SR20DET (turbo) engine. Includes turbo-specific wastegate valve control solenoid valve.

E.C.C.S. Component Parts Location (Cont'd)

Component LocationFig. fig1

Close-up engine compartment photos showing the physical location of E.C.C.S. components on the SR20DET (turbo) engine.

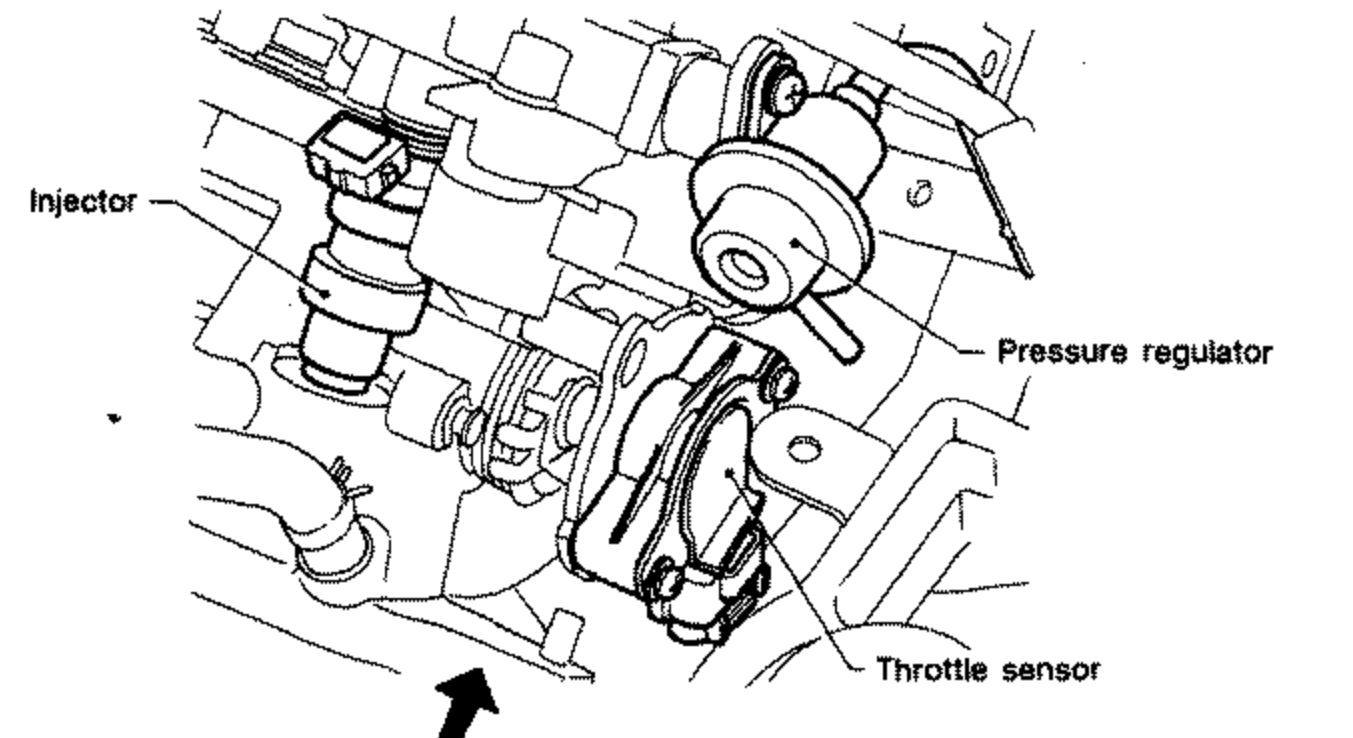

1Injector(fig1, top photo)

2Pressure regulator(fig1, top photo)

3Throttle sensor(fig1, top photo)

4Crank angle sensor built into distributor(fig2, middle-left photo)

5Ignition coil(fig2, middle-left photo)

6Power transistor(fig2, middle-left photo)

7A.A.C. valve(fig3, middle-right photo)

8F.I.C.D. solenoid valve(fig3, middle-right photo)

9Air regulator(fig3, middle-right photo)

10Detonation sensor(fig3, middle-right photo)

11Wastegate valve control solenoid valve(fig4, bottom-left photo)

12Exhaust gas sensor(fig4, bottom-left photo)

13Intake manifold(fig5, bottom-right photo)

14Engine temperature sensor(fig5, bottom-right photo)
