Electrical Components Inspection (Cont'd)
EF & EC-352prose procedureGA16DE engine (header tab).
NEUTRAL SWITCH
Check continuity between terminals (a) and (b).
Neutral Switch Continuity
Shift to Neutral
ContinuityYes
Shift to other position
ContinuityNo
If N.G., replace relay.

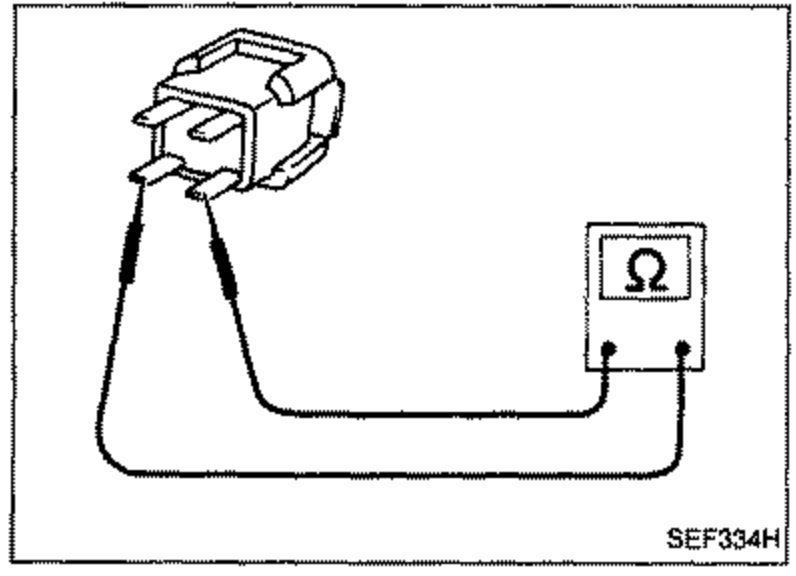

Resistor
- 1Disconnect resistor harness connector.
- 2Check resistance between terminals (a) and (b).Resistance: Approximately 2.2kΩIf N.G., replace resistor.
SEF334H

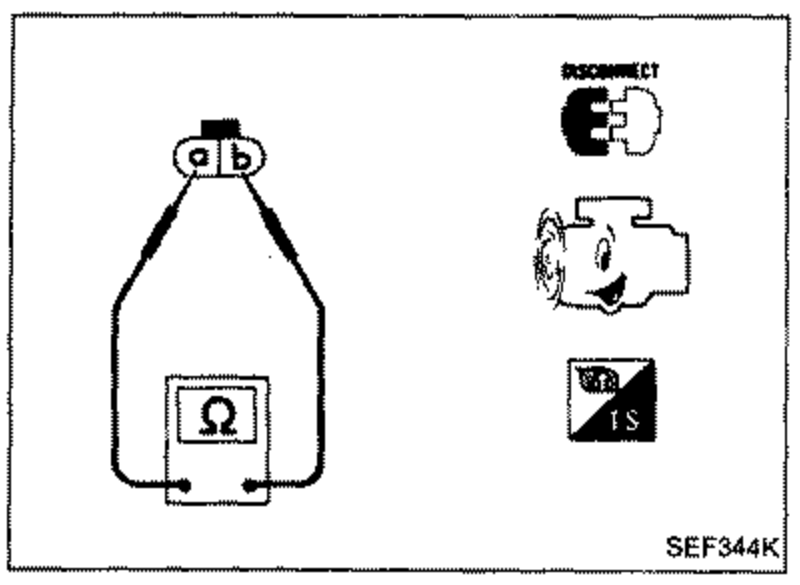

Power Steering Oil Pressure Switch
- 1Disconnect power steering oil pressure switch harness connector.
- 2Start engine.
- 3Check continuity between terminals (a) and (b).
SEF344K
Power Steering Oil Pressure Switch Continuity
Steering wheel is being turned
ContinuityYes
Steering wheel is not being turned
ContinuityNo
INHIBITOR SWITCH
Check continuity between terminals (a) and (b).
Inhibitor Switch Continuity
Shift to "P" position
ContinuityYes
Shift to "N" position
ContinuityYes
Shift to position other than "P" and "N"
ContinuityNo
If N.G., replace inhibitor switch.
