Chassis and Body Maintenance — Brake System, Brake Fluid, Brake Booster, Disc Brake

MA-62prose procedure

Rotor thickness specs vary by brake model: CL18C, CL18VD, AD22VF, AD7HA, CL9HA.

Checking Brake System

Check brake fluid lines and parking brake cables for improper attachment and for leaks, chafing, abrasions, deterioration, etc.

1
Drain brake fluid from each air bleeder valve.

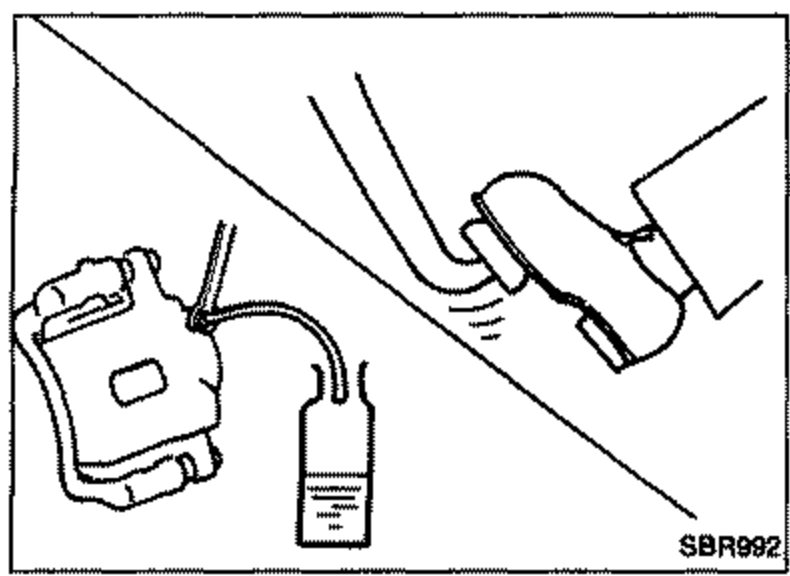

SBR992
2
Refill until new brake fluid comes out from each air bleeder valve. Use same procedure as in bleeding hydraulic system to refill brake fluid. Refer to section BR.
Refill with recommended brake fluid "DOT 3".
Never reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas.

Check vacuum lines, connections and check valve for improper attachment, air tightness, chafing and deterioration.

Check condition of disc brake components.

Check condition and thickness.

	CL18C	CL18VD	AD22VF	AD7HA	CL9HA
Standard thickness	12.0 (0.472)	18.0 (0.709)	26.0 (1.024)	7.0 (0.276)	9.0 (0.354)
Minimum thickness	10.0 (0.394)	16.0 (0.630)	24.0 (0.945)	6.0 (0.236)	8.0 (0.315)

Standard thickness

CL18C12.0 (0.472)

CL18VD18.0 (0.709)

AD22VF26.0 (1.024)

AD7HA7.0 (0.276)

CL9HA9.0 (0.354)

Minimum thickness

CL18C10.0 (0.394)

CL18VD16.0 (0.630)

AD22VF24.0 (0.945)

AD7HA6.0 (0.236)

CL9HA8.0 (0.315)
