Changing Engine Coolant (Cont'd) / Checking Cooling System

MA-19prose procedure

Coolant capacity varies by M/T vs A/T, with/without heater, 2WD vs 4WD model, and hot areas. 4WD column not applicable (—) for A/T.

14

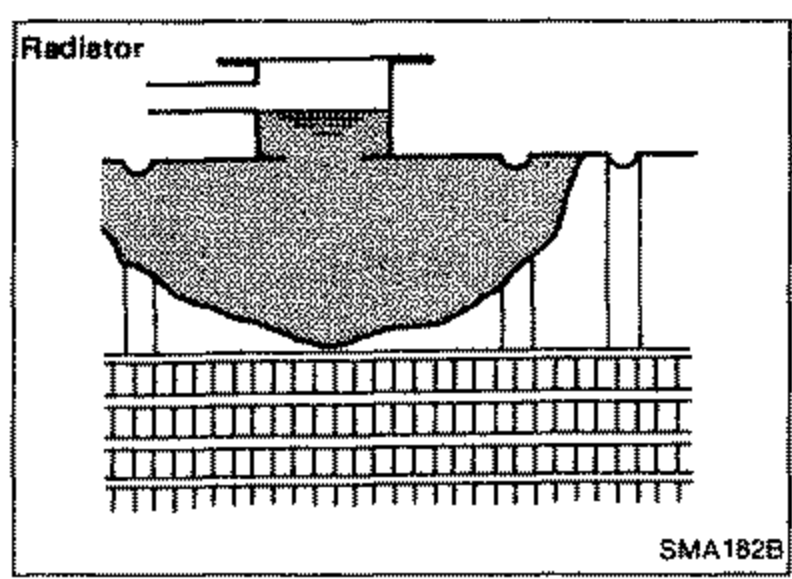

Fill radiator and reservoir tank with coolant up to specified level following step 6 through step 9. Follow instructions attached to anti-freeze container for mixing ratio of anti-freeze to water.
SMA182B

Transmission / Configuration	For 2WD model (except hot areas)	For 4WD model	For hot areas
M/T - With heater	5.3 (4-5/8)	5.5 (4-7/8)	5.5 (4-7/8)
M/T - Without heater	5.0 (4-3/8)	5.2 (4-5/8)	5.2 (4-5/8)
A/T - With heater	5.5 (4-7/8)	—	5.5 (4-7/8)
A/T - Without heater	5.2 (4-5/8)	—	5.2 (4-5/8)

M/T - With heater

For 2WD model (except hot areas)5.3 (4-5/8)

For 4WD model5.5 (4-7/8)

For hot areas5.5 (4-7/8)

M/T - Without heater

For 2WD model (except hot areas)5.0 (4-3/8)

For 4WD model5.2 (4-5/8)

For hot areas5.2 (4-5/8)

A/T - With heater

For 2WD model (except hot areas)5.5 (4-7/8)

For 4WD model—

For hot areas5.5 (4-7/8)

A/T - Without heater

For 2WD model (except hot areas)5.2 (4-5/8)

For 4WD model—

For hot areas5.2 (4-5/8)

NOTE

Unit: ℓ (Imp qt)

Reservoir tank capacity to "H" level is 0.7 ℓ (5/8 Imp qt).

Pour coolant through coolant filler neck slowly to allow air in system to escape.

Checking Cooling System

Check hoses for improper attachment and for leaks, cracks, damage, loose connections, chafing and deterioration.

Apply pressure to radiator cap with cap tester to see if it is satisfactory.

Specification	Value
Radiator cap relief pressure(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm², 11 - 14 psi)	78 - 98kPa

Radiator cap relief pressure(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm², 11 - 14 psi)

78 - 98kPa

Pull the negative-pressure valve to open it. Check that it closes completely when released.
