Engine Maintenance — Engine Coolant Change (CD)

MA-52prose procedure

CD17 and CD20 diesel engine coolant capacities.

Engine Coolant Change

Engine Coolant Change

  1. 1

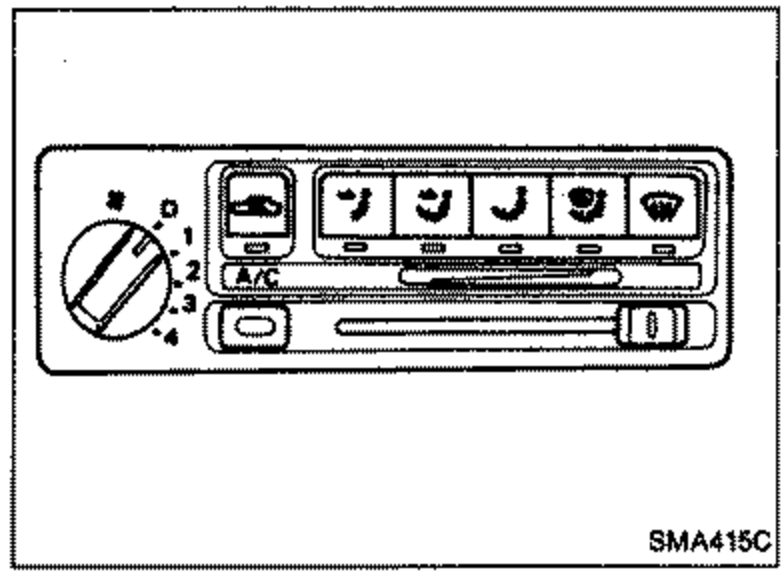

    Set heater "TEMP" control lever to the max. "HOT" position.
    Line drawing of the heater control panel showing the temperature control lever (rotary dial at left) and the fan/mode controls. Illustrates setting the heater 'TEMP' control lever to the maximum 'HOT' position.
    SMA415C
  2. 2

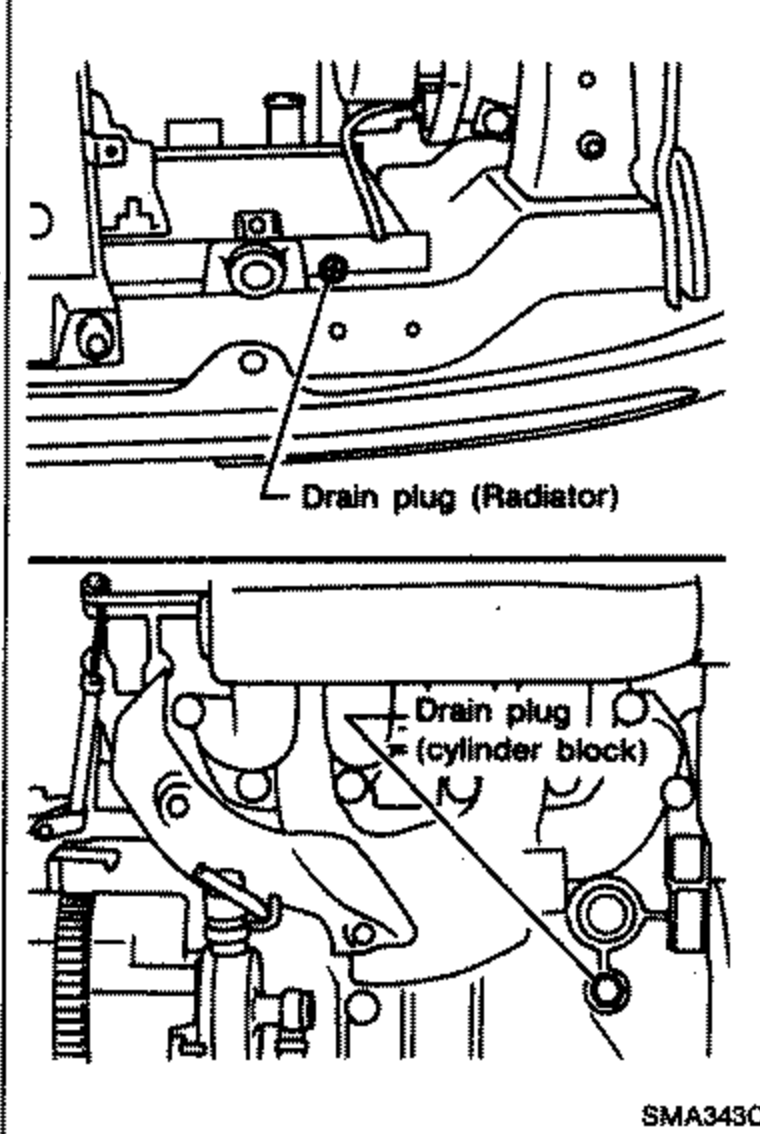

    Open drain plugs on the bottom right of radiator and on the left side of cylinder block.
    Line drawing of the engine showing two drain plug locations: 'Drain plug (Radiator)' labeled on the radiator bottom right, and 'Drain plug (cylinder block)' labeled on the left side of the cylinder block, with leader lines pointing to each.
    SMA343C
  3. 3
    Remove radiator cap and drain coolant.
  4. 4
    Close drain plugs and fill radiator with water up to filler neck.
  5. 5
    Warm up engine and repeat steps 2, 3 and 4 one or two times to drain old coolant.
  6. 6

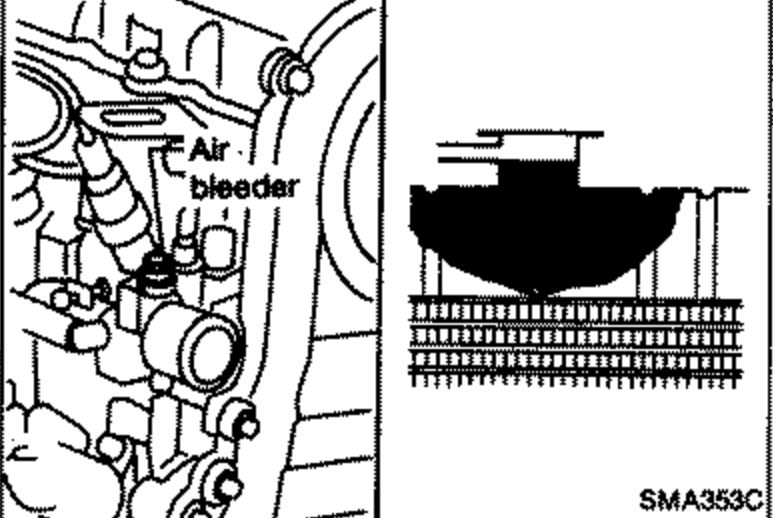

    Open air bleeder on intake manifold.
    Line drawing of the intake manifold area showing the location of the 'Air bleeder' to be opened when filling coolant, with a leader line pointing to it.
    SMA353C
  7. 7
    Fill radiator with coolant up to filler neck. Follow instructions attached to anti-freeze container for anti-freeze to water mixing ratio.
    Pour coolant slowly to allow air in system to escape.

Coolant capacity — Unit: ℓ (Imp qt)

With heater
CD176.5 (5-3/4)
CD207.1 (6-1/4)
Without heater
CD176.2 (5-1/2)
CD206.8 (6)
Reservoir tank
CD170.7 (5/8)
CD200.7 (5/8)
