Checking Cooling System (Cont'd) / Checking Fuel Lines / Changing Fuel Filter
MA-20prose procedureFuel filter change procedure differs for GA16DE models; fuse box 'Up' orientation differs for L.H.D. vs R.H.D.
CHECKING COOLING SYSTEM FOR LEAKS
Apply pressure to the cooling system with cap tester to check for leakage.
| Specification | Value |
|---|---|
| Testing pressure(1.57 bar, 1.6 kg/cm², 23 psi) | 157kPa |
Testing pressure(1.57 bar, 1.6 kg/cm², 23 psi)
157kPa
CAUTION
Higher pressure than the specified value may cause damage to radiator.
Checking Fuel Lines
Inspect fuel lines and tank for improper attachment and for leaks, cracks, damage, loose connections, chafing and deterioration.
If necessary, repair or replace faulty parts.
CAUTION
Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber hose clamps.
Ensure that screw does not contact adjacent parts.
Changing Fuel Filter
GA16DE MODELS
WARNING
Before removing fuel filter, release fuel pressure from fuel line to eliminate danger.
Changing Fuel Filter (GA16DE Models)

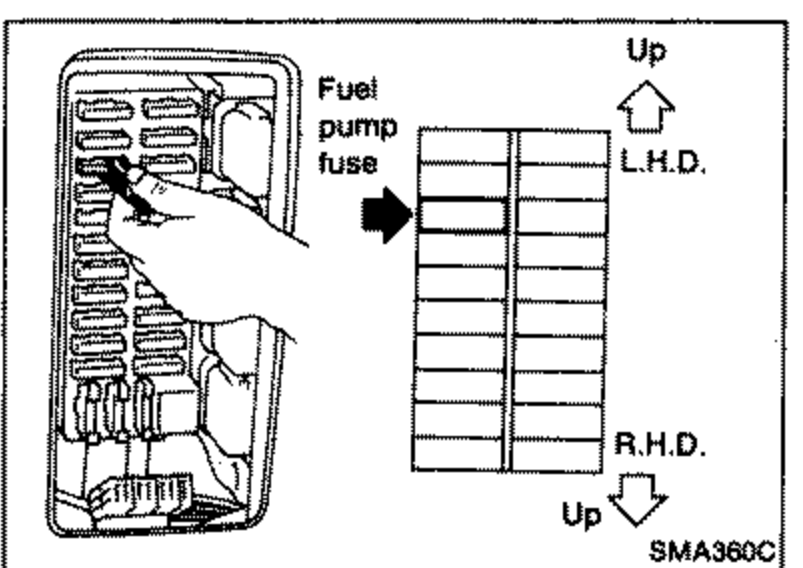

- 1Remove fuse for fuel pump.
SMA360C - 2Start engine.
- 3After engine stalls, crank engine two or three times to make sure that fuel pressure is released.
- 4Turn ignition switch off and install fuse for fuel pump.
